UP31A Medium-deep Hole Mining Rig
Product Description
UP31A medium-and long-hole mining drill rig has a minimum tunnel size of 2X2.8m, which meets the minimum 3.2m high mining tunnel operation. It can drill 360° annular blastholes and parallel holes with a maximum spacing of 1.7 meter s. The four-wheel drive articulated chassis is suitable for various small and medium-sized tunnels. The diesel-driven walking system can quickly transfer between mining areas. The independently developed high-frequency and high-pressure fully hydraulic rock drill has excellent performance, fast drilling speed, good hole straightness, and low cost of us 1. It is the first choice for mining.

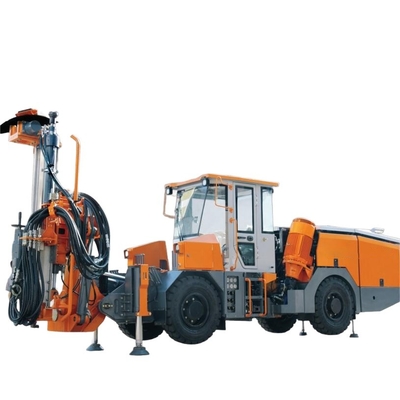

Product Picture
Technical Parameter
| Hole diameter range (mm) | 64-102 |
| Drilling depth Max.(m) | 38 |
| Hole depth (m) | 20 |
| Drill rod size(mm) | T45 *915 |
| Working face width x height(m) | 6100x3800 |
| Turning radius(mm) | inner R2,650 / outer R5,000N |
| Dimensions (Lx W x extension H)mm | 9200x1700x2700 |
| Weight(T) | ≤14T |
| Rock Drill (Drifter) | |
| Model | ZY104MZ |
| Percussion power(Kw) | 20 |
| Percussion frequency(Hz) | 60 |
| RPM(rpm) | 0-140 |
| Maximum torque(N.m) | 860 |
| Weight(Kg) | 184 |
| Air Compressor | |
| Model | ZGHA 56Ⅱ |
| Rated pressure (bar) | 7 |
| F.A.D (m3/min) | 1 |
| Diesel Engine | |
| Model | B3.9CS4-C110(Cummins) |
| Rated power(Kw) | 75 |
| RPM(r/min) | 2200 |
| Electric Motor | |
| Power(Kw) | 55 |
| Voltage(V) | 380 |
| Cable length(m) | 80 |
| Feed | |
| Total length(mm) | 3100 |
| Travel length (mm) | 1370 |
| Extension length(mm) | 900 |
| Tramming | |
| Tramming speed (km/h) | 12 / 4.5 |
| Gradeability (°) | 15 |
| Articulated steering angle(°) | ±41 |
| Service brake | 2 independent circuits |
| Hydraulic jacks | 4 (front jacks fixed) |
| Fuel tank capacity(L) | 63 |
| Ground clearance (mm) | 300 |
| Boom | |
| Parallel holding | Parallel swing |
| Parallel distance(mm) | 1700 |
| Boom swing angle(°) | ±45 |
| Boom tilt angle(°) | +30 / -70 |
| Feed roll-over(°) | 360 |
| Water system | |
| Flow rate (L/min) | 100 |
| Pressure (bar) | 14 |
| Min. water inlet pressure(bar) | 2 |
