UJ33 Drilling Jumbo
Product Description
UJ33 is designed for construction and excavation of underground facilities such as highway,railway,hydro power and tunnel etc. It configured with three heavy duty booms plus a service platform, elevating cab, self-reeling and in winding reels for electric cable and water hose, automatic grease lubrication system for easy operation and maintenance. The two outer drill booms are equipped with an eagle-type extendable seat, and an optional automatic drill rod handling function is also available, which is suitable for the excavation and bolting operation of larger section tunnels. The full hydraulic piloy proportional control method is adopted, which is characterized by precise control and low failure rate. A high frequency hydraulic rock drill was installed to meet the customer's high penetration rate demanding.

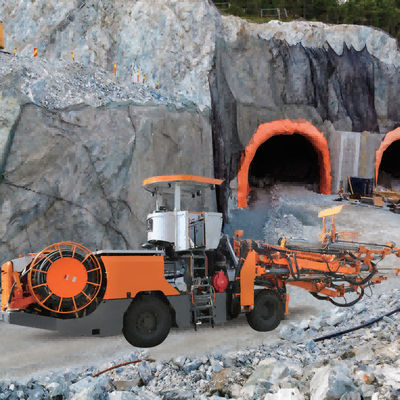

Product Picture
Technical Parameter
| Main Technical specifications | Drifter | ||||
| Hole Range (mm) | 41-89 | Cooling system type | Water cooling | Model | ZY104M |
| Hole depth(mm) | 5270 | LxW x H-roof down/up(mm) | 16976×2930×3159/3859 | Impact power(kW) | 20 |
| Drill Pipe(mm) | T38-H35-R32/5525 | Turning radius(inner/outer)mm | Inner R6500,outer R12100 | Rotation torque(Max.)(N.m) | 680 |
| Drilling coverage area(㎡) | 180 | Face size (W x H)(m) | 16.3×13.2 | Impact frequency(HZ) | 60 |
| Total weight(T) | ≤50T | Hydraulic system pressure(bar) | 210 | ||
| Feed | Electric motor | Rotation speed(rpm) | 0-340 | ||
| Total length(mm) | 7244 | Rate Power (kW) | 55*3 | Flow rate ( L/min ) | 66 |
| Feeding length(mm) | 5270 | RPM ( rpm ) | 1475 | Rotation system | Separate rotation |
| Feed extension(mm) | 1800 | Frequency (Hz) | 50 | Adapt to rock hardness | M.M. P hardness f=20or less |
| Lift force (kN) | 20 | Voltage(V) | 380 | Penetration rate (m/min) | 2 |
| Screw air compressor system | Diesel engine | Tramming | |||
| Pressure(bar) | 8 | Model | B6.7CS4-240C | Tramming speed(km/h) | 17/10/5 |
| FAD (m3/min) | 1 | Rate Power (kW) | 177 | Traction force( kN) | 150 |
| Boom | Gradeability(°) | 15 | |||
| Penetration rate (m/min) | 3 | Boom lift angle ( max.)(°) | +68/-45 | Rear axle oscillation( ° ) | ±8 |
| Boom extension(mm) | 1600 | Feed tilt (°) | +3/-90 | Tramming brake | Two independent loops |
| Boom swing angle(max.)( ° ) | ±45 | Feed beam roll over(°) | 360(Spiral) | Ground clearance(mm) | 397 |
| Service platform | Boom lifting angle | ||||
| Type | Mixed coordinate system | Boom swing angle(°) | ±45 | Pump | Variable displacement pump |
| Parallel holding | Total | Boom lifting angle(°) | +60/-35 | System pressure(bar) | 230 |
| Boom extension(mm) | 5000 | Rated load (Kg) | 600 | Hydraulic tank capacity(L) | 900 |
| Chassis | Filtration accuracy (μm) | 10 | |||
| Type | Rear axle steering | Steering system Hydrostatic | Power Steering System | Water system | |
| Steering angle (°) | -0.76 | Approach angle&departure angle(°) | 15 | Booster pump | Centrifugal |
| Cab | Elevating cab | Hydraulic oil tank(L) | 150 | Flow rate ( L/min ) | 300 |
| Electric system | Working pressure ( bar ) | 17 | |||
| Cable reel capacity (m) | 100 | Control system voltage(V) | 24 | Min.water inlet pressure ( bar) | 2 |
