UJ18A Jumbo
Product Description
UJ18A Jumbo, the minimum passing size is 1.8mx1.8m, which can meet the excavation and bolting operations of 2mX2m and above tunnels. It is very suitable for mining excavation and small tunnel construction in low and narrow tunnels. It adopts a pilot proportional hydraulic system, four-wheel independent drive, and an articulated floating chassis. It can be applied to various rugged road conditions and quickly reach and evacuate the face. The independently developed high frequency hydraulic rock drill has excellent performance, high drilling efficiency, low cost, shortened drilling operation time, and reduced consumption. It is the best choice for all narrow veins and low tunnels.

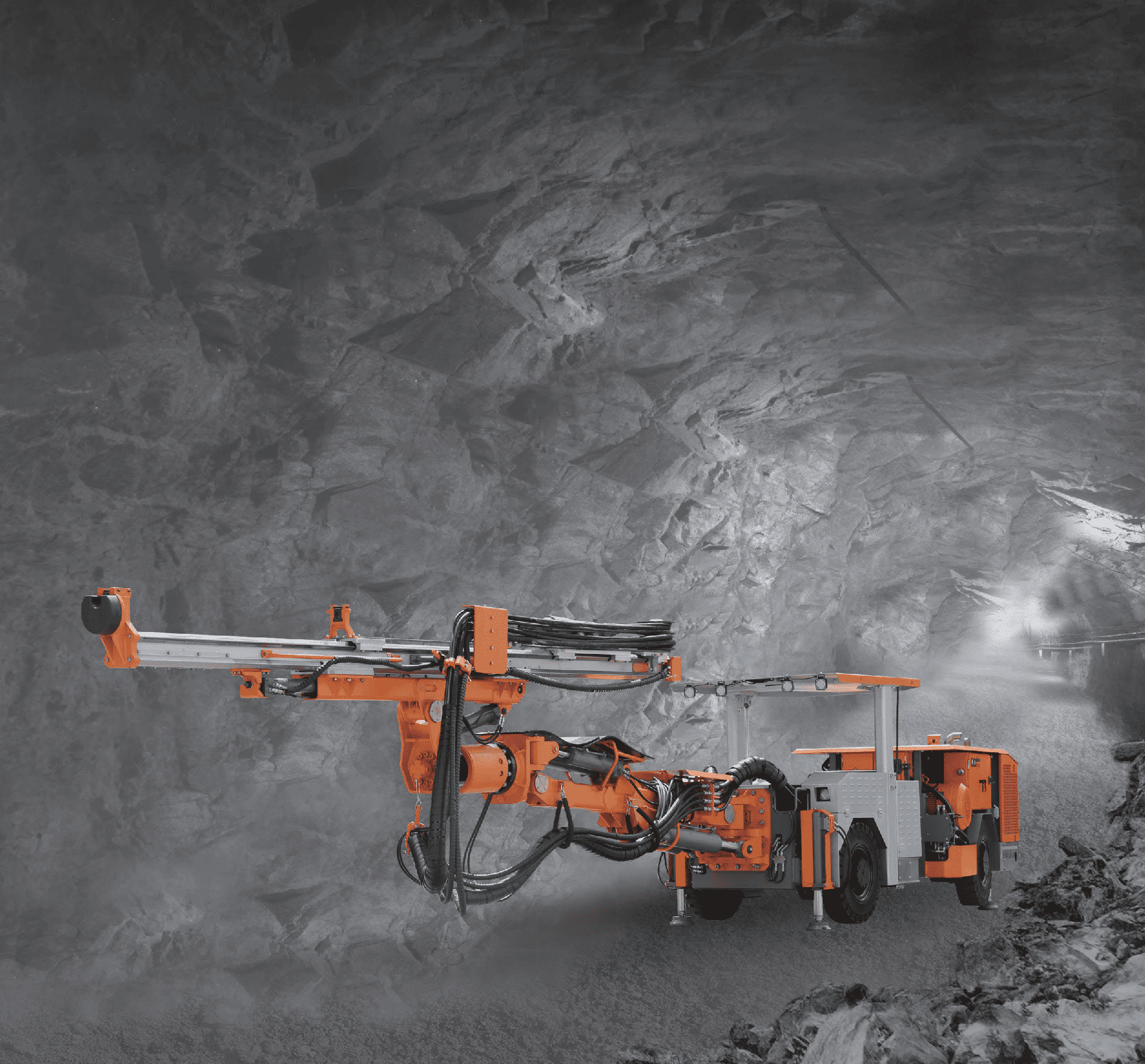

Product Picture
Technical Parameter
| Hole diameter range (mm) | 41-89 |
| Hole depth(mm) | 2830/3440/4050 |
| Drill rod size & length(mm) | (R32,T38) 3090/3700/4305 |
| Face size (W x H)(m) | 5.6*4.34/6.33*5.72(Extension boom optional) |
| Drilling coverage area(m2 ) | 24/36(Extension boom optional) |
| Turning radius(mm) | inner R2900,outer R4800 |
| Weight(T) | ≤11T |
| Dimension(LxWxH-Extension boom) mm | 12485×1500×1620( down) / 2030(up) |
| Drifter | |
| Model | ZY104M |
| Impact power(Kw) | 20 |
| Max. torque(N.m) | 750 |
| Rotation speed(RPM) | 215 |
| Impact frequency(Hz) | 60 |
| Impact pressure(bar) | 210 |
| Noise level dB(A) | ＜106 |
| Adapt to rock hardness | f≤15 |
| Air compressor | |
| Working pressure(bar) | 8 |
| Rated FAD (m3/min) | 0.4 |
| Diesel engine | |
| Brand/Model | Yuchai YCF36100-T480 |
| Rated Power(kW) | 73.5 |
| Rotation speed(r/min) | 2400 |
| Torque(N.m) | 350/(1800~2200rpm) |
| Electric motor | |
| Rated power(kW) | 55 |
| Working RPM | 1480 |
| Frequency (Hz) | 50 |
| Startup Type | Star/Delta Unload Start |
| Voltage(V) | 380 |
| Current(A) | 116 |
| Aluminum alloy propulsion beam | |
| Total length(mm) | 4890/5500/6110 |
| Feeding length(mm) | 2830/3440/4050 |
| Extension length (mm) | 1800 |
| Tramming | |
| Type | Wheel reducer + four-wheel drive |
| Hydraulic system | Open system |
| Tramming speed (km/h) | 7 / 4 |
| Max traction force(KN) | 50 |
| Boom | |
| Type | Composite coordinate system |
| Number of drilling arms | 1 |
| Parallel holding | Complete |
| Boom extension (mm) | 0/1200(Optional) |
| Water system | |
| Flow rate (m3/h | 2 |
| Pressure(bar) | 11.2 |
| Min inlet pressure(bar) | 2 |
| Hydraulic system System pressure(bar) |
240 |
| Hydraulic oil tank (L) | 260 |
Our Company & Servce
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
