UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine

1 set
MOQ
340000-390000USD Per set
Price
UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Keyword: Face Drilling/Bolting Rig
Hole Diameter Range: 41-102 Mm
Hole Depth: 5270 Mm
Drill Rod Size & Length: T38-H35-R32*5525 Mm
Total Length: 7244 Mm
Feeding Length: 5270 Mm
Extension Length: 1,800 Mm
Boom Lifting Angle: +68 / -45°
Boom Extension: 1,600 Mm
Dimension(LxWxH-roof Down/up): 15,294*2,300*3,147mm
Highlight:

Full hydraulic underground drill rig

,

blasthole drill machine underground drill rig

,

face drilling rig underground drill rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE and others
Model Number: UJ21DH
Payment & Shipping Terms
Packaging Details: Seaworthy package
Delivery Time: 25-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 set per month
Product Description

UJ21DH FACE DRILLING RIG



Product Description

UJ21DH full diesel-powered face drilling rig is suitable for underground mines and construction projects without grid power supply, and is widely used in face drilling and bolting drilling and other applications. Sophisticated and stylish figures, configurations and system controls provide users with a premium drilling experience. Based on safety considerations, the chassis and fully enclosed liftable air-conditioned cab increase the coverage and give the operator better comfort under the premise of ensuring safety; UJ21DH minimum drift pass size: 3x3.5m (W x H); maximum face drilling coverage: 13x9.7m (W x H); maximum bolting operation coverage: 17x13.4m (W x H); dual triangular suspension support boom ensuring accurate hydraulic parallel holding in all directions; the increased coverage and structural design with high-strength new materials have stronger bearing capacity and better rigidity, avoiding the positioning shaking problem caused by material bending, and can meet the needs of different positioning angles.

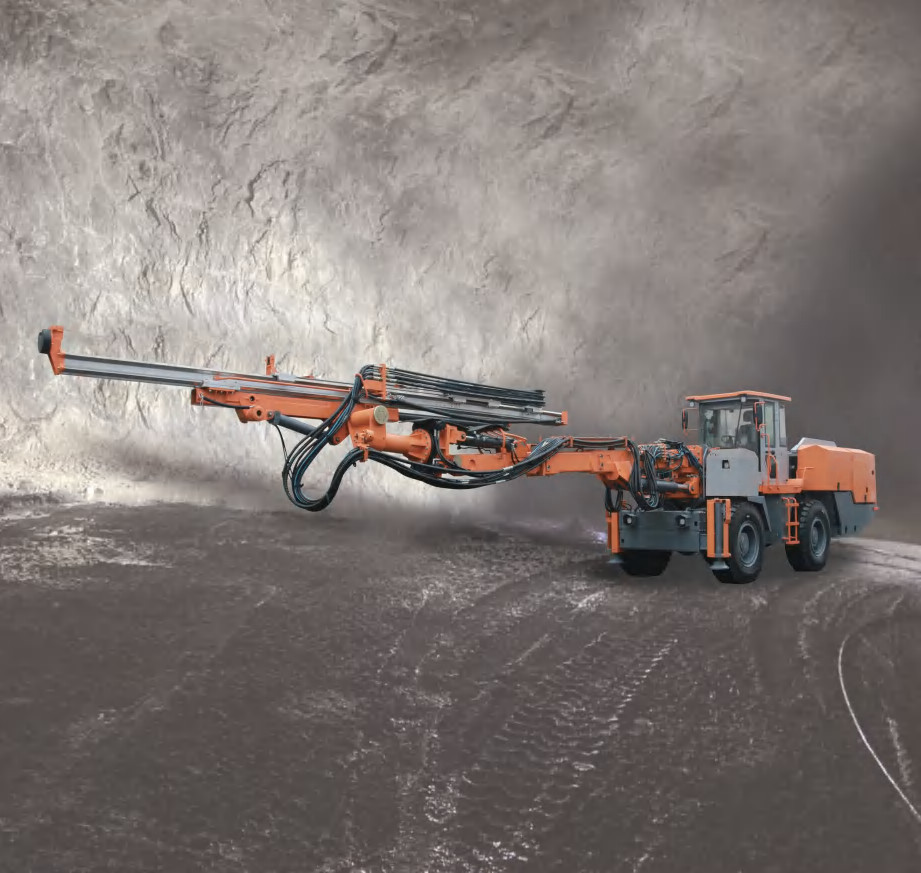

Product Picture

UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine 0





Technical Parameter

Hole diameter range(mm) 41-102
Hole depth (mm) 5,270
Drill rod size & length(mm) T38-H35-R32*5,525
Face drilling tunnel size (H x W) (m) 11.9×9.5
Bolting tunnel size (m) 19.3×13.2
Drilling coverage area (m2) 96(Face drilling)/116(Bolting)
Turning radius (mm) inner R3,321 / outer R6,450
Dimensions(L×W×H)(mm) 15,294×2,300×3,147
Weight(T) ≤18
Drifter
Model ZY104M
Impact power(kW) 20
Max. torque(Nm) 680
Impact frequency (Hz) 60
Rotation speed (rpm) 0-340
Weight (Kg) 170
Air compressor
Model Screw air compressor
Working pressure (bar) 10
Rated FAD 106CFM
Diesel engine
Model Deutz Euro-Stage V
Rated power 215Hp(2200rpm)
RPM (r/min) 2200
Feed
Total length (mm) 7244
Feeding length (mm) 5270
Extension length (mm) 1800
Tramming
Tramming Speed (km/h) Forward 36/24/12/7;reverse 28/8.5
Gradeability (degree) 15°
Articulated steering angle (degree) ±34°
Ground clearance (mm) 400
Hydraulic jacks 4 EA
Fuel tank volume (L) 440
Boom
Parallel holding Complete
Boom swing angle L / R (degree) ±45°
Boom lifting angle (degree) +68°/-45°
Feed tilt angle (degree) +3/-90
Feed roll-over (degree) 360 (Spiral)
Boom extension (mm) 1600
Water system
Flow rate (L/min) 23
Water tank capacity (L) 900
Cooling system Air cooling



Our Company & Servce

UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine 1

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine 2



UJ21DH Full Hydraulic Underground Drill Rig Face Drilling Rig Blasthole Drill Machine 3



FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
