UM21K BOLTINNG RIG
Product Description
UM21K is a multifunctional fully hydraulic bolt drilling rig used for underground mines and small and medium-sized underground bolts support construction. It can be used for pipe seam and resin bolts operations. Its minimum passability is about 2.2 meters wide and 2.8 meters high, and it can adapt to tunnel section operations covering 3.5X3.5 meters to 7X7 meters.

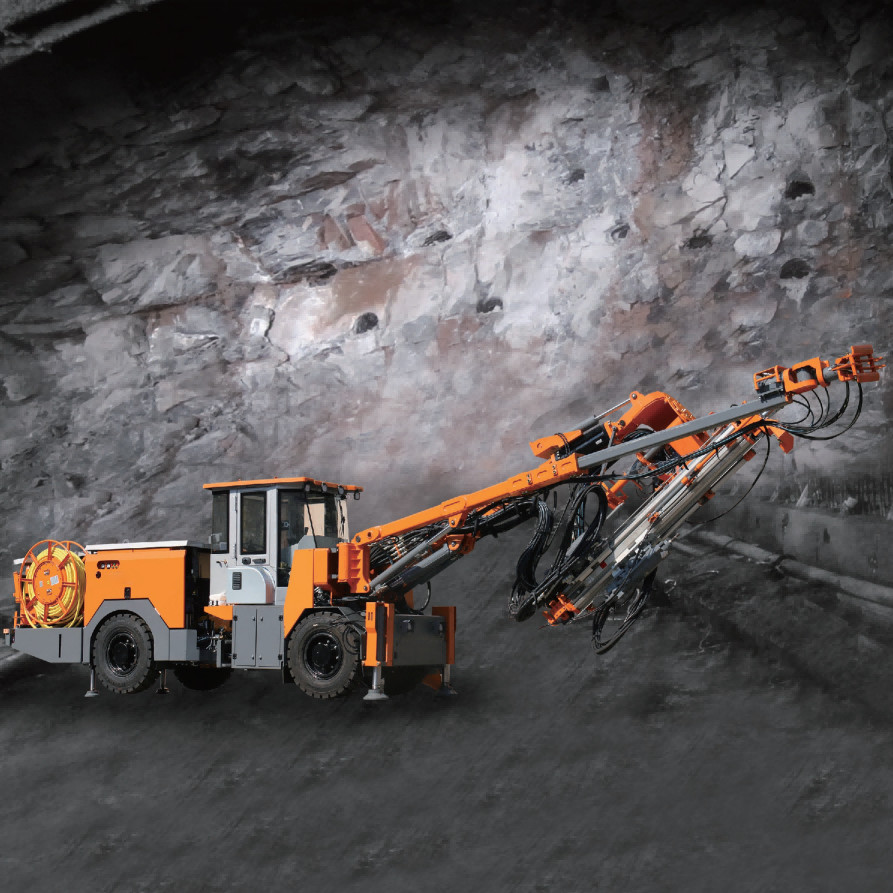

Product Picture
Technical Parameter
| Hole diameter range (mm) | 32-51 |
| Hole depth (mm) | 2,050 |
| Drill rod size& length (mm) | R32-H25-R25/2,175 |
| Bolt length (mm) | 1,800 |
| Service coverage WxH(m) | 8.5x7 |
| Turing Radius(mm) | inner R2,890/outer R6,000 |
| Dimension(LxWxExtension H)mm | 10,700x1,900x2,700 |
| Weight(T) | ≤15T |
| Rock Drill (Drifter) | |
| Model | ZY103 |
| Percussion power(kW) | 15 |
| Percussion rate (Hz) | 60 |
| Rotating spead (rpm) | 0-192 |
| Max. torque (N.m) | 800 |
| Weight(Kg) | 150 |
| Air Compressor | |
| Model | Screw |
| Pressure (bar) | 8 |
| F.A.D (m3/min) | 1 |
| Diesel engine | |
| Model | B3.9-C100-31(Cummins) |
| Rated power (kW) | 74 |
| RPM(r/min) | 2200 |
| Electric motor | |
| Rated power (kW) | 45 |
| Voltage (V) | 380 |
| Cable length (m) | 80 |
| Feed | |
| Total length (mm) | 3,410 |
| Travel length (mm) | 2,100 |
| Extension length (mm) | 480 |
| Maximum propulsion force(KN) | 20 |
| Tramming | |
| Tramming speed (km/h) | 7 / 20 |
| Gradeability(°) | 15 |
| Rear axle swing (°) | ±10 |
| Service brake | 2 independent circuits |
| Ground clearance(mm) | 200 |
| Carrier | |
| Hydraulic jacks | 4 (front jacks retractable) |
| Fuel tank capacity(L) | 280 |
| Boom | |
| Type | Mixed Coordinates |
| Number of Boom | 1 |
| Parallel mechanism | None |
| Boom Extension length(mm) | 1200 |
| Water system | |
| Flow rate (L/min) | 66 |
| Pressure (bar) | 13 |
| Min.water inlet pressure(bar) | 2 |
