UJ21M Bolting Rig
Product Description
UJ21M is a multi- function full hydraulic bolting rig used for bolt support construction of large and medium- sized tunnels such as underground rods and railways. A three station integrated bolt system is installed on a multi-function drill boom, and drilling, grouting and anchoring can be completed together; a service platform for auxiliary work meets bolt installation requirements of most modern tunnel projects. The grouting system with measurement,etc.,for accurate grouting amount setting and measurement and for easy data downloading.

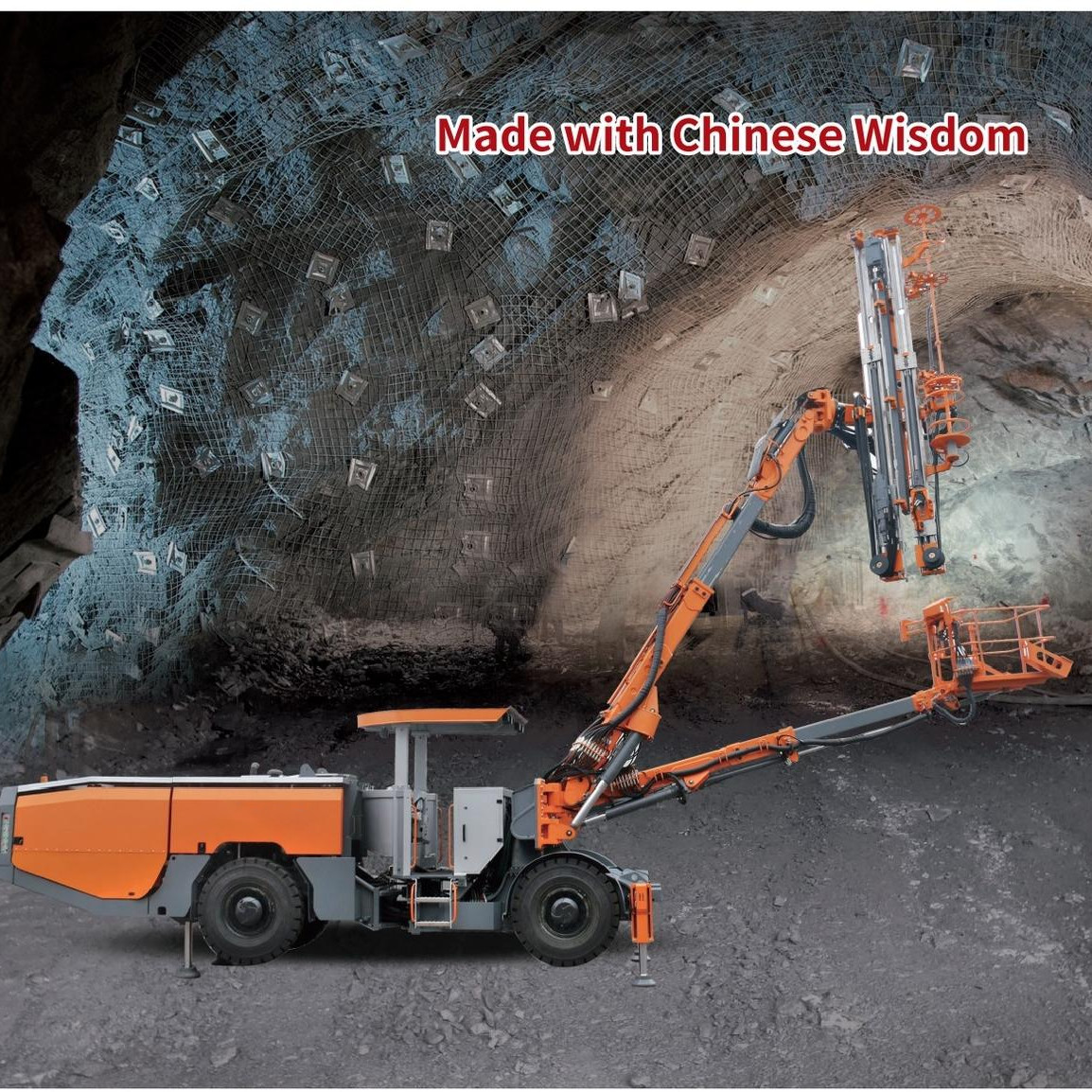

Product Picture
Technical Parameter
| Drilling work parameters | |
| Hole diameter range(mm) | 45-89 |
| Hole depth(mm) | 3440 |
| Drill rod size &length(mm) | 38-H 35 570um10 |
| Bolt length (mm | 3500 |
| Rock drill | |
| Model | ZY104M |
| Percussion power(kW) | 20 |
| Percussion rate(Hz) | 60 |
| Air compressor | |
| Working pressure(bar) | 8 |
| Rated FAD(m3/min) | 1 |
| Diesel engine | |
| Model | QSB5.9-C170-30 |
| Rated power(kW) | 25 |
| RPM(rpm) | 2200 rpm |
| Electric motor | |
| Rated power(kW) | 55 |
| Working RPM(r/min) | 475 |
| Voltage(V) | 380 |
| Drill rod feed | |
| Overall length(mm) | 5495 |
| Travel length(mm) | 446 |
| Extension length(mm) | 800 |
| Bolt feed | |
| Overall length(mm) | 5495 |
| Travel length(mm) | 3840 |
| Extension length(mm) | 00 |
| Bolt carousel capacity | 9+1 |
| Cement grouting feed | |
| Overall length(mm) | 5173 |
| Travel length(mm) | 3470 |
| Tramming | |
| Tramming Speed(km/h) | 14.5/6.5/3.7 |
| Gradeability(degree) | 5 |
| Rear axle swing(degree) | |
| Ground clearance(mm) | 340 |
| Boom | |
| Boom extension length(mm) | 1600 |
| Boom swing angleL/R(degree) | ±45 |
| Boom up/down angle(degree) | +68/-45 |
| Service platform | |
| Boom extension length(mm) | 4000 |
| Boom swing angleL/R(degree) | ±45 |
| Boom up/down angle(degree) | +60/-35 |
| Rated load capacity(kg) | 600 |
| Grouting system | |
| Grouting pressure(bar) | 25 |
| Groutingflow rate(L/min) | 0-40 |
| Cement mixer capacity(L) | 220 |
| Fuel tank capacity(L) | 130 |
| Water hose reel capacity(m) | 100 |
| Electrical cable reel capacity(m) | 100 |
| Weight(kg) | 300 |
| Dimensions(LxWx min./max.H | 16800×2500×2700/340 |
| Turning radius | (inner 4,800mm/outer 8,200mm) |
| Bolting coverage(WxH) | 17.4×12.4 |
| Workingface coverage area(m2) | 162 |
| Service platform coverage(WxH) | 14.6×9.7 |
