UJ22 Jumbo Drill Rig
Product Description
UJ22 is a full hydraulic tunneling jumbo drilling rig for medium and large tunnel development in highways and railways. The rig has two drill booms for drilling and one service platform. Besides blast hole drilling, the rig also can be used for drilling bolting holes. Each drill boom is equipped with a ZY104 high-frequency hydraulic rock drill with a maximum power of 20kw; the drill boom with parallet holding function covers a size of 13.8*9.7m and the coverage area is 100 square meters.

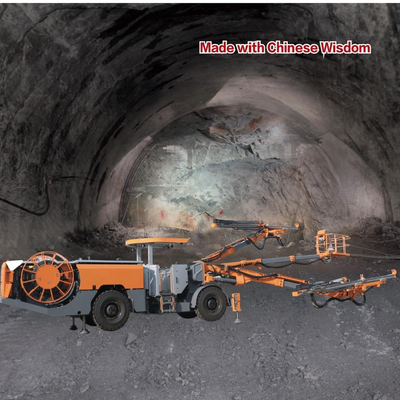

Product Picture
Technical Parameter
| Drilling operation specs | |
| Hole diameter range(mm) | 41-89 |
| Hole depth(mm) | 5,270 |
| Drill rod size&length(mm | T38-H35-R32/5,525 |
| Rock drill(Drifter) | |
| Model | ZY104M |
| Impact power(kW) | 20 |
| Impact rate(Hz) | 60 |
| Air compressor | |
| Working pressure(bar) | 8 |
| Rated FAD(m³/min) | 1 |
| Diesel engine | |
| Model | QSB5.9-C170-30 |
| Rated power(kW) | 125(at 2,200rpm) |
| RPM(r/min) | 2,200 |
| Electric motor | |
| Rated power(kW) | 55x2 |
| Working RPM(r/min) | 1,475 |
| Voltage(V) | 380 |
| Feed | |
| Total length(mm) | 7,244 |
| Feed travellength(mm) | 5,270 |
| Feed extension(mm) | 1,800 |
| Tramming | |
| Tramming Speed(km/h) | 14.5/6.5/3.7 |
| Gradeability(degree) | 15° |
| Ground clearance(mm) | 340 |
| Boom | |
| Boom extension(mm) | 1,600 |
| Boom swing angle(degree) | 士45 |
| Boom lift angle(degree | +68/-45 |
| Feed tilt angle(degree) | +3/-90 |
| Feed roll-over(degree) | 360(spiral) |
| Service platform | |
| Boom extension(mm) | 4,000 |
| Boom swing(degree) | ±45 |
| Boom lift up/down(degree) | +60/-35 |
| Rated load(Kg) | 600 |
| Cable reel capacity(m) | 100 |
| Water hose reel capacity(m) | 100 |
| Fuel tank volume(L) | 130 |
| Gross weight(kg) | 36,000 |
| Dimensions | |
| (length xwidth x height with roof down/up height)(mm) | 16,800x2,500x2,700/3,400 |
| Turning radius(mm | inner 4,800,outer 8,200 |
| Service platform coverage(widthxheight)(m) | 14.6x9.7 |
| Maximum workcoverage area(m²) | 110 |
