Discover the high-quality 300DF Truck Mounted Water Well Drilling Rig by Glorytek Industry. This rotary drilling rig is perfect for bore hole drilling up to 300m deep. With its truck-mounted design, it offers convenience and mobility. Contact us for pricing and rental options.

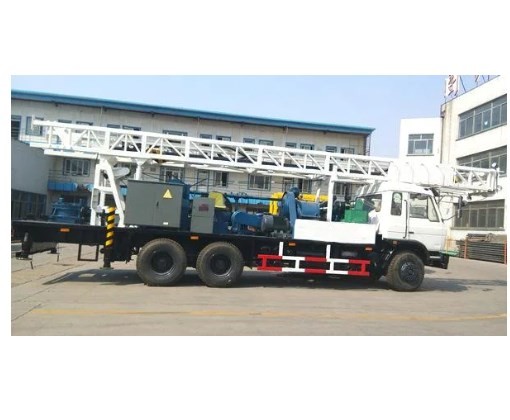

Are you in need of a reliable and efficient water drilling equipment? Look no further! We proudly present the 300DF truck-mounted water well drilling rig, a direct circulation rotary drilling rig that will exceed your expectations.
Designed with your needs in mind, this drilling rig boasts a compact structure and utilizes the powerful Dongfeng 6×4 special drilling rig chassis, model DFS1251GL18. With its China III emission standard and 11.00R20 steel wire cross-country pattern tires, you can trust in its exceptional off-road performance.
Under the hood, you'll find the Yuchai YC6J180-33 diesel engine, emitting China III standards and delivering a robust 132kw/2500rpm of power. This ensures that the drilling rig operates with utmost efficiency and reliability.
When it comes to drilling, this rig utilizes an independent diesel generator set as its power source. This means that the mechanical hoist and turntable work seamlessly together, driven by a motor, to provide you with a smooth and efficient drilling experience.
At Glorytek Industry (Beijing) Co., Ltd., we take pride in offering high-quality water well drilling rigs. With our truck-mounted water well drilling rig, you can expect exceptional performance, durability, and reliability. Whether you're in need of a 300m deep water well rig or a 400m truck-mounted rig, we have you covered.
Don't miss out on this incredible opportunity to own a top-notch water well drilling rig. Contact us today to learn more about our water well drilling rig prices and take the first step towards enhancing your drilling capabilities. Trust in Glorytek Industry (Beijing) Co., Ltd. as your trusted water well drilling rig manufacturer and supplier!
| Nominal drilling depth (M) | 300 | |
| Through hole diameter of turntable (mm) | 500 | |
| Turntable speed (r/min) | 8.6-142 | |
| Turntable torque (kN.m) | 38.9-2.4 | |
| Single rope pulling force of main winch (kN) | 30 | |
| Main hook lifting capacity (kN) | 240 | |
| Single rope pulling force of auxiliary winch (kN) | 30 | |
| Lifting force of secondary hook (kN) | 120 | |
| Drill tower bearing capacity (kN) | 240 | |
| Effective height of drilling tower (mm) | 11900 | |
| Kelly rod (mm) | Φ108×108×7500 | |
| Drill rod (mm) | Φ88.9×9.8×5500 | |
| Power | Generator model | HH100/R6105AZLD-1 100kW |
| Main rig | Y225S-4 37kW/1470rpm | |
| Mud pump | Y225S-4 37kW/1470rpm | |
| Hydraulic pump | YE2-160M-4 11kW/1470rpm | |
| Mud pump | Model | BW850/20 | |
| Bore (mm) | 150 | ||
| Displacement (L/min) | 850, 600 | ||
| Pump pressure (MPa) | 2, 3 | ||
| Input power (kW) | 40 | ||
| Truck chassis | Chassis model | DFS1251GL18 | |
| Chassis form | 6×4 | ||
| Engine | model | YC6J180-33 | |
| Type | Water-cooled four-stroke supercharged and inter-cooled | ||
| Rated power (kW) | 132 | ||
| Rated speed (rpm) | 2500 | ||
| Dimension | Working status (mm) | 10500×2480×13700 | |
| Transport state (mm) | 12500×2480×3700 | ||
Welcome to Glorytek Industry (Beijing) Co., Ltd., your trusted supplier of high-quality water well drilling rigs. Our truck-mounted rotary drilling rigs are perfect for bore hole drilling up to 400m deep. With competitive prices and reliable performance, our water well drilling equipment is your best choice. Contact us today for rentals or to purchase a water well drill rig.
For over 20 years, we have been dedicated to manufacturing and exporting top-quality drilling equipment and parts. Our team of highly experienced R&D professionals and engineers ensures that we successfully complete all projects according to our clients' requirements.
Our factory, spanning an impressive 250,000 square meters, with a construction area of 150,000 square meters, is equipped with state-of-the-art machinery, including CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of machinery and a workforce of more than 600 employees, we are fully equipped to meet your drilling needs.
Our products have reached more than 60 countries worldwide, including Australia, Russia, South Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, and Haiti.
Looking for reliable water drilling equipment? Look no further! Our Rotary Water Well Drilling Rig is the perfect solution for your needs. With its advanced features and high-quality construction, this rig is designed to deliver exceptional performance and durability.
Key Features:
Why Choose Our Rotary Water Well Drilling Rig?
Don't miss out on this opportunity to enhance your drilling capabilities. Contact us today to learn more about our Rotary Water Well Drilling Rig and how it can benefit your operations. We are your trusted water well drilling rig manufacturer and supplier!
