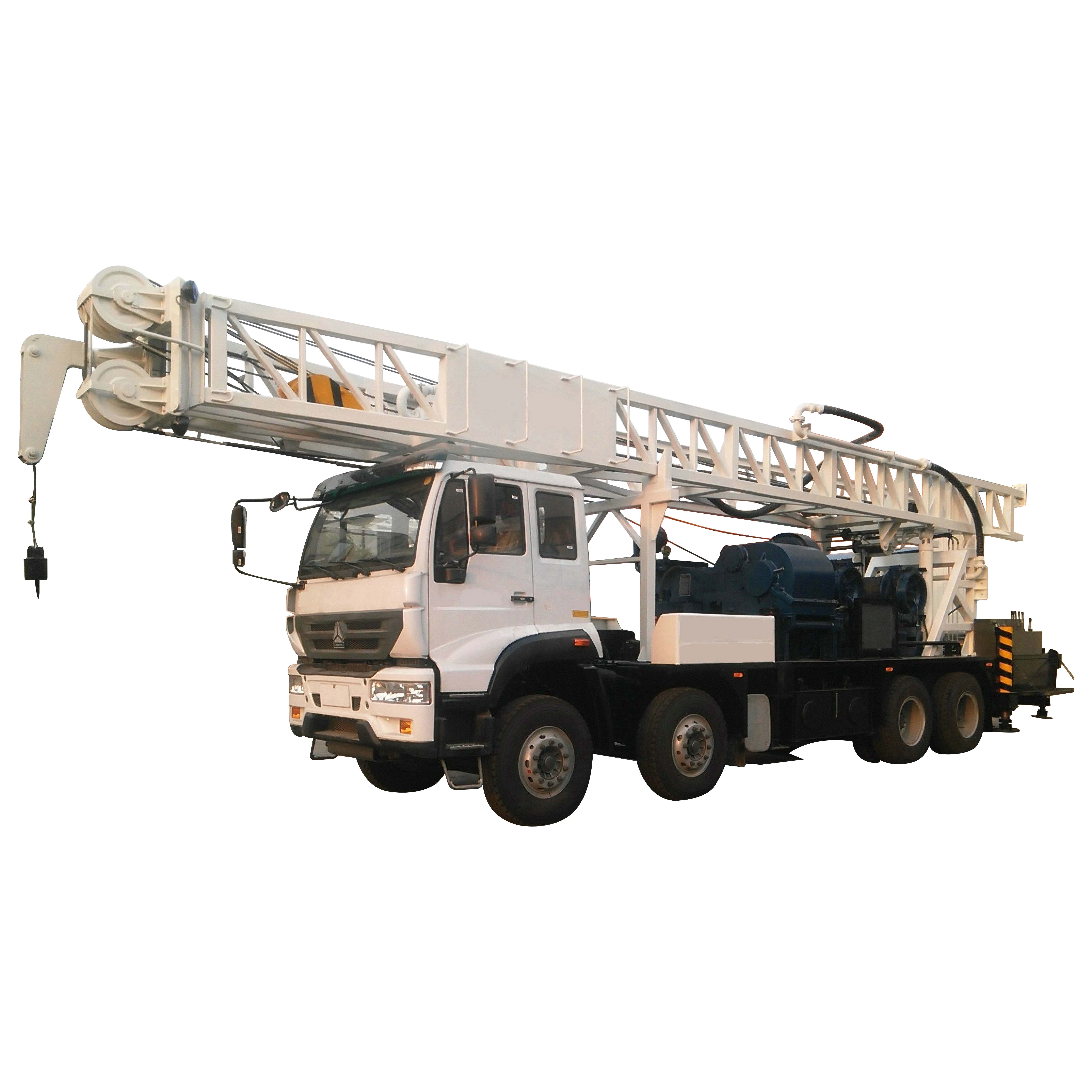

Truck Mounted Water Well Drilling Rig Borehole 600m Water Well Drill Rig with Mud Pump
Description:
C600HW truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.
The truck chassis adopts the special rig chassis of brand SINO-TRUK 8X4.
The main drive system, the transfer case, gearbox, double-winch unit, mud pump, rotary table, drilling tower, feed mechanism are set up on the chassis.
This rig is a rotary drilling rig with directional circulation.
It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
C600HW truck water well drill rig is rotary table type, it can drill with air compressor and also mud pump. We can supply air compressor, dth hammer, dth bits, drill pipe, drill collar, tricone bit, pdc bit, soil bit etc. to work with it while drilling.
Tehnical Parameter:
|
Open hole diameter
|
500mm
|
|
Drill depth
|
600m
|
|
Kelly:
|
108×108×7500 ( or 10500)mm
|
|
Drill pipe
|
Φ89×5500(6000or 9000)mm
|
|
Mast height
|
12500mm (or 16232mm)
|
|
Mast efficient height
|
11800 (or 15255mm)
|
|
Max-loading of mast
|
36t
|
|
Main hook rated load
|
32t
|
|
Vice hook rated load
|
25t
|
|
Main winch single rope lifting capacity 50kN; rope capacity 120m
|
|
|
Vice winch single rope lifting capacity 50kN;rope capacity 120m
|
|
|
steel wire specification
|
Φ18NAT6×37+NF1770
|
|
Rotarytable inner diameter
|
500mm;
|
|
Diesel engine:
|
DONGFENG CUMMINS 6BTA5.9-C180-In-line six cylinder water
cooled water cooled four stroke turbocharged intercooled diesel engine,Related power 132kW/2200rpm, MAX torque 750N.m/1600rpm; |
|
When drilling the CUMMINS output rotate speed 1300r/min
|
|
|
Rotarytable speed
|
|
|
Speed of main drive shaft
|
980r/min
|
|
DONGFENG gearbox gear in
|
sixth gear, fifth gear, forth gear, 3rd gear, 2nd gear,1st gear, reverse gear
|
|
Rotated speed
|
132;115;67; 43; 25;14;18(r/min);
|
|
Rotarytable torque
|
7.4----52(kN.m)
|
|
Gear oil
|
CB-HP80/50/32
|
|
Displacement:
|
80ml/r ;50ml/r;32ml/r
|
|
rated working pressure
|
20Mpa
|
|
highest pressure
|
25 MPa
|
|
Hydraulic radiator
|
|
|
Model
|
FLJ-45
|
|
voltage
|
24V
|
|
Hydraulic heater
|
|
|
voltage
|
220V
|
|
power:
|
1.5KW*2
|
|
mud pump
|
|
|
Model: 3NB-130
|
Type: Horizontal three - cylinder single acting piston pump
|
|
input power kW(HP)
|
90(130)
|
|
rated displacement l/min
|
1000
|
|
rated input rotate speed r/min
|
565
|
|
rated pressure MPa
|
5
|
|
Chassis
|
|
|
SINOTRUCK HOWO drive form 8x4 336HP
|
|
|
Dimension:
|
|
|
working size (LxWxH):
|
11122×2490×17463mm
|
|
Transportation size(LxWxH):
|
12500*2500*4200mm
|
