300DF Truck Mounted Versatile DTH Deep Hole Drilling 300M Water Well Drill Rig
Description:

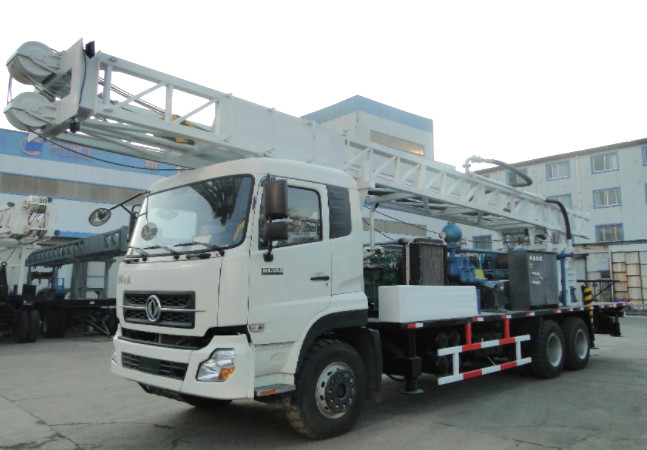

300DF truck mounted water well drilling rig is a direct circulation rotary drilling rig.
The drilling rig uses the Dongfeng 6×4 special drilling rig chassis
The emission standard is China III, and the 11.00R20 steel wire cross-country pattern tires are used, which has good off-road performance.
The drilling rig has a compact structure, and the chassis engine is Yuchai YC6J180-33 diesel engine, emission of China III, 132kw/2500rpm with strong power.
The drilling rig uses an independent diesel generator set as the power when drilling.
Tehnical Parameter:
| Nominal drilling depth (M) | 300 | |
| Through hole diameter of turntable (mm) | 500 | |
| Turntable speed (r/min) | 8.6-142 | |
| Turntable torque (kN.m) | 38.9-2.4 | |
| Single rope pulling force of main winch (kN) | 30 | |
| Main hook lifting capacity (kN) | 240 | |
| Single rope pulling force of auxiliary winch (kN) | 30 | |
| Lifting force of secondary hook (kN) | 120 | |
| Drill tower bearing capacity (kN) | 240 | |
| Effective height of drilling tower (mm) | 11900 | |
| Kelly rod (mm) | Φ108×108×7500 | |
| Drill rod (mm) | Φ88.9×9.8×5500 | |
| Power | Generator model | HH100/R6105AZLD-1 100kW |
| Main rig | Y225S-4 37kW/1470rpm | |
| Mud pump | Y225S-4 37kW/1470rpm | |
| Hydraulic pump | YE2-160M-4 11kW/1470rpm | |
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
