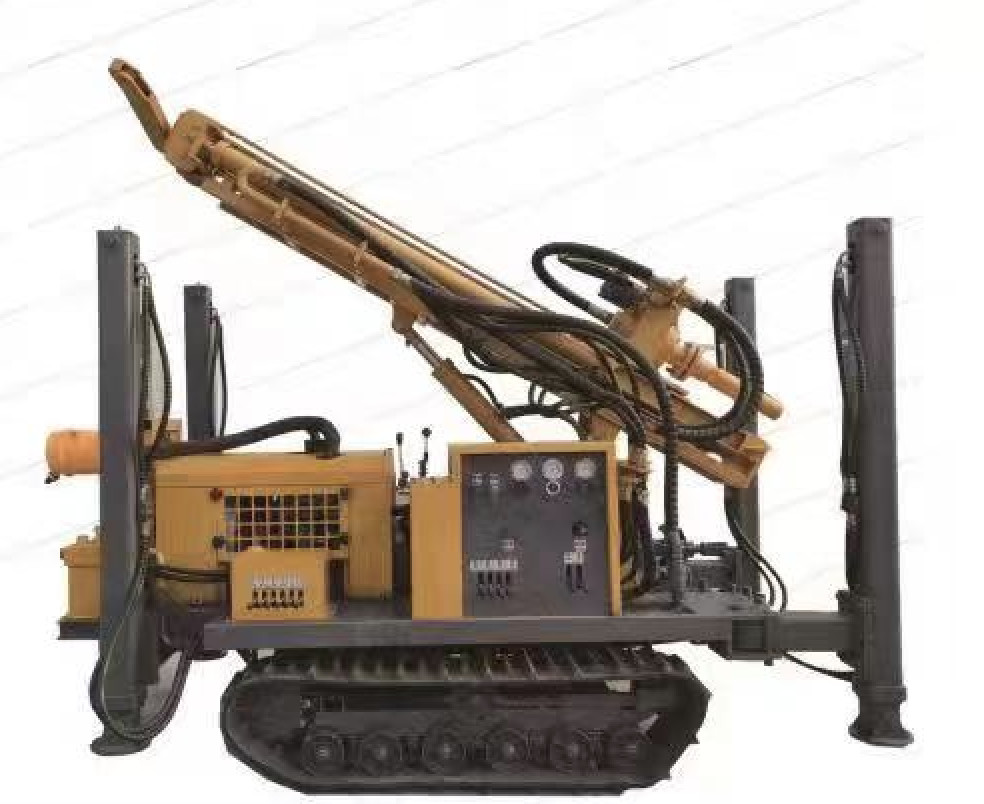

GL150S Crawler Water Well Drilling Rig Popular Crawler Mounted DTH Water Well Drill Rig
Description:
GL150S crawler drill rig is High power, fast drilling speed and low unit fuel consumption;
It is widely used in industrial and agricultural water conservancy projects, test wells, and another exploration drilling. In particular, geothermal heating drilling can also meet various projects of engineering foundation reinforcement, loose gravel drilling, and rock formation connection.
The diesel engine is 42kw, which is strong power and ability to meet the working require-ment of various operation environment.
Rubber tracked chassis improves off-road performance.
Tehnical Parameter:
|
Model
|
GL150S
|
|
The weight (T)
|
4.2
|
|
The hole diameter (mm)
|
90-254
|
|
Drilling depth (m)
|
150
|
|
Feeding distance (m)
|
3.6
|
|
Walking speed (km/h)
|
2.5
|
|
Climbing angles (Max.)
|
30
|
|
Power (KW)
|
42kw
|
|
Air pressure (mpa)
|
1.5-2.5
|
|
Air consumption (m3/min)
|
15-33
|
|
Drill pipe diameter (mm)
|
60/76/89
|
|
Drill pipe length (m)
|
1.5/2.0/3.0
|
|
Rig lifting force (T)
|
12
|
|
Rotation speed (rpm)
|
40-80
|
|
Rotation torque (N.m)
|
3500-3800
|
|
Dimension (mm)
|
3600*1800*2250
|
Related products
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
