Compact Structure 350mm Deep Truck Rock Bore Water Well Drill Rig
Description:

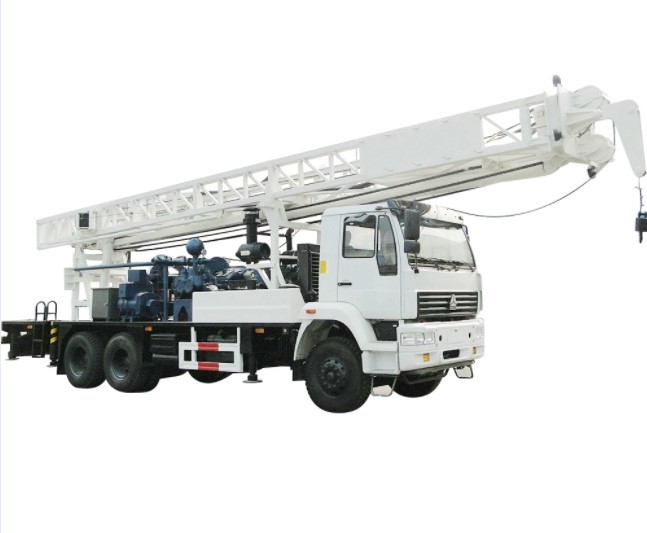

C350ZY truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.
Tehnical Parameter:
| Technical parameter | |||
| Drilling depth(M) | 300 | ||
| Drilling diameter(mm) | 500 | ||
| Speed of turntable(r/min) | 21.2;36;63.2;100.6;155;20.2(reverse) | ||
| Torque of turntable(KN.m) | 18;10.6;6;3.8;2.5;18.9(reverse) | ||
| Single rope lifting capacity of windlass(KN) | 30 | ||
| The capacity of main windlass(KN) | 180 | ||
| Single rope lifting capacity of hydraulic windlass(KN) | 40 | ||
| The capacity of hydraulic windlass(KN) | 160 | ||
| The lifting capacity of hook(KN) | 180 | ||
| Bearing capacity of mast (KN) | 180 | ||
| The height of mast (mm) | 11500 | ||
| Bearing capacity (t) | 25 | ||
| Pipe | Kelly (mm) | 108×108×7500 | |
| Assistant pipe (mm) | Ф89×10×5500 | ||
| Hydraulic pump | Model | CB-HP50/32Z | |
| Pump delivery (ml/r) | 50/32 | ||
| Rated speed (r/min) | 2000 | ||
| Rated pressure(MPa) | 20 | ||
| Diameter of cylinder (mm) | 150 | ||
| Stroke of piston (mm) | 180 | ||
| Theory of flow (L / min) | 600 850 | ||
| Rated pressure (Mpa) | 3 2 | ||
| BW850/2A plunger pump | Pounding times (min-1) | 58 82 | |
| Diameter of suction tube (mm) | 127 | ||
| Diameter of drain pipe (mm) | 64 | ||
| Input speed (r / min) | 470 | ||
| Input power (kw) | 40 | ||
| Overall dimensions (mm) | 2000*1030*1400 | ||
| Weight (t) | 1.5 | ||
| Truck chassis | Model | TAZ5183TZJ | |
| Drive form | 6×4 | ||
Engine |
Model | CA6DE3-20E3(Europe III emission standard) | |
| Rated power(KW) | 147 | ||
| Speed (r/min) | 2300 | ||
| Size (L*W*H)(mm) | 11110×2490×2500 | ||
| Electric generator | Model | MF | |
| Rated power (kw) | 15 | ||
| Rated voltage(v) | 400 | ||
| Rated current(A) | 27 | ||
| Speed (r/min) | 1500 | ||
| Frequency(Hz) | 50 | ||
| Protection level | IP21 | ||
| Insulation Class | H | ||
| The best working gear (or speed) | 5th gear(1000-1400r/min) | ||
| The highest speed(Km/h) | 75 | ||
| Weight (kg) | 19340 | ||
| Transport size(L*W*H)(mm) | 12160*2490*3440 | ||
| Working size(L*W*H)(mm) | 11110*2490*13110 | ||
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
