Truck Mounted Hydraulic Water Well Drill Rig Price for 400meter Drilling Capacity
Description:

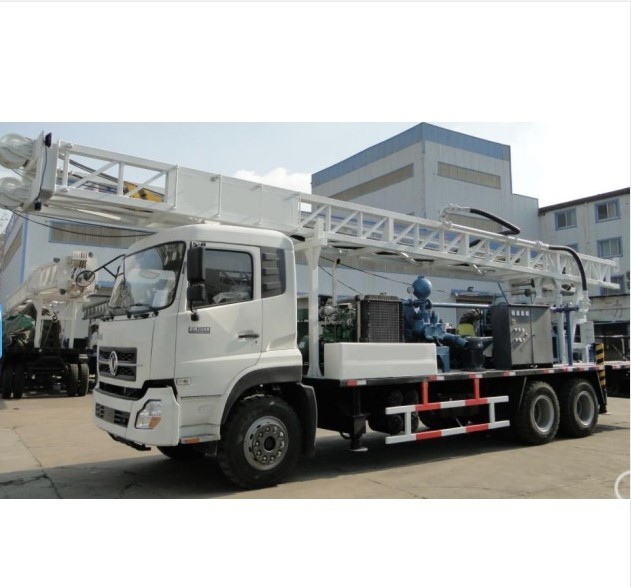

DF400 Truck Mounted Water Well Drilling Rig is a direct circulation rotary drilling rig.
It is equipped with the Dongfeng 6×4 special truck chassis.
It is equipped with 11.00R20 steel wire off-road tread tires, which has good off-road performance.
The hydraulic system of the drilling rig adopts an open system design, and the hydraulic control system of getting on and off is separated to avoid misoperation.
The hydraulic system is equipped with an oil temperature heater in winter and an oil temperature radiator in summer to adapt to different seasons and regions for heating and cooling of hydraulic oil.
Tehnical Parameter:
| Model NO. | DF400 |
| Drill Hole Depth | 400m |
| Bit Type | DTH Bit, Tricone Bit |
| Drilling Way | Rotary Type |
| Hole Depth | 400(M) |
| Turntable Torque (Kn.M) | 2.96; 3.38; 5.82; 9; 15.5; 27 |
| Kelly(mm) | 108*108*7500 |
| Mud Pump | Bw850 |
| Chassis Form | 6*4 |
| Rated Power (Kw) | 162 |
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
