Crawler 500m Depth Water Well Drill Rig Gl500s Diesel Engine

1 sets
MOQ
To be negotiated
Price
Crawler 500m Depth Water Well Drill Rig Gl500s Diesel Engine
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Video Technical Support
Warranty: 12 Months
Usage: Water Well
Condition: New
Product Name: Crawler Water Well Drilling Rig For Sale 500m Depth GL500S Diesel Engine Well Water Drilling Rigs
Application: Drilling Well
Diesel Engine: 118KW
Highlight:

500m depth water well drill rig

,

diesel engine water well drill rig

,

500m depth borehole drilling machine

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: GL500S
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description

Crawler water well drilling rig for sale 500m depth GL500S Diesel engine well water drilling rigs



1.Description:

-High efficiency, multifunctional drilling rig. GL500S drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics,.
-widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering.
-The diesel engine is 118kw,this drill rig greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.



2.Applications:

Complicated geological conditions: Rock, Mud, Sand etc.



3.Specifications:
(For reference,more details please contact us)



Item Specification
Weight of the rig(T) 11
Drilling diameter(mm) 138-350
Drilling depth (m) 500
Feeding stroke(m) 6.6
Moving speed(km/h) 2.5
Climbing ability(°) 30
Diesel engine(kw) 118
Air pressure (mpa) 1.8-3.5
Air consumption(m³/min) 40
Rod diameter(mm) Φ108 φ114
Rod length (m) 3m/ 6m
Lifting force (T) 27
Rotary speed (r/min) 40-100
Rotary torque(N.m) 7500-10000
Supporting legs (height*width)(mm) 1400*2800
Rig dimensions(length*width*height)(mm) 6200*2100*2650

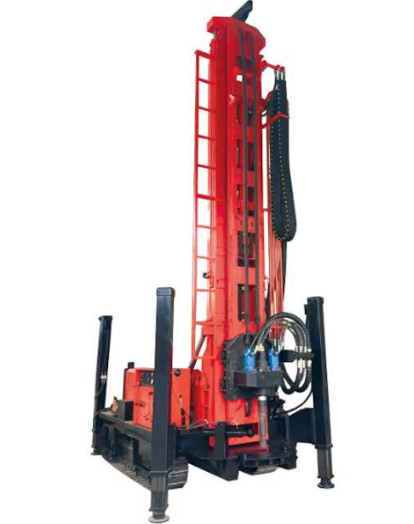

The Photo of products

Crawler 500m Depth Water Well Drill Rig Gl500s Diesel Engine 0




Related Product



Crawler 500m Depth Water Well Drill Rig Gl500s Diesel Engine 1

Company Profile

Crawler 500m Depth Water Well Drill Rig Gl500s Diesel Engine 2



Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.



Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.



Why choose us?


Q:Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.



Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are certification company, and we support payment terms like L/C, Escrow, to ensure your safety.



Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, Because we've bought insurance for you, we or shipping company will be responsible!
