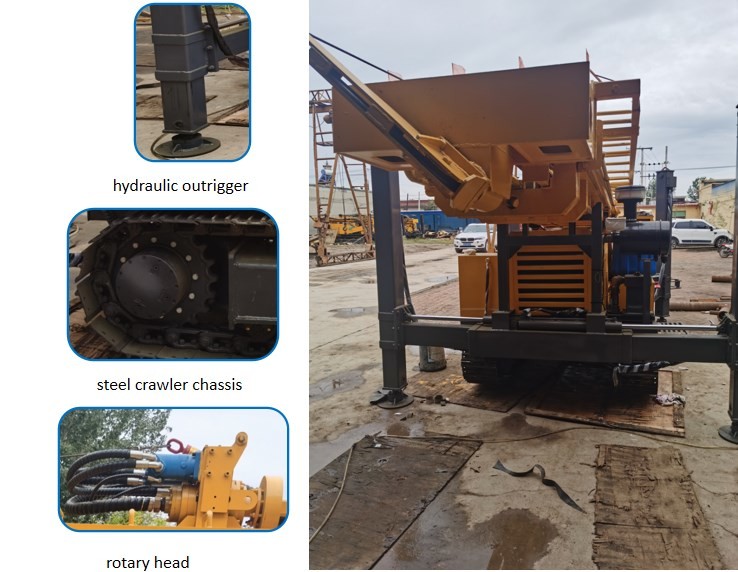

GL300S is a crawler water well drilling rig is a versatile and capable machine that can be used for a wide range of water well drilling applications. Its technical specifications allow it to drill deep boreholes in various soil and rock formations, and its compact size and mobility make it easy to transport and use in tight spaces. With the optional accessories and drilling methods available, this rig can be customized to fit specific drilling requirements and improve drilling efficiency and performance.
Air Rotary Drilling: This drilling method uses compressed air to rotate the drill bit and break up the soil or rock formation. As the air is forced down the drill string, it helps to remove the cuttings and bring them to the surface. Air rotary drilling can be effective for drilling in hard rock formations.
Rod length: 3m/6m - The rig can use drill rods with lengths of either 3 meters or 6 meters, depending on the drilling depth and the specific drilling requirements.
Rod diameter: 76/89/102mm - The rig is compatible with drill rods with diameters of 76mm, 89mm, or 102mm, giving it the flexibility to drill in a variety of soil and rock formations.
| Max drilling depth | 330m |
| Drilling diameter | 105-300mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102mm |
| Main shaft pressure | 6T |
| Lifting force | 20T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 40m/min |
| Rotary torque | 8900 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.35-1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 7.8T |
| Dimension | 4.9m x 2m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 77KW(Yuchai) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
