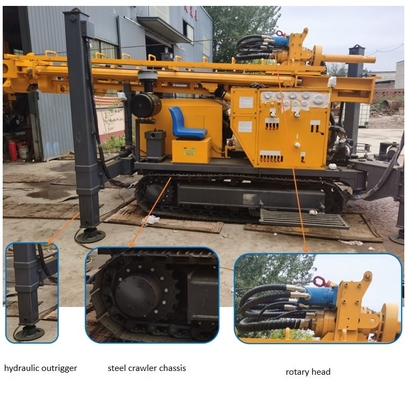

GL300S is a 300m crawler water well drilling rig. It is a type of heavy-duty drilling equipment that is designed to drill boreholes for water wells up to a depth of 300 meters. The rig is mounted on a crawler track, which allows it to move over rough terrain and access remote drilling sites.
The drilling rig is powered by a diesel engine and typically has a large drilling mast that can be raised and lowered to adjust the drilling angle. The mast also supports the drill pipe and drilling tools, which are used to drill through various types of soil and rock formations.
The rig may also be equipped with a range of auxiliary equipment, such as mud pumps, air compressors, which are used to support the drilling process and provide power to the rig.
1. Increased Efficiency: A 300m crawler water well drilling rig is designed to drill boreholes quickly and efficiently. The rig is equipped with powerful engines and advanced drilling technologies that help to speed up the drilling process and reduce downtime.
2. Versatility: Crawler water well drilling rigs are designed to work in a wide range of soil and rock formations, making them a versatile option for drilling water wells. These rigs can handle everything from soft soil to hard rock formations, and can be used in a variety of different environmental conditions.
| Max drilling depth | 330m |
| Drilling diameter | 105-300mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102mm |
| Main shaft pressure | 6T |
| Lifting force | 20T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 40m/min |
| Rotary torque | 8900 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.35-1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 7.8T |
| Dimension | 4.9m x 2m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 77KW(Yuchai) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
