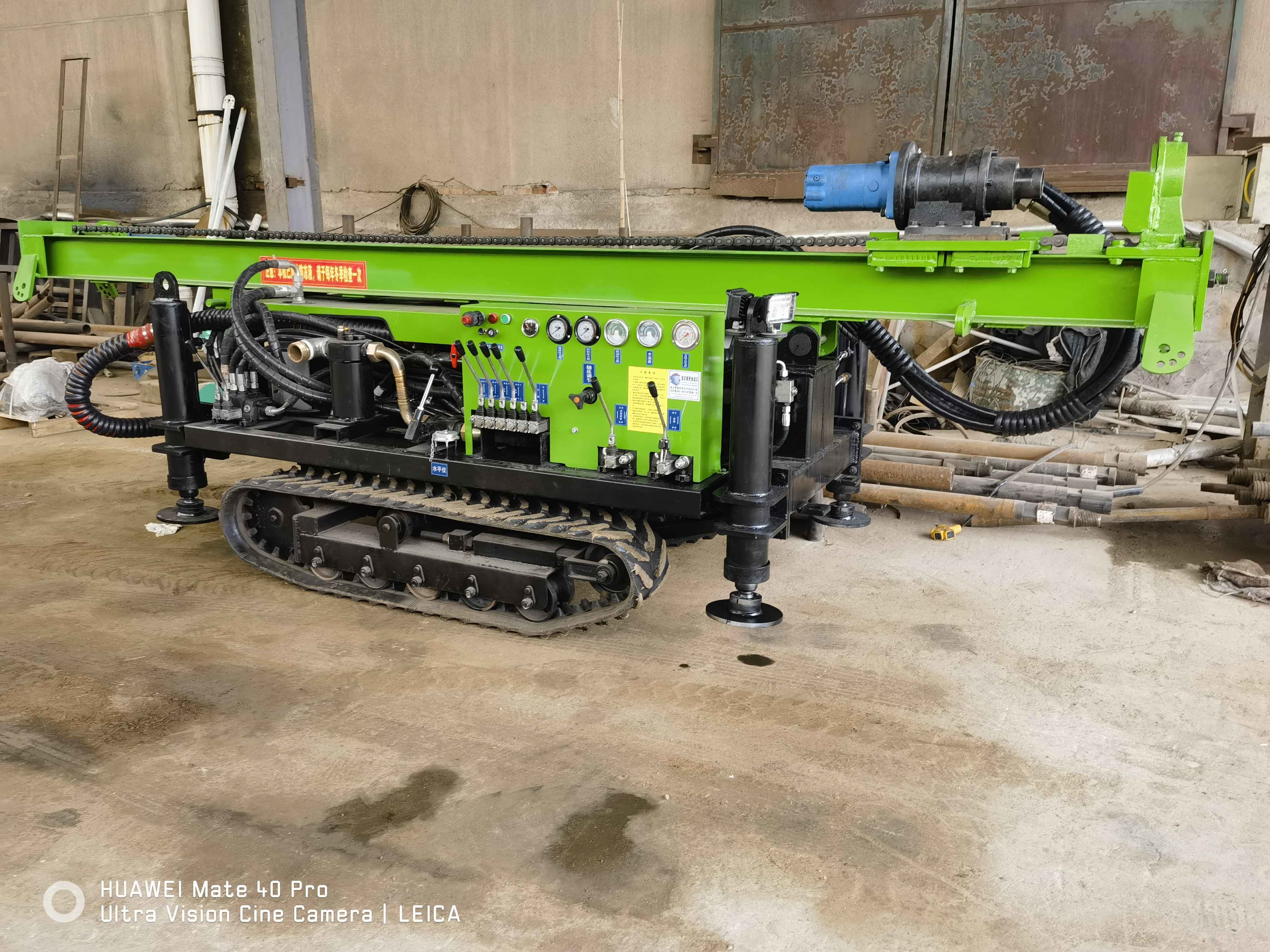

GL-50D Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.
Using the principle of pneumatic impact, the drilling footage is fast
Equipped with rubber and steel wire crawlers, it is easy to move, and it will not hurt the road when walking on urban roads
Equipped with hydraulic high outriggers, it is convenient for loading and unloading trucks, saving hoisting costs, and can be used for leveling the drilling rig to maintain the stability of the machine body.
Equipped with a hydraulic lifting compound drill boom, it saves space and provides strong lifting force for deep hole operations.
Concentrated operating handles, reasonable layout, safe and feasible.
| Model | GL-50D |
| The weight (T) | 1.8 |
| Tower weight (removable) (kgs) | 220 |
| The hole diameter (mm) | 70-180 |
| Drilling depth (m) | 300m at 90mm hole |
| Feeding distance (m) | 2.3m/3.3m |
| Drilling angle | horizontal or vertical |
| Power (hp) | Yuchai 50HP (electric start diesel engine) |
| Drill pipe diameter (mm) | 76/89 |
| Drill pipe length (m) | 2.0/3.0 |
| Rig lifting force (T) | 6 |
| Chassis | rubber crawler |
| Rotation torque (N.m) | 1700 |
| Dimension(walking state) (mm) | 3300*1200*1300 |
| Drilling method | Down the hole hammer |
Customer Visting
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
