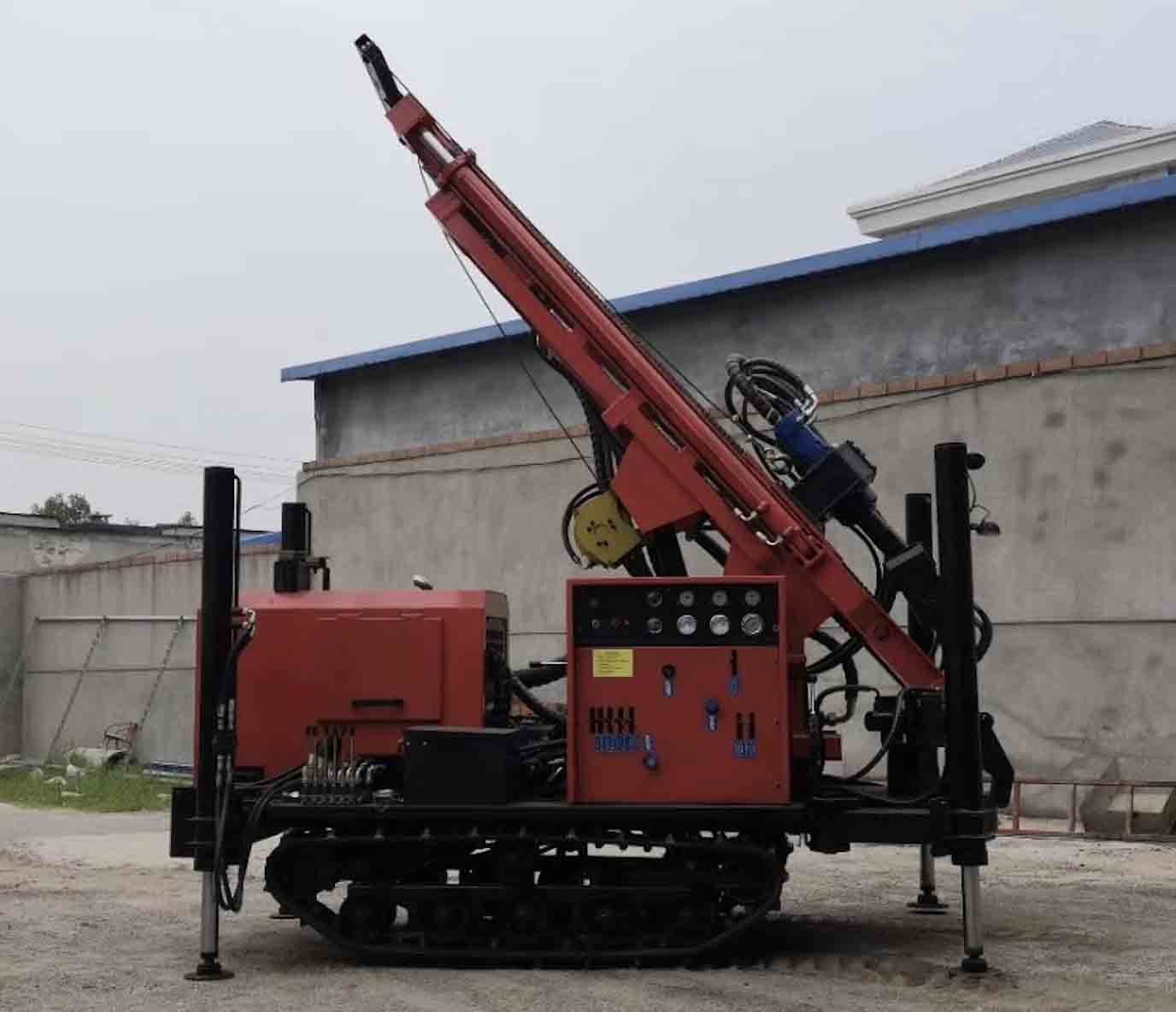

GL-180R rubber cawler water well drill rig is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineerin.
The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.2m, which is convenient for relocation and transportation.
It can drill max. 200m depth. The rubber chassis will be better to protect the road.
It is much higher efficient than the traditional mud rotary drill rigs, creating the considerable economic benefit for users. Especially solve problems to drill hard rocks that the traditional rotary drilling rig meet and it should work with air compressor.
| Item | Specification |
| Weight of the rig(T) | 5 |
| Drilling diameter(mm) | 138-219 |
| Drilling depth (m) | 200 |
| Feeding stroke(m) | 3.5 |
| Climbing ability(°) | 30 |
| Diesel engine(kw) | 65 |
| Air pressure (mpa) | 1.8-2.5 |
| Air consumption(m³/min) | 18-30 |
| Rod diameter(mm) | Φ76 φ89 |
| Rod length (m) | 1.5 3.0 |
| Rotary torque(N.m) | 4500 |
| Supporting legs (height*width)(mm) | 1200*2400 |
| Rig dimensions(length*width*height)(mm) | 3500*1600*2200 |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
