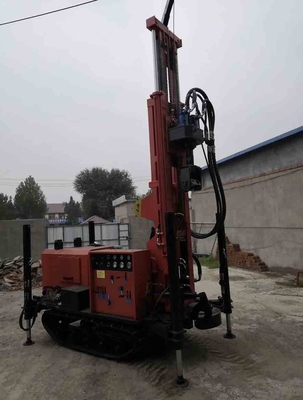

GL-180R crawler drill rig is widely used in drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells.
Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.
GL-180R drill rig is equipped with a 65KW diesel engine with strong power;
The drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
Rubber track can increase the grip and better protect the ground. It is suitable for roads in city and countryside.
GL-180R is designed with composite boom, which is small in size, long in stroke.
The boom configured on the rig body is equipped with a limit device to protect the safety of the oil cylinder, which ensure the safety while operating.
| Item | Specification |
| Weight of the rig(T) | 5 |
| Drilling diameter(mm) | 138-219 |
| Drilling depth (m) | 200 |
| Feeding stroke(m) | 3.5 |
| Moving speed(km/h) | 2.5 |
| Climbing ability(°) | 30 |
| Diesel engine(kw) | 65 |
| Air pressure (mpa) | 1.8-2.5 |
| Air consumption(m³/min) | 18-30 |
| Rod diameter(mm) | Φ76 φ89 |
| Rod length (m) | 1.5 3.0 |
| Lifting force (T) | 13 |
| Rotary speed (r/min) | 35-70 |
| Rotary torque(N.m) | 4500 |
| Supporting legs (height*width)(mm) | 1200*2400 |
| Rig dimensions(length*width*height)(mm) | 3500*1600*2200 |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
