We can supplu air compressor on board truck mounted water well drill rig according to clients requirement.
Customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on.

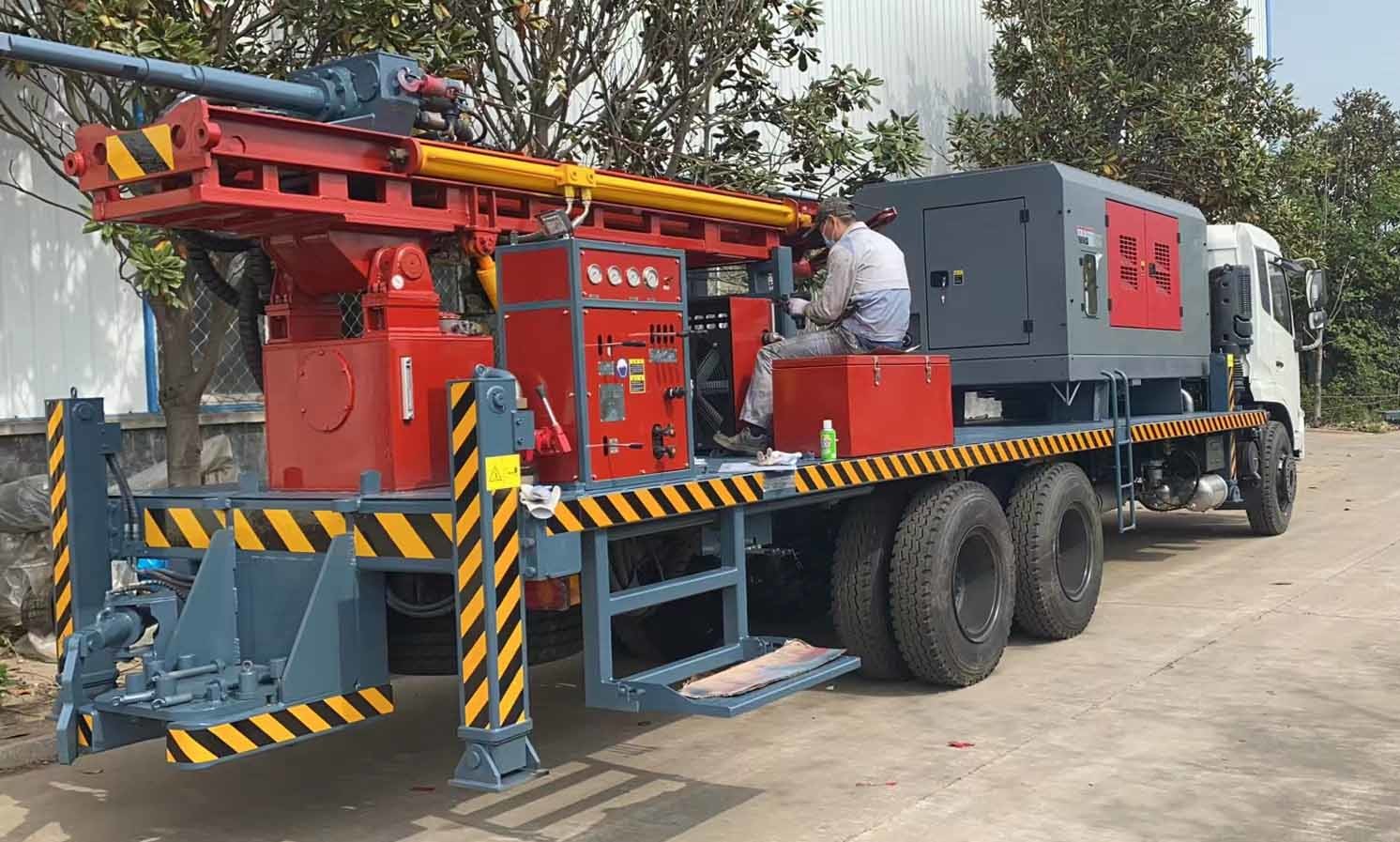

GL300AT air compressor integrated truck mounted drill rig is equipped with Sinotruk HOWO 6x4 truck chassis.
The drill rig can drill max. 300m depth.
Air compressor is 22bar, 24m3/min.
Mud pump is 250l/min triplex mud pump.
| Drill Rig Spec. | |||||||||
| Max. drilling depth | 300m | ||||||||
| borehole dia. | 105-325mm | ||||||||
| recommended working pressure | 1.2-3.5Mpa | ||||||||
| Recommended air consumption | 16-55m3/min | ||||||||
| Drill rod length | 6m/3m | ||||||||
| Drill rod dia. | 89mm/102mm/114mm | ||||||||
| Max.propelling force | 12T | ||||||||
| Max.lifting force | 26T | ||||||||
| Quick push speed | 28m3/min | ||||||||
| Max. rotating speed | 55/110r/min | ||||||||
| Max. rotating torque | 1000N.m | ||||||||
| Feeding efficiency | 10-40m/h | ||||||||
| Winch lifting force | 1.1T (optional) | ||||||||
| DTH hammer | Medium and high pressure type | ||||||||
| Rock hardness | F=6-20 | ||||||||
| Drilling method | Top drive hydraulic rotation and propulsion, dth hammer drilling or mud drilling | ||||||||
| Truck Chassis Specification | |||||||||
| Brand | Sinotruk HOWO 6x4 | ||||||||
| Cab | T5G-W | ||||||||
| Diesel Engine Model | MC09.35B-60(Displacement:9.0L, 6-cylinder) | ||||||||
| Diesel Engine Power | 350HP | ||||||||
| Drive Type | 6x4 | ||||||||
| Wheelbase | 5700+1350 | ||||||||
| Tire specifications | 12.00R20 | ||||||||
| Front axle | HF7 self-adjusting arm front axle | ||||||||
| rear axle | ST16 self-adjusting arm double rear axle,Speed ratio 4.8 | ||||||||
| gearbox | HW16709XST | ||||||||
| other configuration | frame:8+5/300, 300L Aluminum alloy oil tank | ||||||||
| Air Compressor Specification | |||||||||
| Brand | Glorytek | ||||||||
| Air pressure | 22bar(319psi) | ||||||||
| Air output | 24m³/min(848cfm) | ||||||||
| Diesel engine | Yuchai YC6L310-H300 | ||||||||
| Diesel engine power | 228Kw | ||||||||
| Dimensions | 3560*1830*2050mm | ||||||||
| Weight | 3560kgs | ||||||||
| Delivery valve | G1 1 /2, G2 | ||||||||
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
