Description:

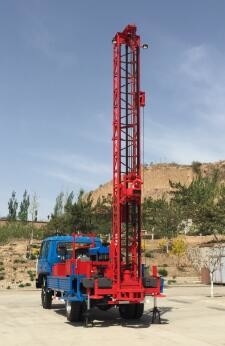

The GL-III truck-mounted water well drilling rig is an top drive water well drilling rig with large torque and high efficiency.
The structure of the drilling rig is very compact, the drilling platform is equipped with 84kw diesel engine. It not only meets drilling requirements, but also reduces energy consumption.
It is widely used for civil water wells, air conditioners in ground temperature and drilling holes in various concrete structures.
Application:
1. Civil engineering drilling
2. Geothermal drilling
3. Water well drilling
Tehnical Parameter:
| GL-III Truck Mounted Water Well Drilling Rig | |
| Drilling Parameter | |
| Hole diameter: | 120--1500(mm) |
| Hole depth: | 400(m) |
| Run Of Rod: | 3,4(m) |
| Drill rod diameter: | φ73 φ89 φ95 φ133(mm) |
| Drilling Technology: | Normaland Reverse Circulation for both Mud and Air |
| Down-The-Hole hammers: | Middle-High-Pressure Air |
| Drill Head Inside Diameter: | φ80 φ120 |
| Drill Head Spin Speed: | A(Forward:20-33-73,Reverse:13-23-47r/min) |
| B(Forward:41-66-146,Reverse:26-43-94r/min) | |
| B(Forward:36-58-127,Reverse:23-37-80r/min) | |
| Shape Parameters | |
| Dimensions: | (L-W-H) Working conditions 9600×2950×7900(mm) |
| Transport status: | (L-W-H) 10200×2470×3300(mm) |
| Supporting Form: | Hydraulic Unit |
| Mast Up-Down: | Hydraulic Unit |
| Rig mass: | 12500(Kg) |
| Chassis: | Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive) |
| Power Unit: | Diesel Engine |
| Power: | 84(kW) |
| Pump: | BW600/30 Mud Pump |
| Flow(m³/h): | 720 513 335 |
| Pressure(MP): | 3 4 5 |
Related products
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
