Description:

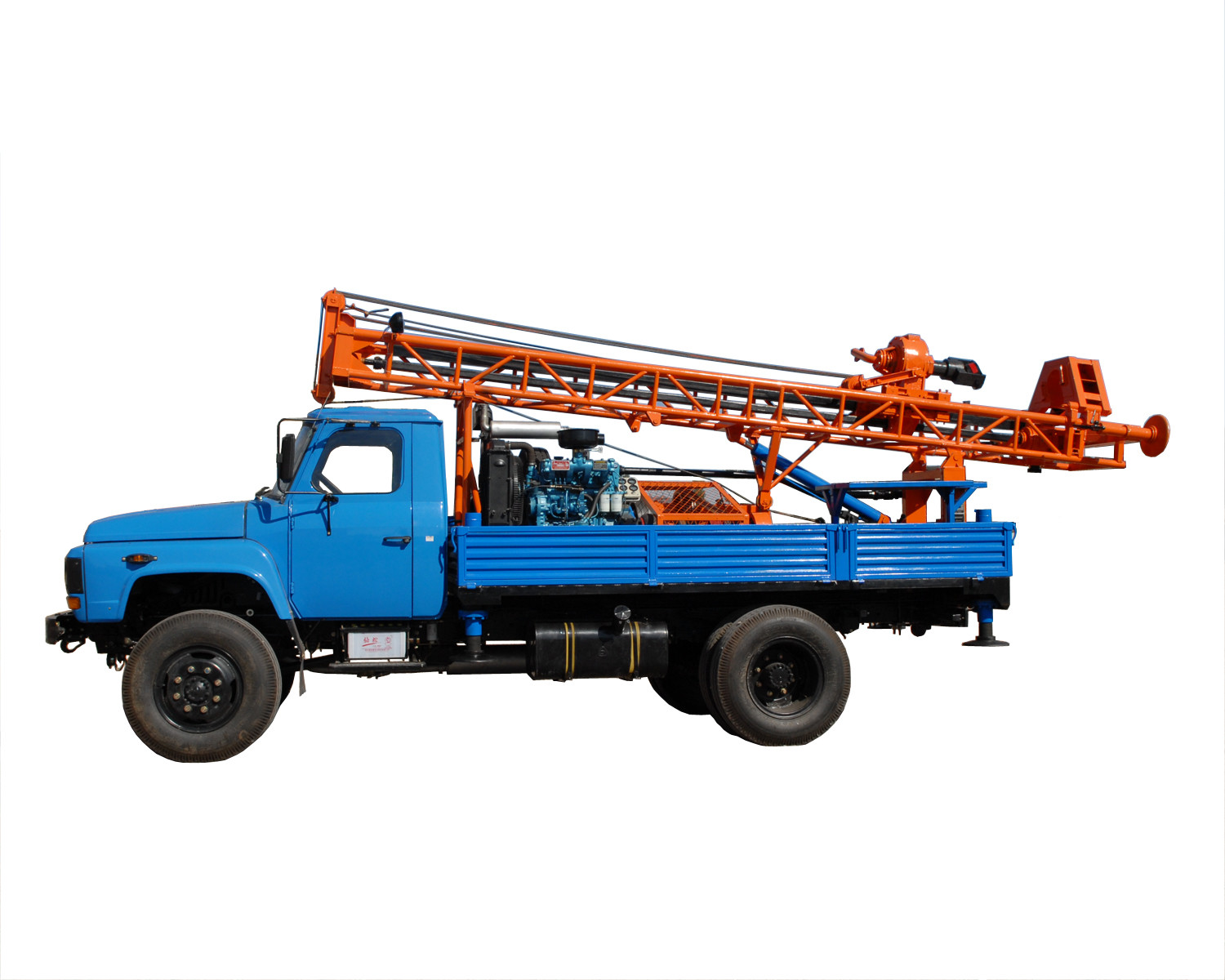

The GL-III multifunctional truck-mounted water well drilling rig is an efficient and multifunctional fully hydraulic water well drilling rig with large torque and high efficiency.
It has a large stroke by extending completely when working, which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.
It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast lifting.
A centralized console is suitable for various operations and controls. Fast lifting reduces auxiliary time and improves work efficiency.
Tehnical Parameter:
| GL-III Truck Mounted Water Well Drilling Rig | |
| Drilling Parameter | |
| Hole diameter: | 120--1500(mm) |
| Hole depth: | 400(m) |
| Run Of Rod: | 3,4(m) |
| Drill rod diameter: | φ73 φ89 φ95 φ133(mm) |
| Drilling Technology: | Normaland Reverse Circulation for both Mud and Air |
| Down-The-Hole hammers: | Middle-High-Pressure Air |
| Performance parameter | |
| Drill Head Inside Diameter: | φ80 φ120 |
| Drill Head Spin Speed: | A(Forward:20-33-73,Reverse:13-23-47r/min) |
| B(Forward:41-66-146,Reverse:26-43-94r/min) | |
| B(Forward:36-58-127,Reverse:23-37-80r/min) | |
| Shape Parameters | |
| Dimensions: | (L-W-H) Working conditions 9600×2950×7900(mm) |
| Transport status: | (L-W-H) 10200×2470×3300(mm) |
| Supporting Form: | Hydraulic Unit |
| Mast Up-Down: | Hydraulic Unit |
| Rig mass: | 12500(Kg) |
| Chassis: | Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive) |
| Power Unit: | Diesel Engine |
| Power: | 84(kW) |
| Pump: | BW600/30 Mud Pump |
| Flow(m³/h): | 720 513 335 |
| Pressure(MP): | 3 4 5 |
