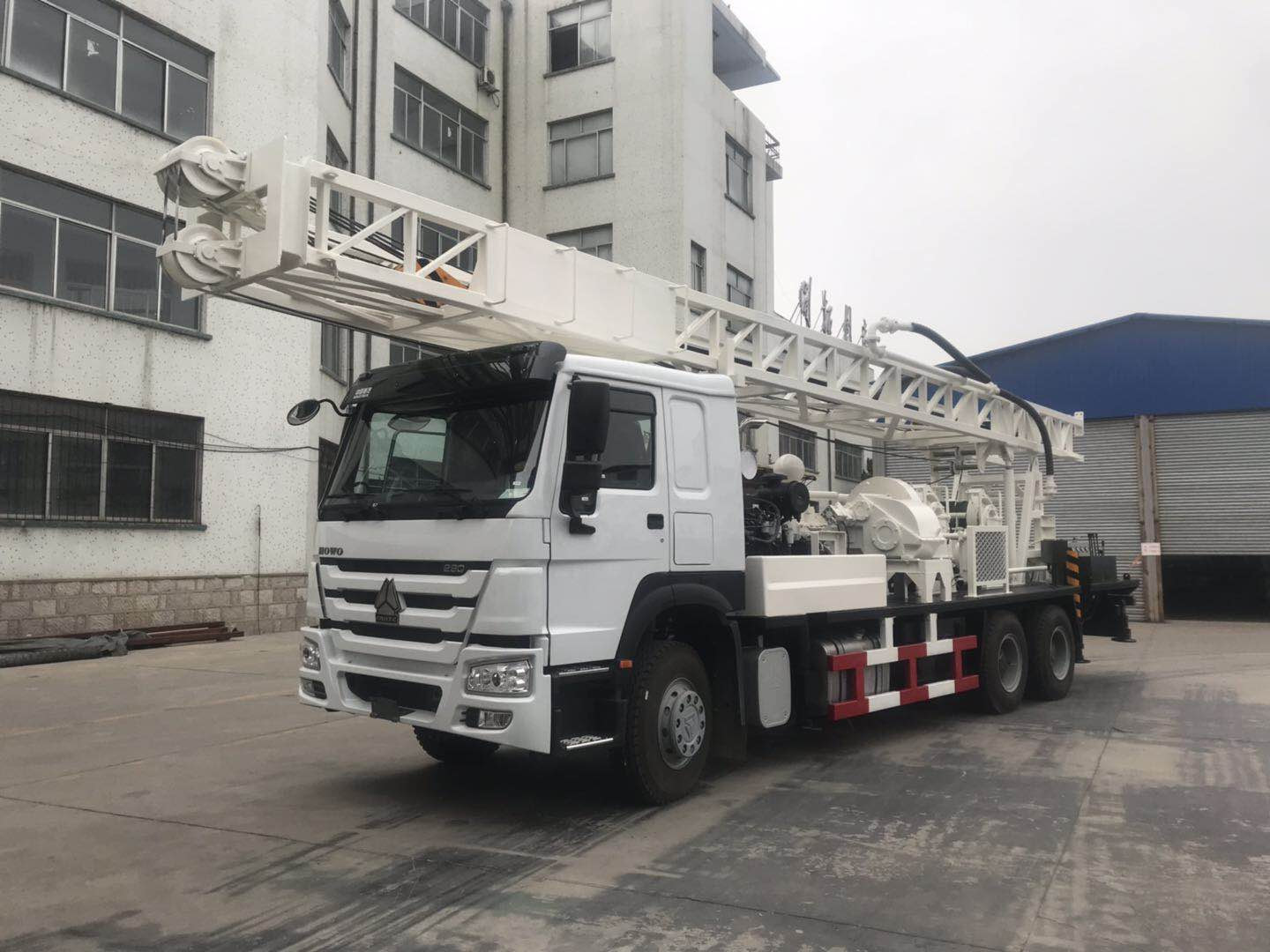

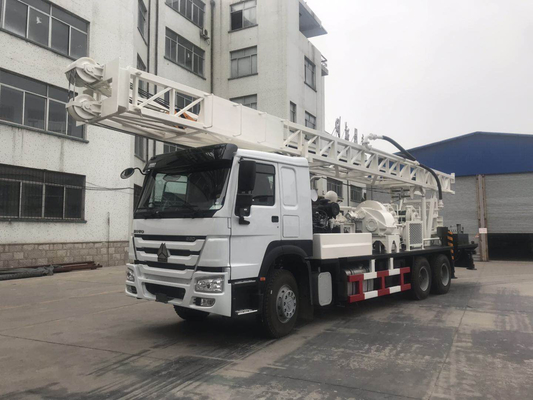

1. C400HW truck mounted water well drill rig is rotary table type. It has big torque.
2. The truck chassis is famous brand Sino Truck HOWO 6*4 TRUCK and the main drive system, the transfer case, gearbox, double winch unit, mud pump, rotary table, drilling mast, engine are set up on the chassis.
3. This drill rig is directional circulation drilling rig.The mud pump is 850l/min.
4. There is a independent power on the deck: Cummins 112kw diesel engine;
5. This type of drilling rig has large torque, large lifting force, strong power, simple operation, and convenient and quick loading and unloading of drill pipes.
| Technical parameter | |||
| Drilling depth(M) | 400 | ||
| The open hole diameter(mm) | 500 | ||
| The end of hole(mm) | 200 | ||
| Torque of rotary table(KN.m) | 5.4--50 | ||
| Single rope lifting capacity of main winch(T) | 4 | ||
| Maximum lifting capacity of main winch(T) | 24 | ||
| Single rope lifting capacity of vice winch(T) | 4 | ||
| Maximum lifting capacity of vice winch(T) | 16 | ||
| The lifting capacity of hook (T) | 27 | ||
| Bearing capacity of drilling tower (T) | 30 | ||
| The height of drilling tower (mm) | 12500 | ||
| The independent power | Cummins engine-112Kw) | ||
| Drill pipe | Kelly pipe (mm) | 108×108×7500 | |
| Assistant pipe (mm) | .Ф89×10×5500 | ||
|
BW850/2A Mud pump |
Diameter of cylinder (mm) | 150 | |
| Stroke of piston (mm) | 180 | ||
| Theoretical flow (L / min) | 600 850 | ||
| Rated pressure (Mpa) | 3 2 | ||
| Pounding times (min-1) | 58 82 | ||
| Diameter of suction tube (mm) | 127 | ||
| Diameter of drain pipe (mm) | 64 | ||
|
Truck chassis |
Brand | SINO TRUCK | |
| Drive form | 6×4 | ||
| Rated power(HP) | 280 | ||
| The highest speed(Km/h) | 75 | ||
| Weight (kg) | 25340 | ||
| Transport size(L*W*H)(mm) | 12550×2500×4208 | ||
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
