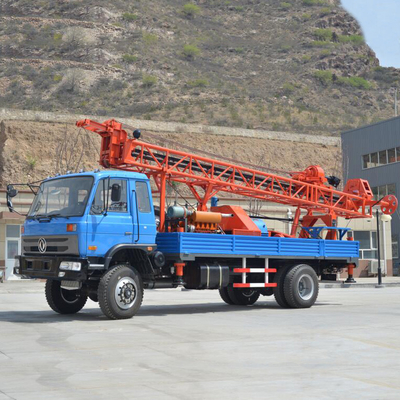

400m Dongfeng 4x4 Off-Road Truck Mounted Water Well Drill Rig For Mud Drilling
Description:
GL-III truck mounted water well drill rig is mounted on China famous brand Dongfeng 4x4 truck chassis. It is a very popular for off-road truck chassis.
The GL-III truck borehole drilling rig can drill max. 400m deep, The mud pump flow is 600l/min.
Drill rig support form and drill rig mast up-down is hydraulic type.
The drill pipe can be 76mm,89mm, 95mm, 114mm, 133mm etc.
The max drilling dia. would be 1.5m
Tehnical Parameter:
| GL-III Truck Mounted Water Well Drilling Rig | |
| Drilling Parameter | |
| Hole diameter: | 120--1500(mm) |
| Hole depth: | 400(m) |
| Run Of Rod: | 3,4(m) |
| Drill rod diameter: | φ73 φ89 φ95 φ133(mm) |
| Drilling Technology: | Normaland Reverse Circulation for both Mud and Air |
| Down-The-Hole hammers: | Middle-High-Pressure Air |
| Performance parameter | |
| Drill Head Inside Diameter: | φ80 φ120 |
| Drill Head Spin Speed: | A(Forward:20-33-73,Reverse:13-23-47r/min) |
| B(Forward:41-66-146,Reverse:26-43-94r/min) | |
| B(Forward:36-58-127,Reverse:23-37-80r/min) | |
| Shape Parameters | |
| Dimensions: | (L-W-H) Working conditions 9600×2950×7900(mm) |
| Transport status: | (L-W-H) 10200×2470×3300(mm) |
| Supporting Form: | Hydraulic Unit |
| Mast Up-Down: | Hydraulic Unit |
| Rig mass: | 12500(Kg) |
| Chassis: | Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive) |
| Power Unit: | Diesel Engine |
| Power: | 84(kW) |
| Pump: | BW600/30 Mud Pump |
| Flow(m³/h): | 720 513 335 |
| Pressure(MP): | 3 4 5 |
| Main Hoist Lifting Force: | 25(kN) |
| Auxiliary Hoist Lifting Force: | 8(kN) |
| Notes: Drill head spin speed can be selected, A is normal |
|
