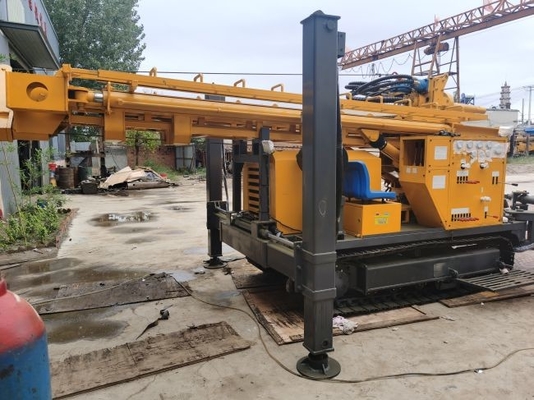

GL300S water well drilling rig is especially suitable for water intake in mountainous and rocky strata. GL300S water well drilling machine need use together with air compressor, it can add mud pump and foam pump .
It need use different drilling tools like:drilling rod ,hammer,rock drill bits ,etc
1. High power, fast drilling speed and low unit fuel consumption;
2. The structure design of the whole machine is reasonable, the stability is good, the lifting force is large, and the drilling depth is deeper.
3. Adopting special plunger pump for excavator, variable can be carried out under different working conditions, which can adapt to more complicated working conditions.
4. The steel hydraulic crawler chassis is especially superior in muddy areas.
5. With hydraulic high outriggers, it is convenient for the drilling rig to be loaded and moved, reducing the cost of hoisting. When drilling, the outriggers can also assist in leveling and stabilizing the drilling rig.
| Max drilling depth | 330m |
| Drilling diameter | 105-300mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102mm |
| Main shaft pressure | 6T |
| Lifting force | 20T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 40m/min |
| Rotary torque | 8900 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.35-1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 7.8T |
| Dimension | 4.9m x 2m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 77KW(Yuchai) |
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
