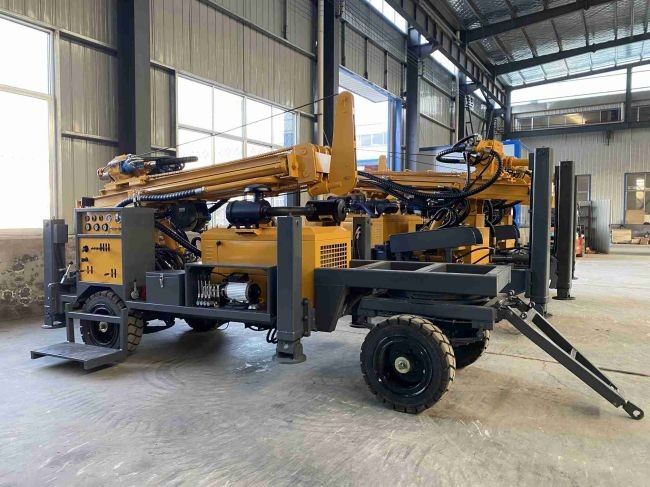

Deep Hydraulic Trailer Water Well Rig 300M Portable Trailer Water Well Drill Rig
Description:
GL260T water well drill rig is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.
It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
The whole machine is full hydraulic drive and has low failure rate.
The drill mast assembly has a hydraulic compensation mechanism.
This drill rig is equipped with 70kw diesel engine.
The drilling depth can be reached to 300m and hole dia. is range 140mm to 305mm.
GL260T trailer water well drill rig can both drill with air compressor and mud pump. We can equip a suitable mud pump or air compressor according to clients requirement.
Tehnical Parameter:
| The hole diameter (mm) | 145-305 |
| Drilling depth (m) | 300 |
| Drill pipe diameter (mm) | 76 or 89mm |
| Drill pipe length(m) | 1.5m, 2m, 3m |
| Power(kw) | 70 |
| Rotating torque(N.m) | 4000-5300 |
| Dimension(mm) | 4000x1850x2300 |
| The weight (T) | 6.5 |
| Equipped with hammer | Medium and high air pressure series |
Features:
GL260T drill rig can work with high pressure dth hammer and bits.
The air consumption is 71-31m3/min, air pressure is 1.7-3Mpa.
Rotating torque is max. 5300N.m
High leg stroke is 1.4m, which can be easily load into the truck while transport.
The penetration efficiency is 10-35m per hour.
Lifting force is 15Ton.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 20days after receiving payment, the drilling tools would be about 3-5 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
