GL130T Trailer Water Well Drill Rig For 130m Capacity Air Compressor Drilling
Description:
GL130T widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.
Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient.
GL130T can drill 100mm to 219mm, max. drilling depth is 130m. This model is compact design, it can work with 76mm or 89mm drill rods. Drill rods length are 1.5m or 2m per piece.
The power of GL130T drill rig is 32HP.
It is normally work with air compressor, the working pressure is 1.45-2.5MPA, air consuption is 15-29m3/min. We can also equip a suitable compressor for clients according to requirement.
Features:

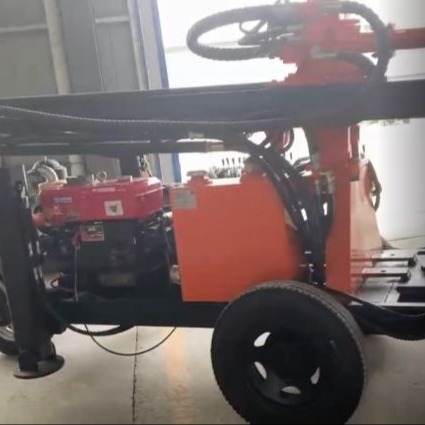

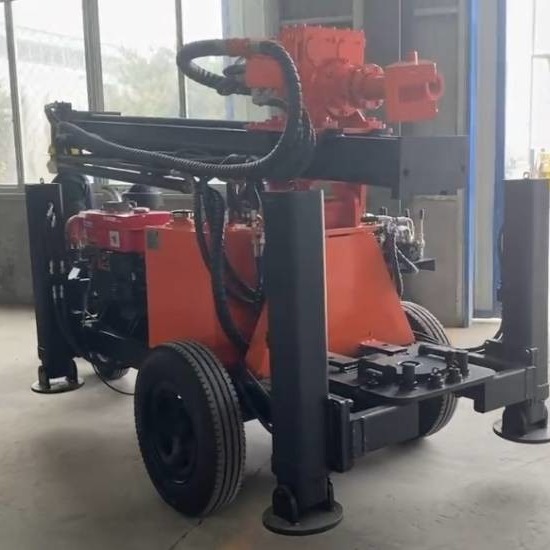

The drilling rig is three-wheeled trailer type, which is easy to transport and moving.
High efficiency drilling with hydraulic feeding structure.
This drill rig is equipped with Changchai 32HP diesel engine.
Small dimension and light weight.
It is easy to operate.
Tehnical Parameter:
| The hole diameter (mm) | 110-219 |
| Drilling depth (m) | 130 |
| Drill pipe diameter (mm) | 89mm |
| Drill pipe length(m) | 1.5/2 m |
| Power(HP) | 32 |
| Rotating torque(N.m) | 4000-5300 |
| The weight (KG) | 3000 |
| Dimension | 3580*1560*2050MM |
