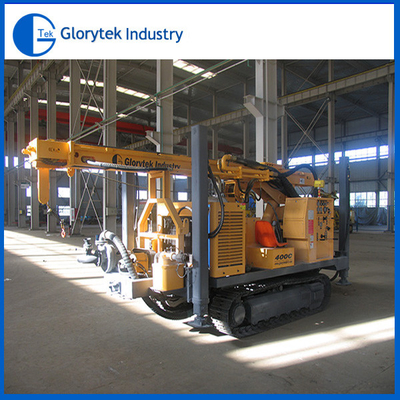

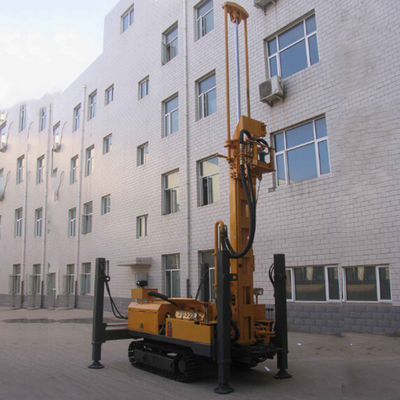

400C 250m Borehole Full Hydraulic Steel Water Well Drill Rig with Steel Crawler
Description:
400C water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
We can supply crawler mounted water well drilling rigs which are able to drill 180, 200, 300, 350, 400, 500, 600, 800m deep with various hole diameter.
We can supply water well drilling rigs and full set of drilling tools suitable for air compressor drilling and mud pump drilling. Just send us your detailed requirements, we will offer you professionl selection service and recommend the most suitable model.
Tehnical Parameter:
|
Model:
|
400C
|
Max. drill depth:
|
250m
|
|
Drill diameter:
|
110-325mm
|
Diesel Engine:
|
93KW (Cummins)
|
|
Working air pressure:
|
1.05-2.46MPa
|
Air consumption:
|
16-34 m³/min
|
|
Drill rod length:
|
3m
|
Drill rod diameter:
|
89mm/76mm
|
|
Axial pressure:
|
5t
|
Lifting force:
|
12t
|
|
Slow lifting speed:
|
4m/min
|
Fast lifting speed:
|
14.5m/min
|
|
Slow feed speed:
|
6.2m/min
|
Fast feed speed:
|
25m/min
|
|
Rotation torque:
|
5700-6600Nm, 2820-3300Nm
|
Rotation speed:
|
0-90r/min, 0-180r/min
|
|
Drilling Method:
|
Downhole hammer or Mud Drilling
|
Whole dimension:
|
6×2.1×2.8m
|
|
Travel speed:
|
3.5Km/h
|
Hammer:
|
Medium or high air pressure series
|
|
Grade ability:
|
21°
|
Weight:
|
7.8 t
|
|
Application formation:
|
Unconsolidated layer or bedding rock
|
||
Advantage:
1).The rig can create jobs in different formations, hole depth 250m.
2).The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor air inlet design, prolong the service life of diesel engine.
3).The rig adopts a special crawler chassis of engineering machinery, strong cross-country performance.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
