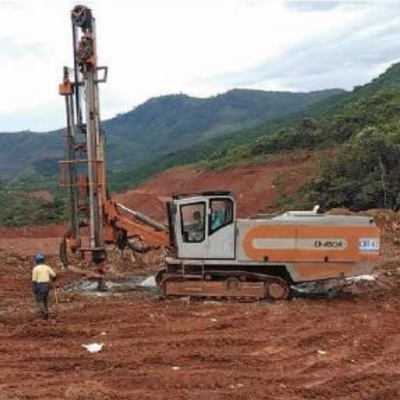

Our Rock Drilling Fully Hydraulic Integrated Down-The-Hole Drill Rig Machines hole range of 138-165 Mm makes it ideal for a variety of applications, from mining to construction and more.

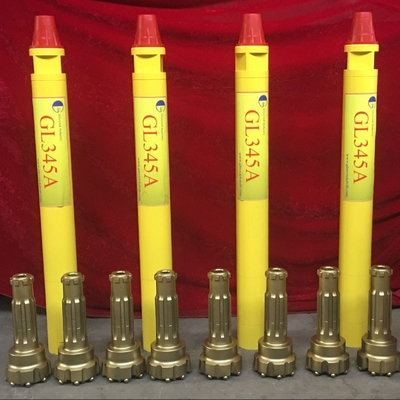

One of the standout features of this DTH drill rig is its recommended DTH hammer size of 5"/6". This size is perfect for drilling through tough materials like rock, and will help you get the job done quickly and efficiently.
Overall, the Integrated DTH drill rig is a top-of-the-line machine that is perfect for anyone in need of a reliable and high-performance drilling rig. Whether you're a mining company or a construction crew, this DTH drill rig will help you get the job done right.
| Blasthole drilling rig | |
| Fuel tank capacity | 750 L |
| Drill pipe length | 6,000/5,000/7,000 Mm |
| Hole range | 138-165 Mm |
| Recommended DTH hammer size | 5"/6" |
| Dimensions | 11,560x2,700x3,560 Mm |
| Maximum working pressure | 24 Bar |
| Drill pipe OD | 114/102 Mm |
| Capacity FAD | 21 M3 / Min |
| Maximum hole depth with Auto handling | 35 M |
| Ground clearance | 420 Mm |
| Air Compressor DTH Drill Rig | |
| Rock Drill Rig |
The technical support and services for our Drill Rig Machines product include:
Our team of experienced technicians and engineers are dedicated to providing the highest level of support and service to our customers.
