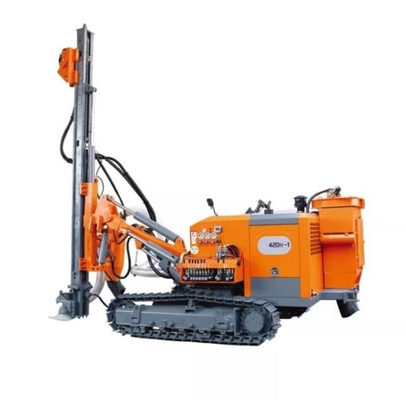

GL-420 hard rock down the hole Drill Rig Machines for open pit
Description:
Standard equipped with Yuchai 4 cylinder Diesel engine YCDK80 or YC4DK100 and 55 kW Electric motor.
All structural parts reinforced for various work conditions.
The rotation unit driven by cycloid motor for higher torque and larger hole range.
New enclosure design for better appearance and convenient for maintenance and service. Optional dry dust collector for dust free drilling, more environment friendly and energy saving.
Details:

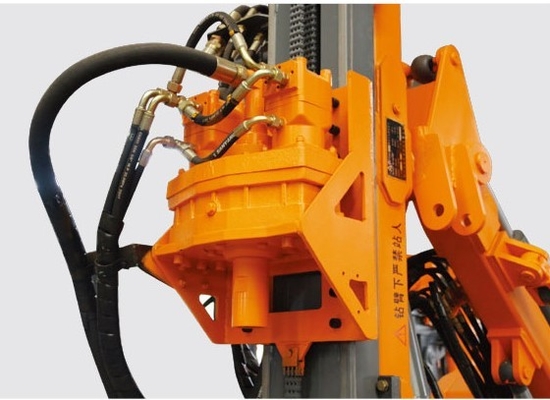

Own rotation unit driven by double cycloid motor for more powerful rotation and less drill tools jamming.
Standard equipped with box type tramming beam and international standard construction machinery tramming tracks.
Standard equipped with plunger piston motor for greater climbility and more reliable quality.
Tehnical Parameter:
| Hole depth | 30 m |
| Drill pipe sizes | 76 mm x 3,000 mm |
| Hole diameter | φ110 -138 mm |
| Hammer | 4”/5" |
| Rotation torque (max.) | 2500rpm |
| Rotation speed | 0 -100 rpm |
| Total Weight | 5,200 kg/5,500 kg |
| (LxWxH) Transportation Dimensions | 5,100 X 2,260 X 2,500 mm |
| Diesel engine | 58kw |
Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.
Contact us for more details.
Warranty:
For drill rig main parts, if proved because of quality issue, we can replace them free of charge within one year after shipping.
