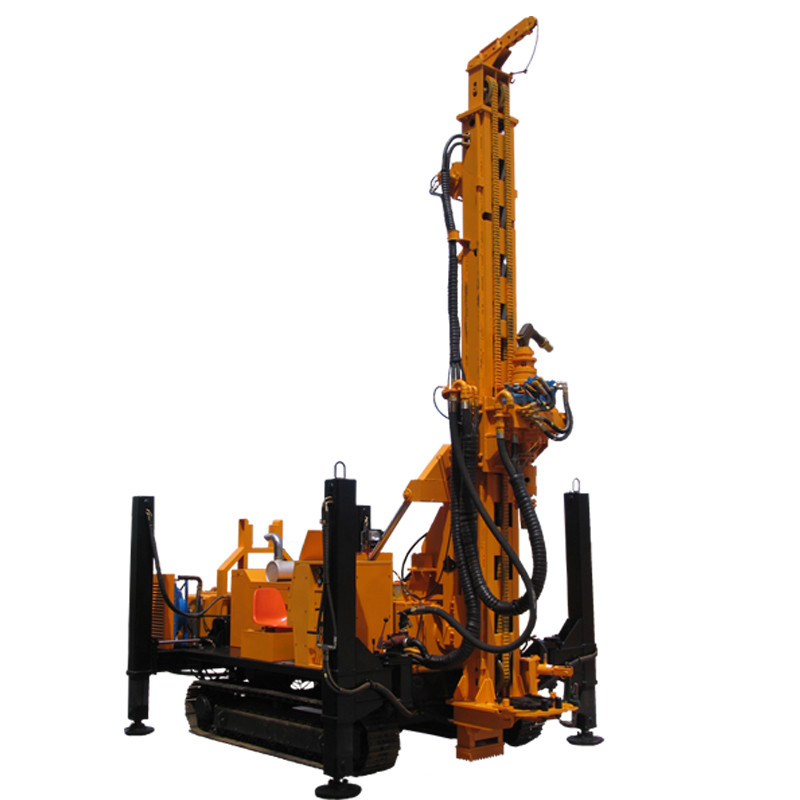

500A 400m Full-Hydraulic Well Drill Rig Machines With Crawler Chassis
Description:
This kind of drilling rig is suitable for water well or Piliing engineering etc. This machine has high drilling efficiency and high cost performance. It equipped with diesel engine-driving hydraulic system. Travel, rotate, feed, hoist, land, lift, unload, and so on all are run by hydraulic components.

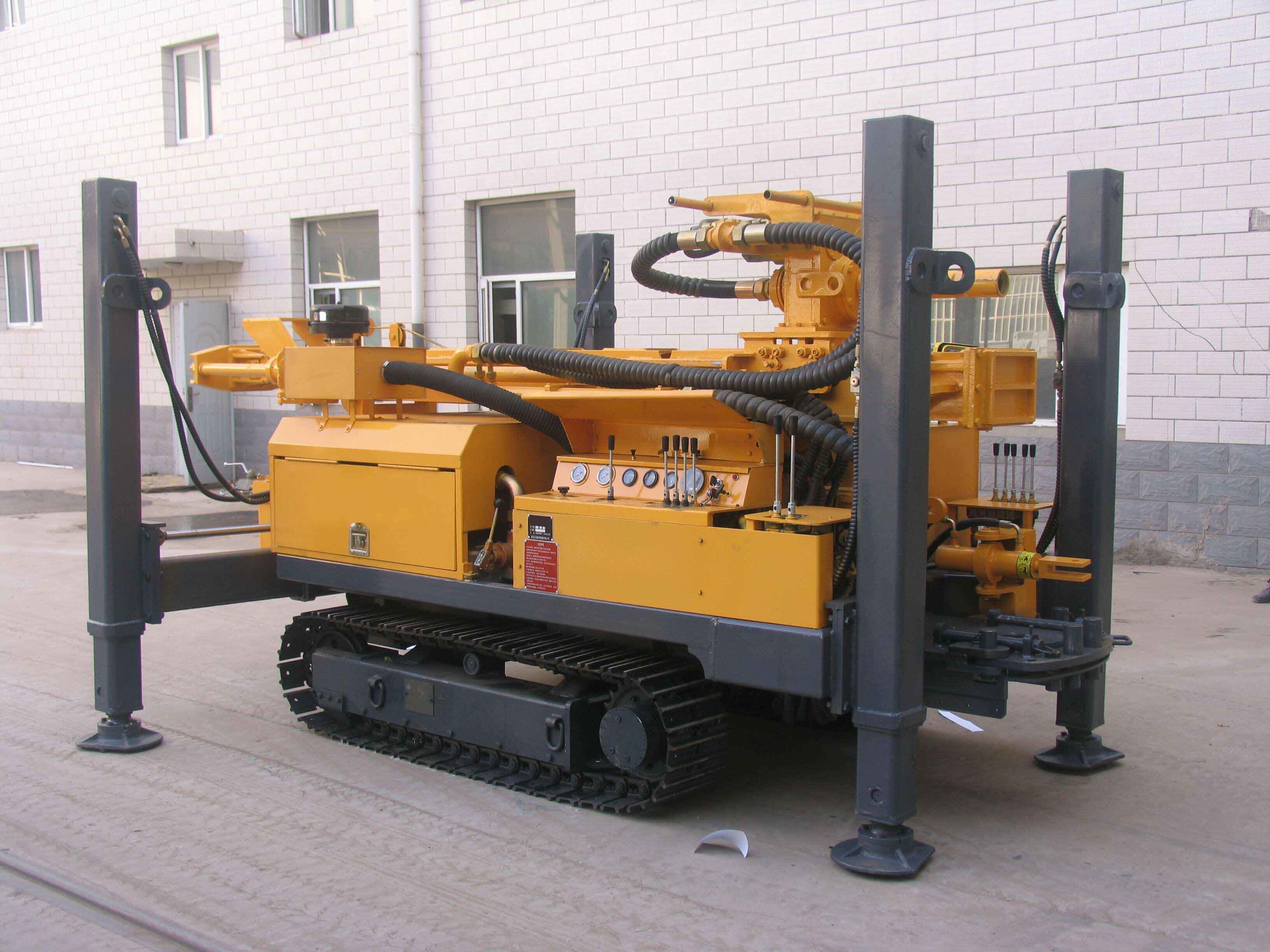

It uses crawler self-driven structure travel mode and by using crawler chassis, it is easy to move. We equipped this machine with steel track link(Inlaying rubber block is in option which is easy to travel on city streets)
Tehnical Parameter:
|
Model:
|
500A | Drilling Depth |
400m
|
|
Drill diameter:
|
110-450mm
|
Reverse drill rod:
|
108mm;127mm(Optional) |
|
Working air pressure:
|
1.05-3.45Mpa |
Air consumption:
|
16-85 m³/min |
|
Drill rod length:
|
3m
|
Drill rod diameter:
|
89mm;108mm; 114mm;140mm |
|
Axial pressure:
|
5t
|
Lifting force:
|
20t
|
|
Slow lifting speed:
|
4.2m/min
|
Fast lifting speed:
|
30m/min
|
|
Slow feed speed:
|
5.2m/min
|
Fast feed speed:
|
37m/min
|
|
Rotation torque:
|
8500Nm; 4250Nm |
Rotation speed:
|
0-90r/min; 0-180r/min |
| High landing leg travel distance: | 1400mm(Optional) | Penetration rate: | 10-25m/h(Down hole drilling with hammer) |
|
Drilling Method:
|
Downhole hammer or Mud Drilling
|
Whole dimension:
|
6.5×2.1×2.8m |
|
Travel speed:
|
2.5Km/h
|
Hammer:
|
Intermediate or high air pressure series |
|
Grade ability:
|
21°
|
Weight:
|
11.5 t
|
|
Application formation:
|
Unconsolidated layer or bedding rock
|
||
| Application: | Water well or Piliing engineering | ||
