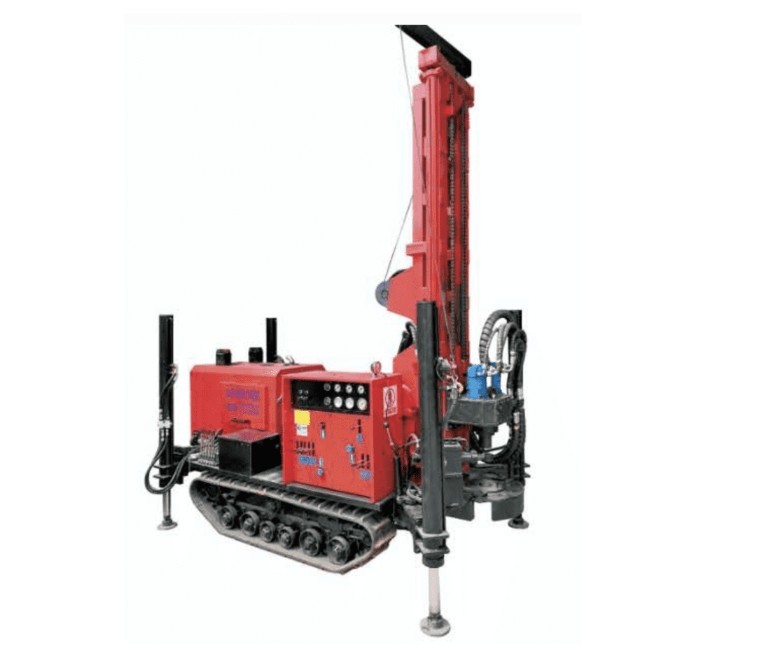

GL180R 180m Rubber Crawler Water Well Drill Rig Machines For Borehole Drilling
Description:
GL180R water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc..
GL180R is available for both mud pump drilling and air compressor drilling. We can supply good performance mud pump and air compressor with full set of drilling tools. All the products are with high quality and competitive price. Welcome contact for more information.
Tehnical Parameter:
| Item | Specification |
| Weight of the rig(T) | 3.6 |
| Drilling diameter(mm) | 138-203 |
| Drilling depth (m) | 180 |
| Feeding stroke(m) | 3.5 |
| Moving speed(km/h) | 2.5 |
| Climbing ability(°) | 30 |
| Diesel engine(kw) | 60 |
| Air pressure (mpa) | 1.8-2.3 |
| Air consumption(m³/min) | 17-31 |
| Rod diameter(mm) | Φ76 φ89 |
| Rod length (m) | 1.5 3.0 |
| Lifting force (T) | 12 |
| Rotary speed (r/min) | 35-60 |
| Rotary torque(N.m) | 4500 |
| Supporting legs (height*width)(mm) | 1100*2400 |
| Rig dimensions(length*width*height)(mm) | 3000*1300*1850 |
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

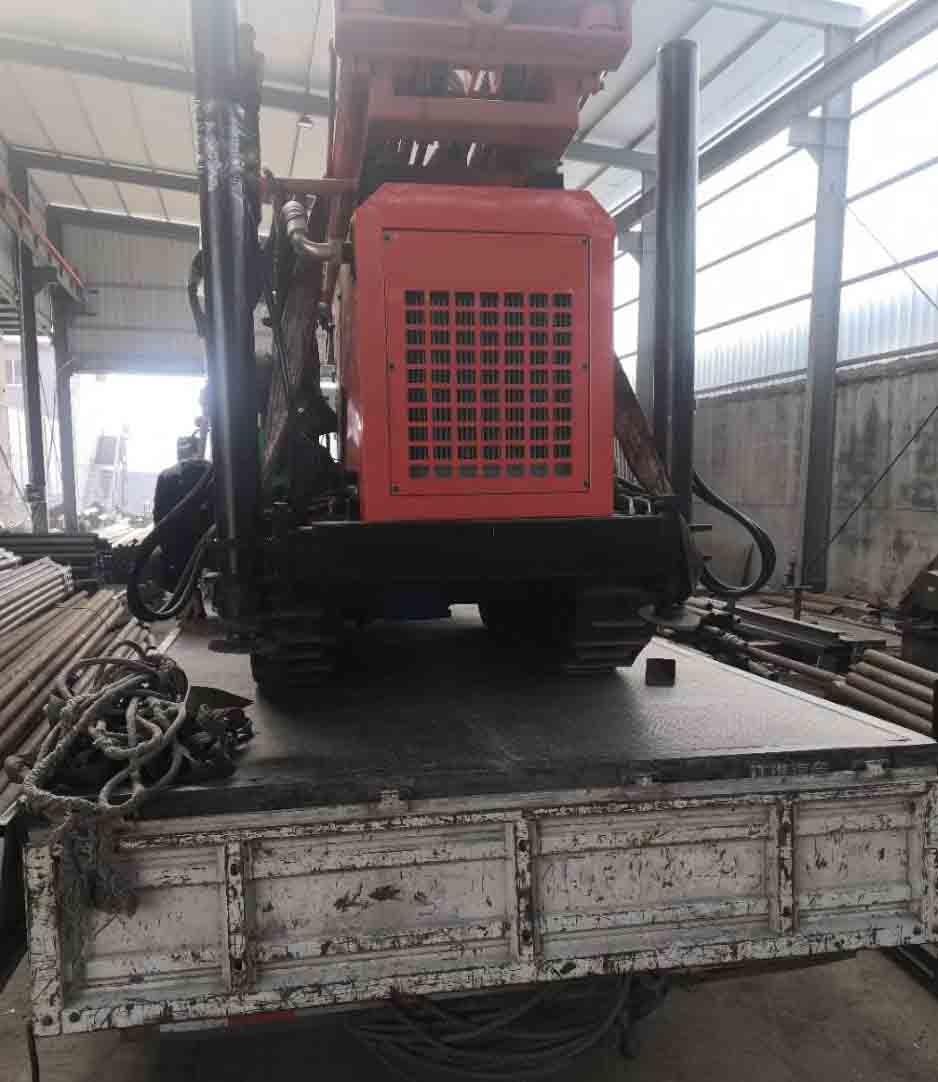

Packing and Transport
We packed products in standard exporting packing. Normally it will take around 20-25 days for production.
We have built good and long-term relationship with our clients. Till now, we have been supplying drilling equipment and drilling tools for over 20 years. And our products have been supporting our clients' local sale and projects in over 60 countries. Welcome trial orders to test the quality!
FAQ
Q: Are you original manufacturer or trading company?
