One of the outstanding features of the Drill Rig Machines is its drill pipe handling capacity. This product has a 4+1 drill pipe handling capacity, which is ideal for drilling operations that require multiple drill pipes. Additionally, the Drill Rig Machines come with a high-strength aluminum alloy feed beam that provides better stability and precision during the drilling process.
Another essential attribute of the Drill Rig Machines is its ground clearance. The product has a ground clearance of 420 mm, which enables the machine to navigate through rough terrain with ease. This feature makes the Drill Rig Machines ideal for drilling operations that require mobility and flexibility.
The Drill Rig Machines are designed to work with drill pipes of various sizes. The product's standard drill pipe OD is 114 mm, but it also has an optional 102 mm and 127 mm drill pipe OD. Additionally, the Drill Rig Machines come with different drill pipe lengths, including 7 m, 5 m, and 6 m, to match the specific drilling needs of the user.

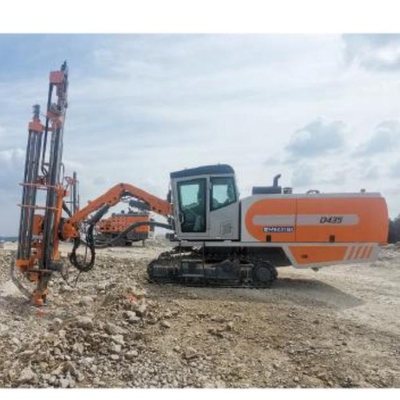

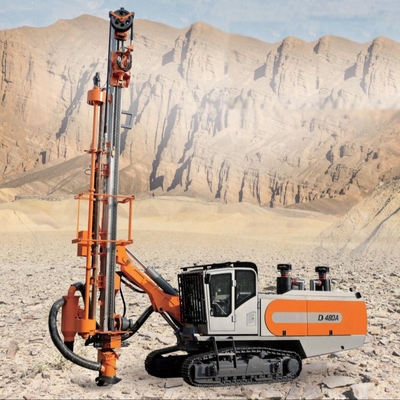

The surface integrated drill rig is designed for drilling in surface mines and quarries. The Drill Rig Machines product is a must-have for any drilling operation. With its exceptional features and capabilities, this product can handle any drilling task with precision and efficiency. Whether you need to drill through hard rocks or surface mines, the Drill Rig Machines are the perfect solution for all your drilling needs.
| Technical Parameters | Values |
|---|---|
| Product Name | Integrated Blasthole drilling rig |
| Air Compressor on Board | DTH Drill Rig |
| Surface Integrated Drill Rig | |
| Drill pipe OD | 114 Mm ( Optional 102 / 127 Mm ) |
| Rotation speed | 0 - 80 Rpm |
| Slope climbing ability | 25 Degree |
| Feed beam | High Strength Aluminum Alloy |
| Maximum torque | 5,600 N.m |
| Drill pipe length | 7 M ( Optional 5 / 6 M ) |
| Maximum working pressure | 25 Bar (362.5 Psi) |
| Maximum hole depth with Auto handling | 35 M |
| Ground clearance | 420 Mm |
| Drill pipe handling capacity | 4+1 |
Our Drill Rig Machines are backed by our comprehensive technical support and services to ensure maximum uptime and productivity. Our team of experienced technicians are available to provide on-site support for installation, commissioning, and maintenance of the equipment. We also offer training programs for operators and maintenance personnel to ensure safe and efficient operation of the machines. In addition, we provide spare parts and technical documentation to support our customers in the event of any issues. Our goal is to provide our customers with the highest level of support and services to ensure their satisfaction and success.
