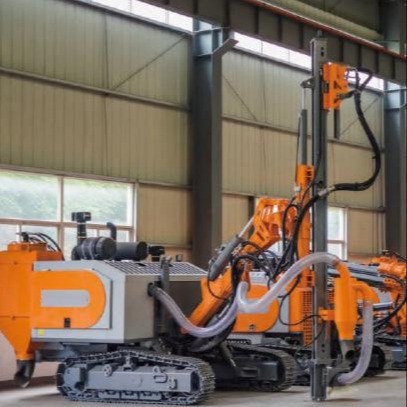

Our Surface Integrated Drilling Rig is designed to drill holes in the range of 152-203 mm, making it perfect for drilling blastholes in mining operations. The dimensions of the rig are 12,560x2,700x3,560 mm, which provides ample space for the operators to perform their duties. The Ground clearance of 420 mm ensures that the rig can move smoothly on uneven terrain.
One of the most significant features of our Integrated Blasthole drilling rig is its Capacity FAD of 33 M3/Min. This high capacity ensures that the drilling process is completed quickly, saving time and effort. Additionally, the Rotation speed of 0-80 Rpm provides the necessary speed and torque to drill through hard rock formations.
At our company, we understand the importance of safety, efficiency, and durability. That's why our Rock Drill Rig is built with the highest quality materials, ensuring longevity and reliability. Our rig is also equipped with advanced safety features, including emergency stop buttons, safety barriers, and other precautionary measures.
In conclusion, our Surface Integrated Drilling Rig is the perfect addition to any mining operation. Its advanced features, high capacity, and safety measures make it a reliable and efficient choice for blasthole drilling. Contact us to learn more about our Rock Drill Rig and other drilling equipment.
| Fully hydraulic DTH drilling rig | |
| Air Compressor on Board DTH Drill Rig | |
| Integrated Drill Rig | |
| Maximum hole depth with Auto handling: | 35 M |
| Feed beam: | High Strength Aluminum Alloy |
| Drill pipe length: | 7 M ( Optional 5 / 6 M ) |
| Maximum working pressure: | 25 Bar(362.5 Psi) |
| Hole range: | 152 - 203 Mm |
| Maximum torque: | 5,600 N.m |
| Ground clearance: | 420 Mm |
| Recommended DTH hammer size: | 6"(Optional 7"/8") |
| Slope climbing ability: | 25 Degree |
| Drill pipe OD: | 114 Mm ( Optional 102 / 127 Mm ) |
Our Drill Rig Machines are designed and built to the highest standards of quality and reliability. We take pride in providing excellent technical support and services to our customers, ensuring that our products continue to perform at their best throughout their lifespan.
Our technical support team is available to answer any questions and provide assistance with troubleshooting, maintenance, and repairs. We also offer training services to ensure that operators and maintenance personnel have the knowledge and skills required to operate and maintain our machines safely and effectively.
In addition, we offer a range of services to help our customers maximize the performance and lifespan of their Drill Rig Machines. These services include preventative maintenance programs, on-site repairs, and parts replacement. We also provide regular updates and upgrades to our machines to ensure that they remain at the cutting edge of technology and performance.
