With a maximum hole depth of 35 meters and the ability to handle automatic drilling operations, the rock drill rig is capable of tackling even the most challenging drilling tasks. The hole range of 152 ‒ 203 mm makes it suitable for a wide range of applications, and the drill pipe length of 7 meters (optional 5/6 meters) provides the flexibility to adapt to different drilling situations.
The recommended DTH hammer size of 6" (optional 7"/8") ensures that the rock drill rig can deliver the power and speed needed to quickly and efficiently drill through hard rock formations. And with transport dimensions of 12,560*2,700*3,560 mm, the rock drill rig is easy to transport between job sites.
Overall, the air compressor rock drill rig, crawler rock drill rig, and quarry hammer rock drill rig are all excellent choices for anyone in need of a powerful, versatile, and highly mobile drilling machine. Whether you're drilling in a quarry, a mine, or a construction site, the rock drill rig is sure to get the job done quickly and efficiently.
This air compressor rock drill rig is suitable for quarry hammer rock drilling operations.
| Product Attribute | Value |
| Product | Quarry Hammer Rock Drill Rig |
| Maximum Torque | 5,600 N.m |
| Weight | 25,000kg |
| Maximum Hole Depth with Auto Handling | 35 M |
| Recommended DTH Hammer Size | 6" (Optional 7"/8") |
| Transport Dimensions | 12,560*2,700*3,560 Mm |
| Drill Pipe OD | 114 Mm (Optional 102 / 127 Mm) |
| Drill Pipe Handling Capacity | 4+1 |
| Boom Type | Heavy Duty Single Boom |
| Rotation Speed | 0 - 80 Rpm |
| Air Compressor | 25 Bar (362.5 Psi), 33 M3 / Min |
| Product | Air Compressor Rock Drill Rig |
| Product | Integrated Rock Drill Rig with Cab |

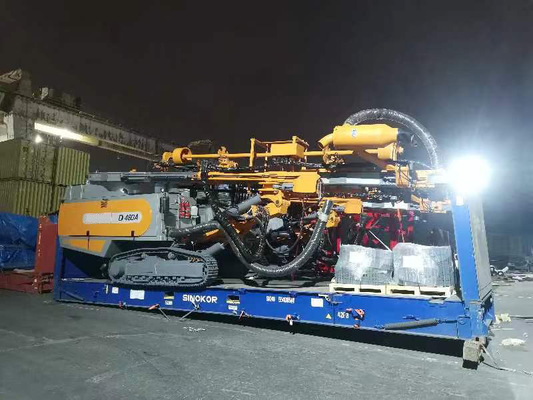

Glorytek D480A rock drill rig is a powerful and efficient drilling equipment designed for mining blast hole drilling. It is made in China and boasts a rotation speed of 0 - 80 Rpm. With a weight of 25,000kg, it is a heavy-duty single boom rock drill rig designed for drilling holes in challenging terrains.
The Glorytek D480A rock drill rig is ideal for use in open pit mining, where drilling and blasting are essential for extracting minerals from the earth. It is also suitable for drilling holes for infrastructure projects such as road construction, bridge building, and dam construction.
The 35m DTH integrated rock drill rig is recommended for drilling holes ranging from 152 to 203mm in diameter. The recommended DTH hammer size is 6", with the option of using 7" or 8" hammers for larger holes. The rock drill rig is powered by a diesel engine, making it suitable for use in remote areas with no access to electricity.
The Glorytek D480A rock drill rig comes with a standard exporting packing for easy transportation. The minimum order quantity is 1 set, and the price is $380,000. The delivery time is 45 days after payment is made through T/T. The supply ability is 20 sets per month, ensuring that customers can get the rock drill rig when they need it.
The open pit integrated rock drill rig is designed to withstand harsh conditions, making it ideal for use in mining and construction projects. Its heavy-duty construction ensures that it can handle tough drilling conditions and produce high-quality holes. The rock drill rig is easy to operate and maintain, making it an excellent investment for any project that requires drilling.
Product Packaging:
Shipping Information:
Q: What is the brand name of this rock drill rig?
A: The brand name of this rock drill rig is Glorytek.
Q: What is the model number of this rock drill rig?
A: The model number of this rock drill rig is D480A.
Q: Where is this rock drill rig manufactured?
A: This rock drill rig is manufactured in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: What is the price of this rock drill rig?
A: The price of this rock drill rig is $380,000.
Q: What is the delivery time for this product?
A: The delivery time for this product is 45 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T.
Q: What is the supply ability for this product?
A: The supply ability for this product is 20 sets per month.
Q: How is the product packaged for shipping?
A: The product is packaged using standard exporting packing.
