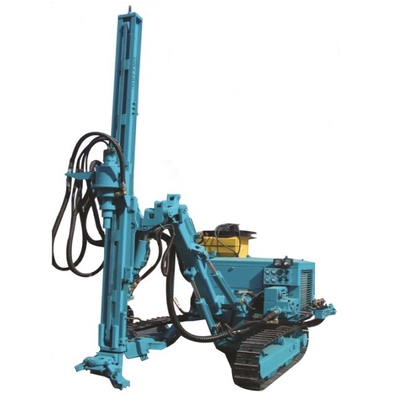

GL120YG-A Surface Mining DTH Hard Rock Max. 90m Rock Drill Rig For Open Pit Drilling
GL120YG-A High Air Pressure Drill Rig powered by diesel engine or electric motor to drive hydraulic system, which providing power for hydraulic motor walking, rotation, pushing and lifting, cylinder angle positioning, hydraulic winch etc..
It is multi-angle drilling, strong gradeability, floating adjustable parallel, fast drilling speed and flexible.
It can save more than 30% energy compared with pneumatic drill.
The drilling speed can be 20-35 m per hour with the rock rigidity f=6-18, especially suit for large gradient, frequent movement, Multi-angle work.

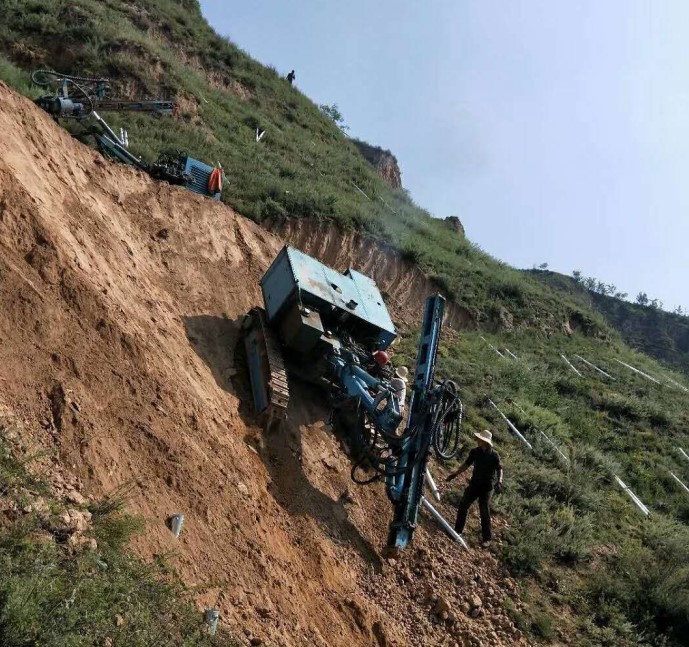

It is mainly used for surface mining, stone works projects, conservancy and hydropower, road construction and solar panel working.
| GL120YG-A High Air Pressure Drill Rig Technical Specification | |||||
| air pressure | 1.05-2.46 MPa | drill rod diameter | 76mm or 89mm | travelling speed | 0-2.5km/h |
| air consumption | 11.3-28 m³/min | compensative stroke | 1200mm | rotary speed | 0-90pm |
| hole diameter | 105-165mm | max lift up | ≥30000N | rotary torque | 3000N.M |
| equipped with hammer | 4,5,6 inc | ||||
| hole depth | 30-90m | angle of frame | up 45°,down 60° | weight | 7000kg |
| max hole | 3200mm | frame swing | left 50°,right 35° | overall dimensions | 6900*2300*2400mm |
| min hole | 650mm | stick swing | left and right 45° | dusting method | wet type or dry type |
| push displacement | 3000mm | grade ability | 26° | power | 70kw(Yuchai) 37kw(electrical machine) |
We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.
Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. Wee are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.
Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
