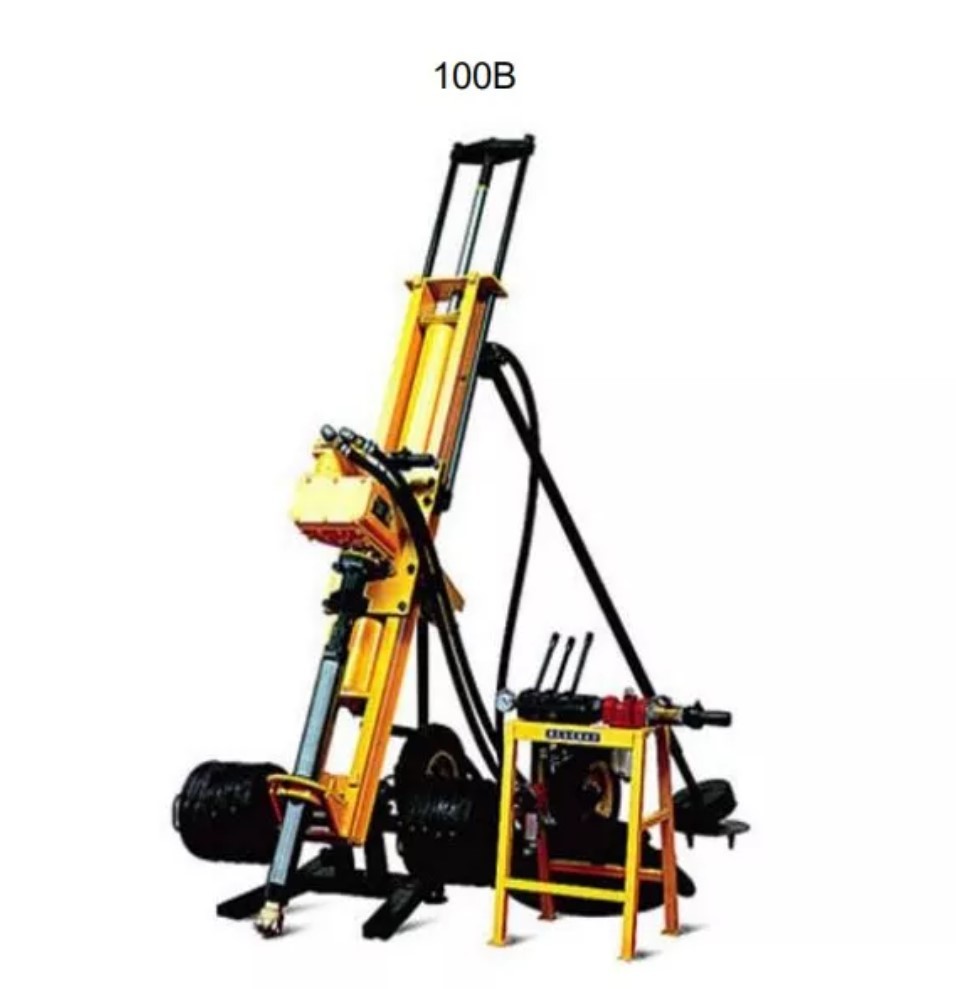

100B Mini Pneumatic Driven Low Pressure Rock Drill Rig for Blast Hole Drilling
Description:

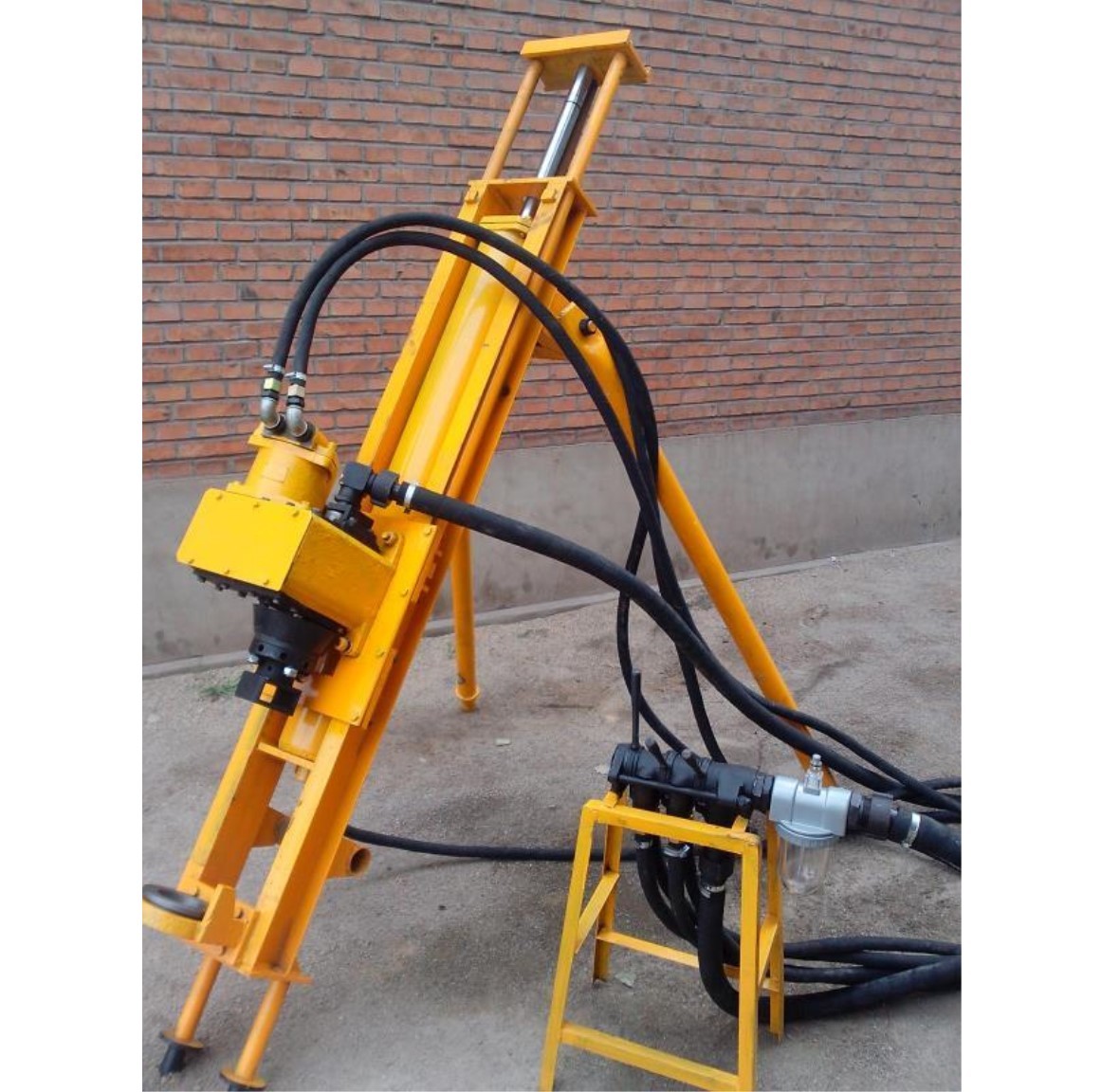

100B and 100D DTH drill rig is a kind of light and effective drill rig. It is cheaper and easier to be operated and repaired, especially to be used in stonework drilling, such as water and electricity project, construction of roads and national defense engineering. This machine can be applied for the rock hardness f=8-16 grade.
100B is pneumatic driven model and 100D is electric motor driven model, they both could be matched with low pressure and medium pressure air compressor.
Tehnical Parameter:
|
Technical Parameters
|
||
|
|
100B/D Low Pressure
|
100B/D Medium Pressure
|
|
Rock Rigidity
|
f =8-16
|
f =8-16
|
|
Hole Diameter
|
68-100mm
|
68-100mm
|
|
Hole Depth
|
20m
|
25m
|
|
Air Pressure
|
0.7-0.86MPa
|
1.0-1.4MPa
|
|
Air Consumption
|
9-12m3/min
|
9-12m3/min
|
|
Feed Length
|
1000mm
|
1000mm
|
|
Rotary Rate
|
110-160r/min
|
110-160r/min
|
|
Size(L x W)
|
2400 x 470mm
|
2400 x 470mm
|
|
Weight
|
195kg
|
195kg
|
|
Water Consumption and Water Pressure
|
8-12L/min,
>air pressure 0.1-0.2Mpa
|
8-12L/min,
>air pressure 0.1-0.2Mpa
|
|
Tunnel
|
high 2.5m~3m,width≥2.5m
|
high 2.5m~3m,width≥2.5m
|
|
Angle
|
any angle
|
|
|
Drilling Efficiency(m/h)
|
||||
|
|
Low Pressure
|
Medium Pressure
|
||
|
Hole Diameter(mm)
|
90
|
100
|
90
|
100
|
|
Air Consumption(m3/min)
|
9.8/(6.8)
|
7.4/10.4
|
9.8/(12)
|
106/(12)
|
|
Suitable Air Compressor
|
0.7-0.86Mpa
|
1.0-1.4Mpa
|
||
|
Hole Depth(m)
|
20
|
|
25
|
|
|
Drilling Efficiency(m/h)
|
7~9
|
5~8
|
10~15
|
9~14
|
|
Recommended Row Spacing(m)
|
3
|
3
|
3
|
3
|
|
Recommended Hole Distance(m)
|
3
|
3.5
|
3
|
3.5
|
