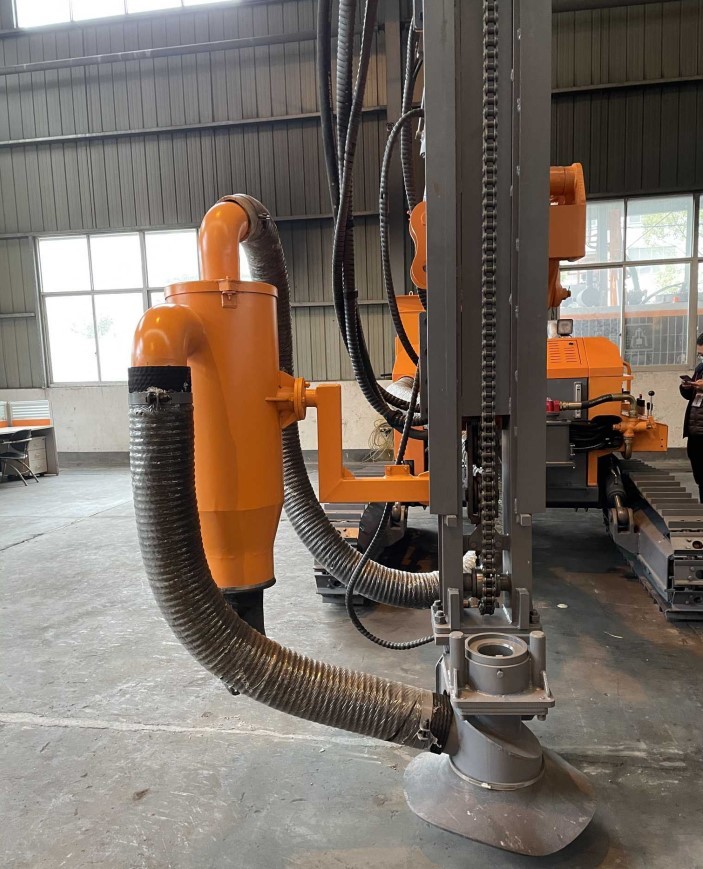

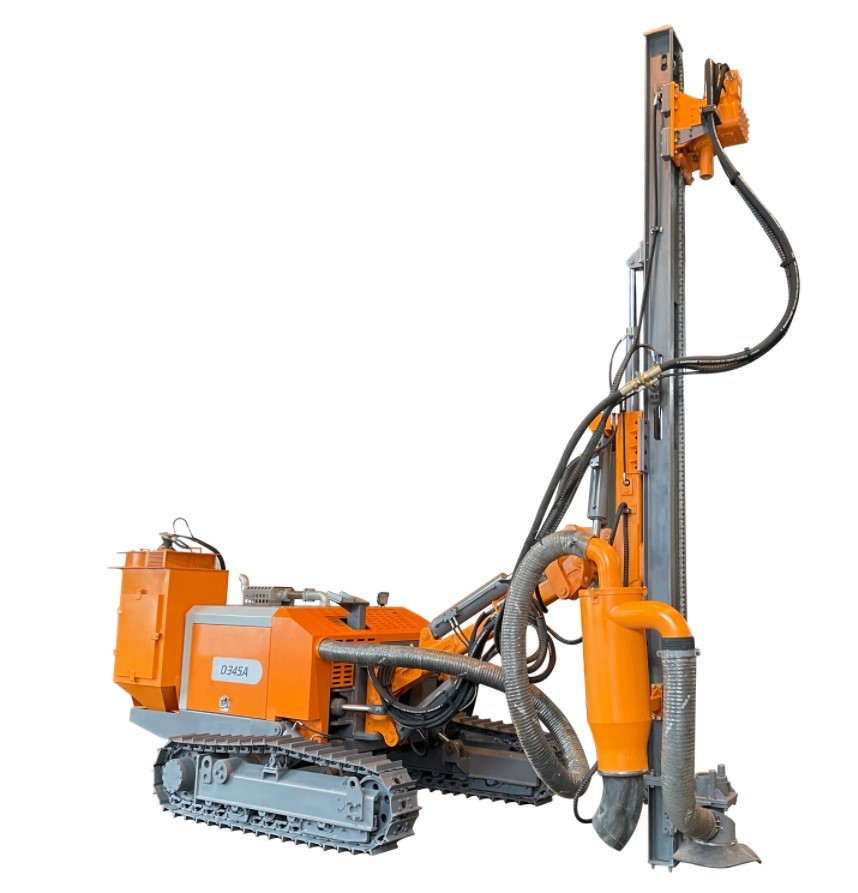

D345A Rock Drilling Pneumatic DTH Drilling Rig 30m Rock Drill Rig With Cummins Diesel Engine
This model is the classic product series of separated drill rigs, and with full function design of super intensity and high-level configuration, is approved by many users.
High pressure oil pump for various hole sizes and working conditions. Maximum rotation torque up to 5,500 N.m as option for foundation bolting and anchoring, casing and large hole spiral drilling.
| Main Specifications | D345A III | ||
| Diesel Engine | Cummins | Emission Standard | Tier III |
| Model | QSB3.9-C80 | Capacity Fuel Tank | 80 L |
| Rated Power | 60 kW | Hammer | 4"/5 "/6" |
| Hole Range | 90-203 mm | Rotation Torque | 5600 N.m |
| Drill Pipe | φ76x3,000 mm | Drill Pipe Length | 3000 mm |
| Hole Depth | 30 m | Feed Type | Oil Cylinder+chain |
| Length of Feed Beam | 5,645 mm | Travel Length | 3,660 mm |
| Feed Extension | 960 mm | Feed Rate(Max.) | 26 m/min |
| Feed Force(Max.) | 20 kN | Lifting Force(Max.) | 45 kN |
| Tramming Speed | 2.5 km/h | Traction Force | 45 kN |
| Climbing Ability | 25° | Ground Clearance | 356 mm |
| Width | 2,250 mm | Weight(w/ooption) | 6,000 kg |
| Length | 7,000 mm | F.A.D | 8-20 m3/min |
| Height: | 2,700 mm | Workingpressure | 0.7-2.5 Mpa |
Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. Wee are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.
Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
1. Drilling machine is bare packing.
2. Drilling tools will be packed in cases or wooden boxes.
3. The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
