XY-3 Core Drilling Rig
Brief Introduction:
XY-3 series drilling rig is a shallow/ medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.
Feature:
A. The drilling rig is equipped with the advanced MW525 heavy truck transmission, featuring 10 forward gears and 2 reverse gears. This cutting-edge transmission system offers a wide range of speeds, catering to the diverse requirements of different drilling techniques.
B. The rig's spindle boasts a generous inner diameter of 96mm, driven by a robust mechanical system that delivers substantial torque. The winch is capable of lifting a maximum load of 3000kg with a single line, ensuring efficient and reliable lifting operations.
C. The operation handles are thoughtfully arranged and fixed together in a well-designed layout, enhancing convenience for operators during machine operation. This ergonomic arrangement ensures ease of use and enhances overall efficiency.
D. The spindle and winch can be operated independently, providing flexibility and versatility in drilling operations. This allows operators to control each component separately, optimizing performance and adaptability to varying drilling conditions.
E. The spindle borehole features a spacious inner diameter, enabling the use of large hexagonal drilling rods. This design allows for efficient drilling and facilitates the seamless interchangeability of drilling equipment, enhancing productivity and versatility on the job site.
Usage:
Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.
Technical Date
| Technical parameter | |
| XY-3 technical parameter | |
| Drilling depth | 100,250, 300, 600m |
| Corresponding end hole diameter | 300,200, 150, 75mm |
| Max. open hole dia. | 300mm |
| End hole dia. | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Machine Dimension | 2500 x 900 x 1800mm |
| Drill weight (with power) | 1800kg |
| 立轴 Spindle | |
| Spindle speed | Forward Low speed 30,53,88,145,222r/min |
| Forward High speed 143,250,414,684,1050r/min | |
| Reverse 29, 137r/min | |
| Spindle stroke | 600mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 6000kg |
| 卷扬机 Winch | |
| Max.Single line lifting capacity | 3000kg |
| Max.Single line lifting speed | 0.5-1.9m/s |
| Wirerope caliber | 12.5mm |
| Roller capacity | 50m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| 动力 Power unit | |
| Diesel engine YN27 | 42kW |
| Rated Speed | 2400r/min |

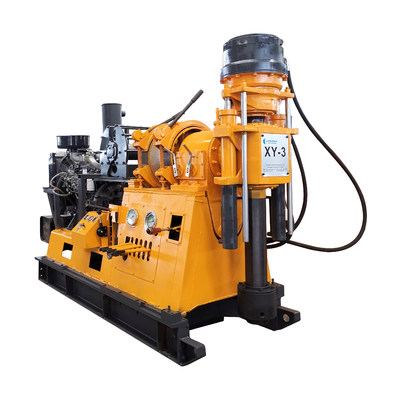

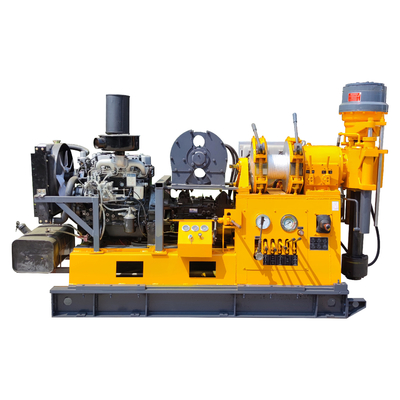

Product Picture
