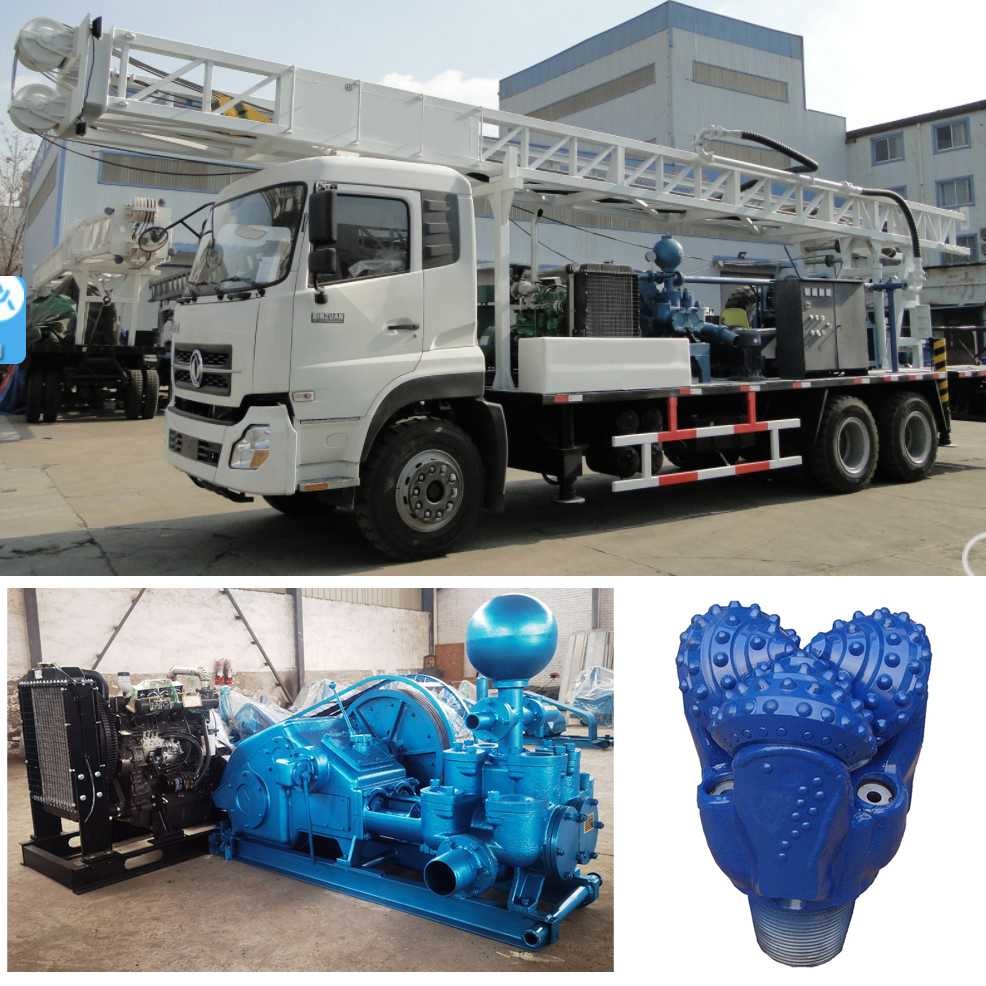

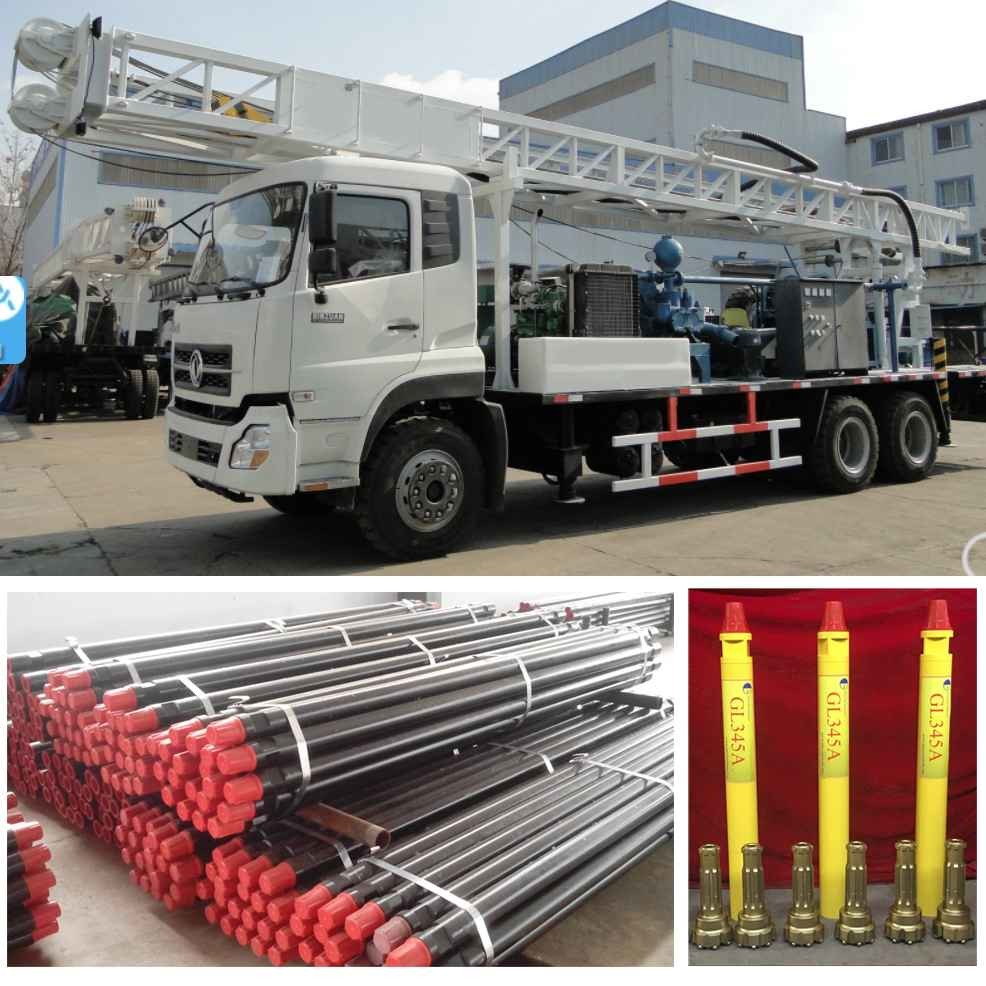

400m Truck Type Water Well Drill Rig Machines Mounted on Dongfeng 6×4 Truck Chassis
Description:
400m Truck Type Water Well Drill Rig Machines is mounted on Dongfeng 6×4 special truck chassis. The model has 11.00R20 steel wire off-road tread tires, and these tires have good off-road performance. The power it uses is Yuchai YC6J220-46 diesel engine, and the emission standard meets the national IV emission.
400m Truck Type Water Well Drill Rig Machines is one our best selling models of borehole machine. The good performance and competitive price make it very popular with our worldwide clients. Please kindly share your detailed requirements when you send us inquiry, this is to make sure that our DF400 is suitable for your projects.
Features:
1. open system design, with an oil temperature heater in winter and an oil temperature radiator in summer, suitable for drilling projects everywhere and every time.
2. hydraulic cylinder for feeding and lifting, with stepless speed adjustment. Pressurized the weight of the drill pipe and drilling tools, the automatically pressurize drilling can be realized.
Tehnical Parameter:
| Drilling depth (m) | 400 |
| Cylinder lifting force (kN/MPa) | 201/20 |
| Cylinder feed force (kN/MPa) | 53/10 |
| Main winch lifting force (single rope) (kN) | 40 |
| Main hook lifting force (2 wheels) (kN) | 160 |
| Tool hoisting force (single rope) (kN) | 20 |
| Lifting force of tool hook (single wheel) (kN) | 20 |
| Through hole diameter of turntable (mm) | 500 |
| Diesel Engine | Model |
DongFeng 6BTA5.9-C130
|
|
| Type | Water cooled four stroke turbocharged | ||
| Rated power | 97kW | ||
| Rated rotating speed | 2200rmp | ||
| Max. output torque | 560Nm/1500rmp | ||
| Mud Pump | model | BW850 | |
| Bore size (mm) | 150 | ||
| Displacement (L/min) | 850, 600 | ||
| Pump pressure (MPa) | 2, 3 | ||
| Truck Chassis | Chassis model | DFS1251GL18 | |
| Chassis form | 6×4 | ||
| Engine | Model | YC6J220-46 | |
| Type | Water-cooled four-stroke supercharged and inter-cooled | ||
| Rated power (kW) | 162 | ||
| Rated speed (rpm) | 2500 | ||
| Working status (mm) | 10900×3050×14000 | ||
| Transport state (mm) | 12700×2500×4000 | ||
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., mainly supply and munufacture top quality drilling equipment and drilling parts. Our company is located in Beijing, China. We have professional production department and our own exporting team to deal with orders from worldwide clients for decades. We have our mature models of drilling rigs and drilling tools, which have been supporting our clients drilling projects very well. We also welcome clients who want to customized products.
We have attended many exhibitions to showcase our products.
