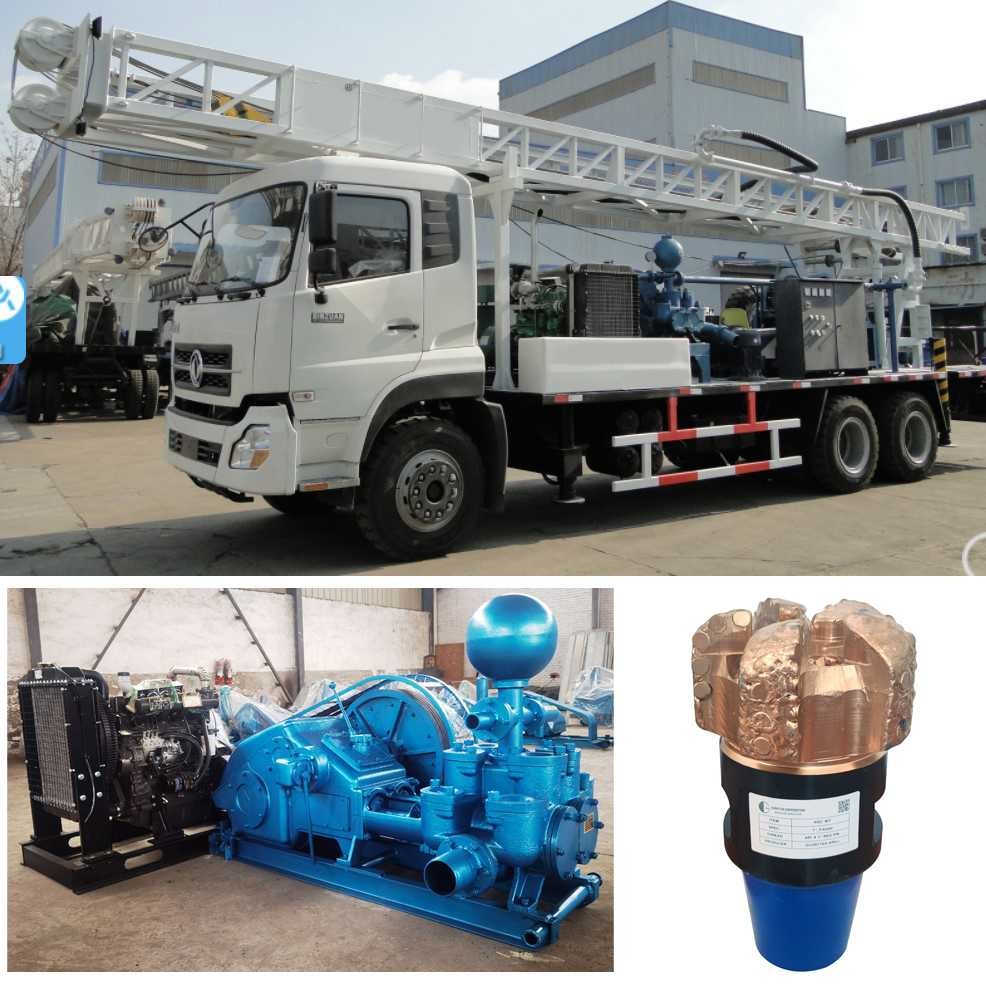

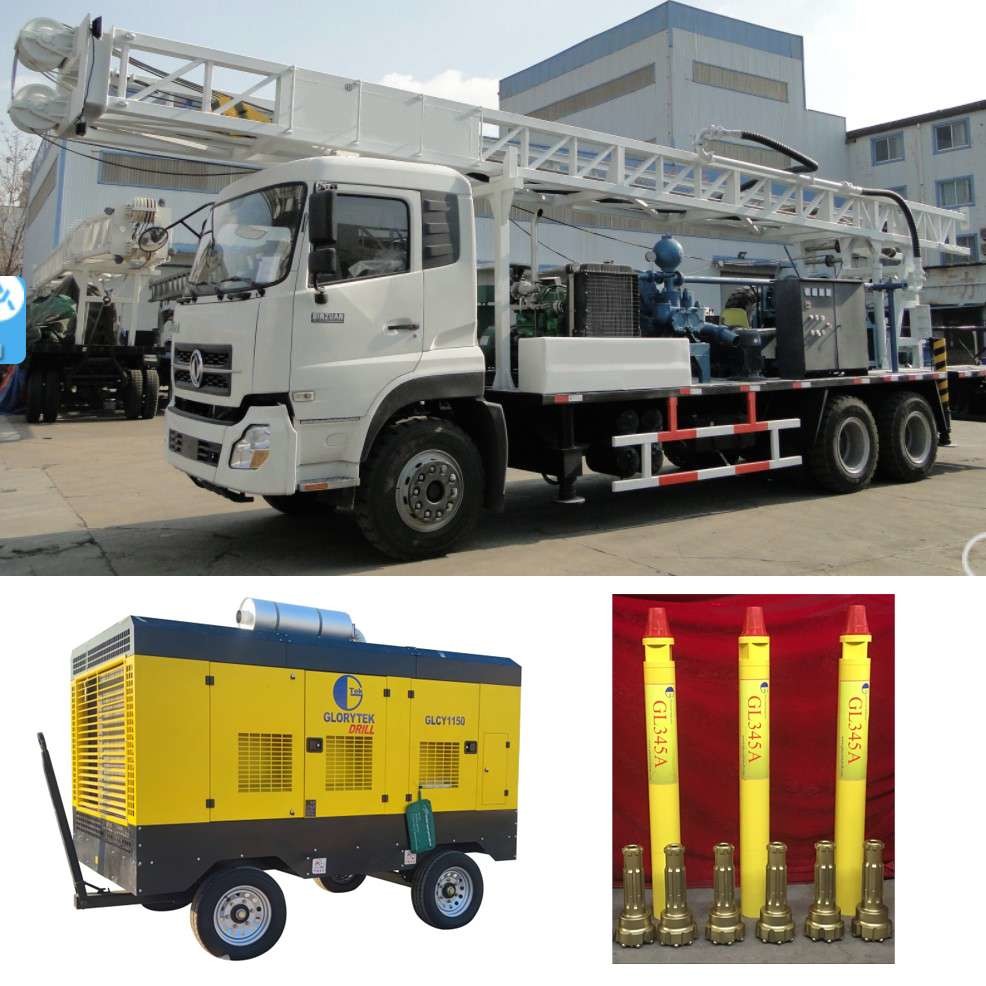

400m Truck Mounted Water Well Borehole Drill Rig Machines with Drilling Tools
Description:
DF400 400m Truck Mounted Water Well Borehole Drill Rig Machines work by direct circulation rotary method. This machine is equipped with the Dongfeng 6×4 special truck chassis and it has 11.00R20 steel wire off-road tread tires, which are good at off-road performance. We equip Yuchai YC6J220-46 diesel engine for this borehole drill rig machine, and the emission standard can meet the requirements of the national IV emission.
The DF400 400m Truck Mounted Water Well Borehole Drill Rig Machines adopt hydraulic system which adopts an open system design. It adopts separated getting on and off hydraulic control system, which is helpful to avoid misoperation. Moreover, we equip an oil temperature heater in winter and an oil temperature radiator in summer for the hydraulic system, which makes it suitable for different seasons and regions for heating and cooling of hydraulic oil.
Features:
1. durable truck chassis, Dongfeng 6×4 special truck chassis;
2. full hydraulic system, suitable for projects in different seasons and regions;
3. competitive price
Tehnical Parameter:
| Drilling depth (m) | 400 |
| Cylinder lifting force (kN/MPa) | 201/20 |
| Cylinder feed force (kN/MPa) | 53/10 |
| Main winch lifting force (single rope) (kN) | 40 |
| Main hook lifting force (2 wheels) (kN) | 160 |
| Tool hoisting force (single rope) (kN) | 20 |
| Lifting force of tool hook (single wheel) (kN) | 20 |
| Through hole diameter of turntable (mm) | 500 |
| Rotation speed of turntable (r/min) | 97; 85; 50; 32; 19; 11 |
| Turntable torque (kN.m) | 2.96; 3.38; 5.82; 9; 15.5; 27 |
| Effective height of drilling tower (m) | 11.8 |
| Drill tower load capacity (kN) | 260 |
| Kelly(mm) | 108×108×7500 |
