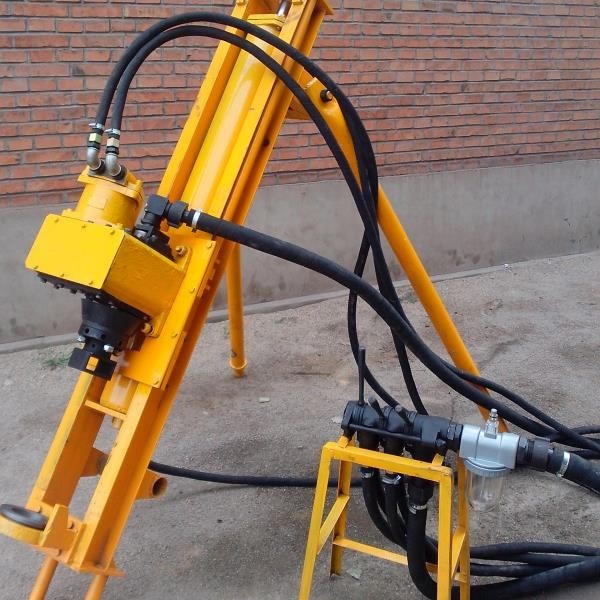

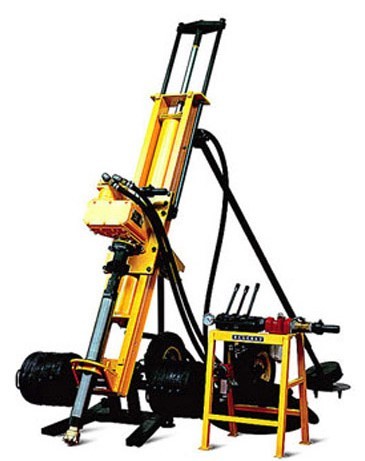

100b DTH Rock Drill Rig 25m Air Drilling Pneumatic Portable Drilling Rig
100B DTH drill rig is a kind of light and effective drill rig.
It is cheaper and easier to be operated and repaired, especially to be used in stonework drilling, such as water and electricity project, construction of roads and national defense engineering.
This machine can be applied for the rock hardness f=8-16 grade.
100B is pneumatic driven model, it could be matched with low pressure and medium pressure air compressor.
| Technical Parameters | |||||||||
| 100B/D Low Pressure | 100B/D Medium Pressure | ||||||||
| Rock Rigidity | f =8-16 | f =8-16 | |||||||
| Hole Diameter | 68-100mm | 68-100mm | |||||||
| Hole Depth | 20m | 25m | |||||||
| Air Pressure | 0.7-0.86MPa | 1.0-1.4MPa | |||||||
| Air Consumption | 9-12m3/min | 9-12m3/min | |||||||
| Feed Length | 1000mm | 1000mm | |||||||
| Rotary Rate | 110-160r/min | 110-160r/min | |||||||
| Size(L x W) | 2400 x 470mm | 2400 x 470mm | |||||||
| Weight | 195kg | 195kg | |||||||
| Water Consumption and Water Pressure | 8-12L/min, ＞air pressure 0.1-0.2Mpa | 8-12L/min, ＞air pressure 0.1-0.2Mpa | |||||||
| Tunnel | high 2.5m~3m,width≥2.5m | high 2.5m~3m,width≥2.5m | |||||||
| Angle | any angle | ||||||||
We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.
Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. Wee are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.
Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.
1. 100B/D Drilling machine is packed with wooden box.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 15-20 days after receiving payment. The drilling tools normally 3-5 days if in stock.
4. Shipping by sea, air or express are all available.
