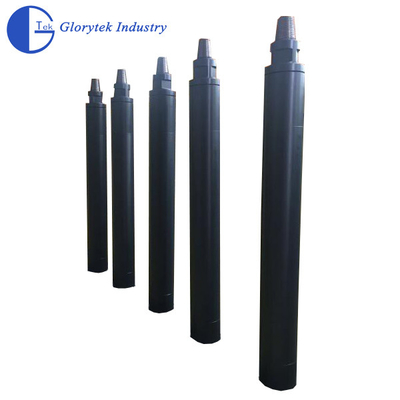

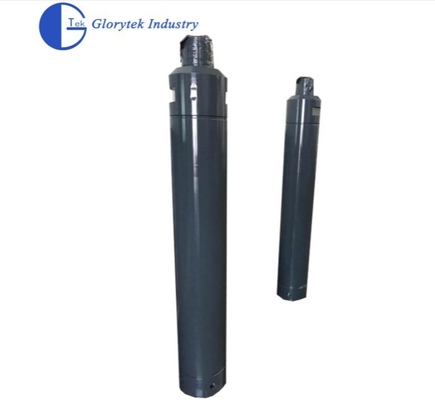

6'' 8'' 10''12'' DTH Drilling Hammers for Water Well Drilling and Hard Rock Drilling
1.Description:
-Higher Production
In broken and fractured ground conditions,will often out perform the conventional hammer in terms of penetration rates.
-Dry Sample
Even in certain water bearing stratas it is still possible to collect a dry sample because the cuttings(sample)are collected as they are formed through the face of the drill bit.
-Higher Sample Recovery
Because the sample is collected through the face of the drill bit there is no loss of sample when drilling through broken or fractured ground.And since the bit matched to the chuck size ,there is very little bypass of sample and recovery rates of up to 98% are generally achievable.
2.Applications:
DTH hammers are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
3.Specifications:
| ----Type and Technical Specification of High Pressure DTH Hammers---- | ||||||||||||
| Item | GL330 | GL335 | GL340A | GL345 | GL350 | GL355 | GL360 | GL380 | GL3120 | |||
| Drilling Dia. (/mm) | 82-85 | 90-93 | 105-130 | 105-130 | 130-152 | 130-152 | 152-305 | 203-350 | 302-508 | |||
| Hammer Length(mm) | 867 | 908 | 1052 | 1034 | 1387 | 1220 | 1450 | 1551 | 1934 | |||
| Outside Dia. (/mm) | 71 | 81 | 92 | 98 | 114 | 124 | 136 | 181 | 275 | |||
| Weight(kg) | 19 | 21.8 | 38 | 39 | 69 | 74 | 126 | 277 | 642 | |||
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | |||
|
Air Consumption (M3/Min.) |
3-12 | 4.3-14.2 | 3.5-18 | 3.5-15 | 5.7-18 | 6.5-18 | 8.5-25 | 12-31 | 14-45 | |||
| Torque(N.M) | 150 | 205 | 304 | 335 | 590 | 700 | 822 | 1560 | 2410 | |||
| Impact Frequency (Times/Min.) | ≥800 | 950-1500 | ≥800 | ≥800 | 810-1470 | 810-1500 | 820-1475 | 860-1510 | 980-1446 | |||
| Connection 1 | 48.8×4.2 | API 2-3/8 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 2-3/8 | API 3-1/2 | API 4-1/2 | API 6-5/8 | |||
| Connection 2 | 47-6 | 53-8 | 64-8 | 64-8 | 84-8 | 84-8 | 99.5-8 | 128-10 | 184-8 | |||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Related Product
We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
Packaging & Shipping
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: How can we choose a suitable DTH hammer?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: What is your payment terms?
A: We can accept T/T,L/C.
