GL90 DTH Drilling Hammer Rock Drill Tools CIR90 Low Pressure DTH Hammer
Glorytek can provide CIR series low pressure dth hammer and bits such as:CIR65,CIR70,CIR76,CIR80,CIR90,CIR110,CIR130,CIR150,CIR170. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.

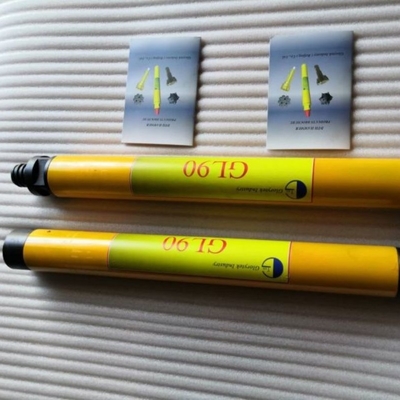

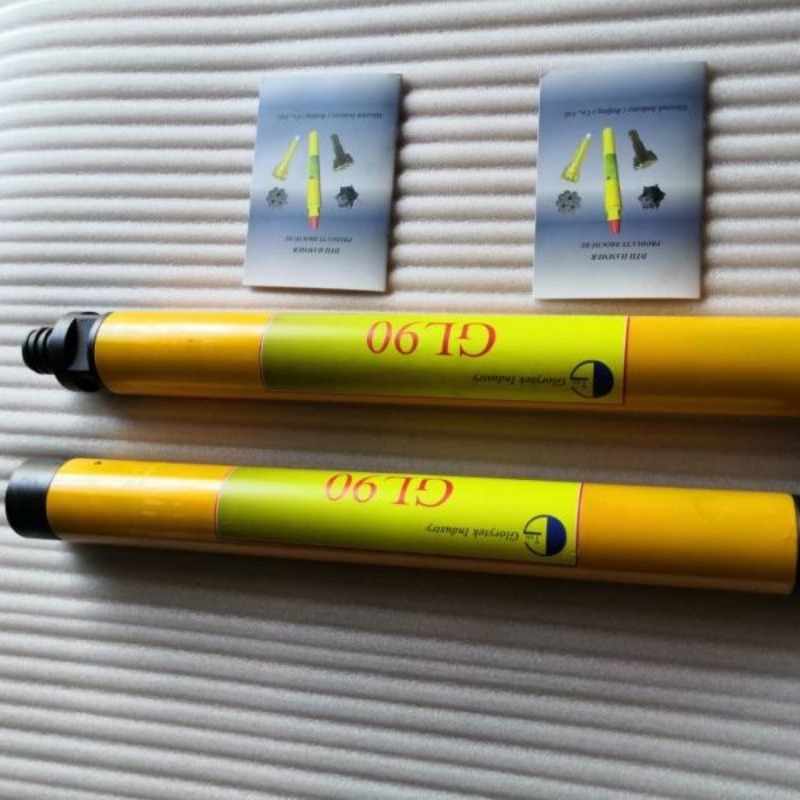

The CIR90 DTH drilling hammer is widely used for blast hole drilling and water well drilling project. Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
The characteristics are as follows:
Features of low air pressure series DTH Hammer:
1. Select high-quality materials, advanced manufacturing technology and reliable quality.
2. The weight of the piston and the bit is close, and it has the best momentum transmission.
3. The single impact force is large and the power consumption of crushing rocks is low.
4. The internal parts are all hardened, anti-wear, less failure and long working life.
5. The joint and the clamping sleeve are connected with the outer cylinder by thread, which is easy to disassemble.
| Item | GL90 |
| Drilling Dia.(ф/mm) | 90-130 |
| Hammer Length(mm) | 796 |
| Outside Dia.(ф/mm) | 80.2 |
| Weight(kg) | 20 |
| Working Pressure(Mpa) | 0.5-0.7 |
| AirConsumption(M3/Min.) | 6 |
| Torque(N.M) | 110 |
| Impact Frequency (Times/Min.) | ≥820 |
| Connection 1 | CIR90 |
| Connection 2 | ф54-6 |
DTH drilling hammer is used in blasting holes, guard holes, mountain reinforcement, anchoring and other engineering holes in mines, quarries, highways and other projects, geothermal air conditioning holes, water well holes and other fields.
1. With longer operating life
2. Excellent anti-wear properties
3. Easy to coperate, stable and reliable
4. Smooth with high efficiency
Packing: wooden box.
Delivery: Normally 5-7 days after down payment.
Shipping method: by express, by air or by sea
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
