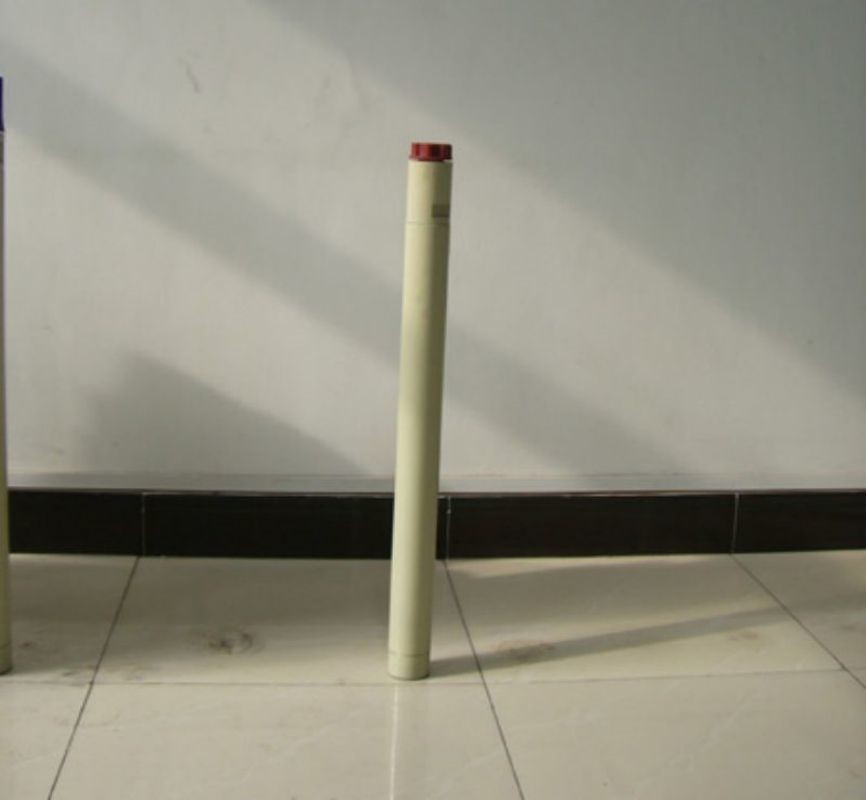

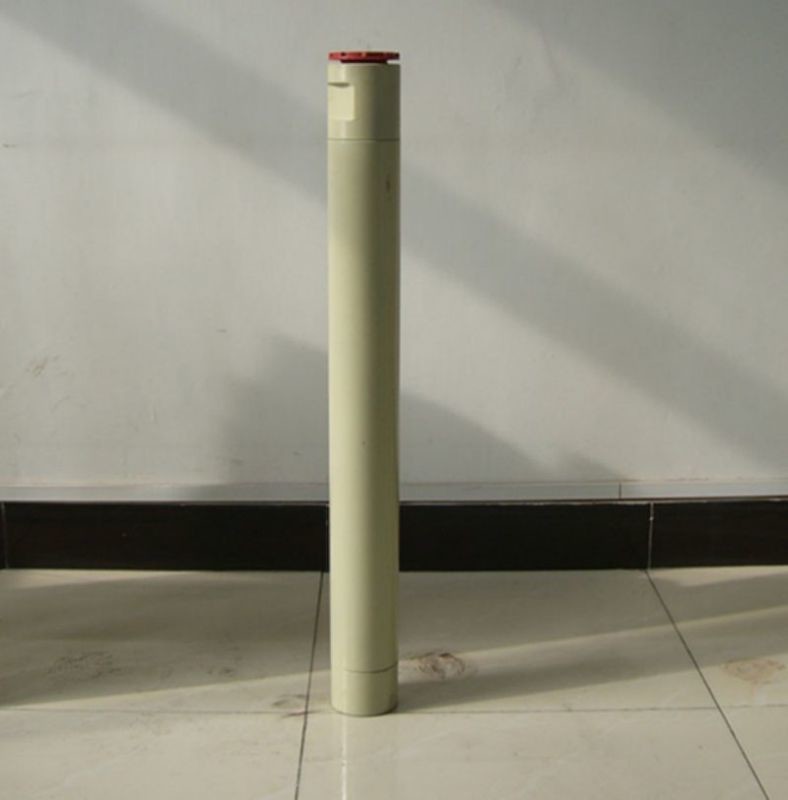

Middle Pressure Down the Hole Rock Drill DTH Drilling Hammer for Borehole Blasthole Drilling
DTH Drilling Hammer is one kind of basic drill equipmentfor drilling engineering. DTH Drilling Hammer also named as pneumatic impactor, pneumatic DTH, DTH Impacter.
Powered by compressed air medium, the use of compressed air energy to produce a continuous bottom of the hole impact load power tool. Compressed air and can double as wash Kong media. Pneumatic impactor with high pressure and low pressure, valve and valveless of the points. Usually pneumatic impactor directly connected with carbide drill bit stelidium way to impact crushed rock, low-speed rotary drilling without coring comprehensive.
Main Usage:
DTH Drilling Hammers are mainly used in hydrology and water well drilling, geological drilling without core, geological disaster prevention engineering and mine drilling and other fields. Suitable for gravel and hard rock applications, configure the special structure of the drill can also be used in the soft soil. ROP generally much higher than the hydraulic impactor drilling, but requires larger air compressor with capacity, greater fuel consumption, noise and dust pollution. Drilling depth by the groundwater level, water influence.
| Item | GL930 | GL4.5 |
| Drilling Dia. (ф/mm) | 90-120 | 110-150 |
| Hammer Length(mm) | 870 | 917 |
| Outside Dia.(ф/mm) | 80.5 | 98 |
| Weight(kg) | 25 | 36 |
| Working Pressure (Mpa) | 0.8-1.2 | 0.8-1.2 |
| Air Consumption (M3/Min.) | 6 | 11 |
| Torque(N.M) | 180 | 300 |
| Impact Frequency (Times/Min.) | ≥700 | ≥800 |
| Connection 1 | External API 2- 3/8” | Inner API 2- 3/8” |
| Connection 2 | ф54-6 | ф65-6 |
Packing: standard exporting packing.
Delivery: Normally 5-7 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a company mainly engaged in drilling equipments and tools. With over 20 years experience, our commitment to excellence ensures a reliable product that will perform every time. We utilize the latest technologies in engineering to produce cutting edge designs.
We take pride in being one of the top supplier of DTH bits and hammers in China. We manufacture thousands of different configurations based on our customers' specifications. We have achieved and adhere to the strict standards set forth to us by the ISO 9001:2008. We offer an extensive range of high quality DTH bits and hammers to customers all around the world and wins high praise for the good performance of our DTH bits and hammers.
