3-1/2" Water Well Drill Rod 89mm Water Well Drill Pipe For Borehole Drilling
Drill pipes is mainly used in the drilling blasting hole, guardrail hole, mountain reinforcment, anchoring and other engineering holes in mines, quarris, high ways, railways and so on.It has a long service life.and the y’re also subjected to high bending stress,transferring the percussion energy from rock drill to drilling bit and then into the rock.
3 1/2" Drill rod is widely used for borehole water well drilling. We can supply it with 1m, 2m, 3m, 4m, 5m, 6m etc.
The thread is normally 2 3/8reg or 2 3/8IF.
The standard wall thickness is 6.45mm.
3 1/2" drill rod is regular products, it is normally in stock.
We can process different length,diameter and wall thickness and material of API standard thread rod,we also can design and manufacture drill pipe according to customers' requirement of the material, length, wa; thickness and connection thread.
| Size(inch) | Weight Designation | Calculated Plain-End weight | Outside Diameter | Wall Thickness | |||
| Lb/ft | Kg/m | inch | mm | inch | mm | ||
| 3 1/2 | 9.5 | 8.81 | 13.12 | 3.5 | 88.9 | 0.254 | 6.45 |
Water Well Drill Rod is mainly used in various drilling constructions such as gas drainage (mining) holes, exploration and drainage holes, and grouting holes in coal mines with good underground formation conditions. It can also be used in drilling construction in mining, geology, hydropower and other industries.
The rod has high strength and is suitable for both conventional drilling and impact rotary drilling.
1. The Water Well Drill Rod body is welded by friction welding process, the overall mechanical performance of the drill pipe is good, and the service life is long.
2. The Water Well Drill Rod joint has high thread strength and good anti-stick performance.
3. Hardness and wear resistance combined alloy stell,supplied by national top level specialsteel manufacturer
4. Joint of pipe upset forged,Better wear resistance due to increased hardness
5.Joint and pipe are friction-welded,and heat-treated the end-pieces for optimum durability.
6. pipe chemistries are matched to our quench and temper heat treatment processes achieving excellent impact values
IU:Internal upset;EU:External upset

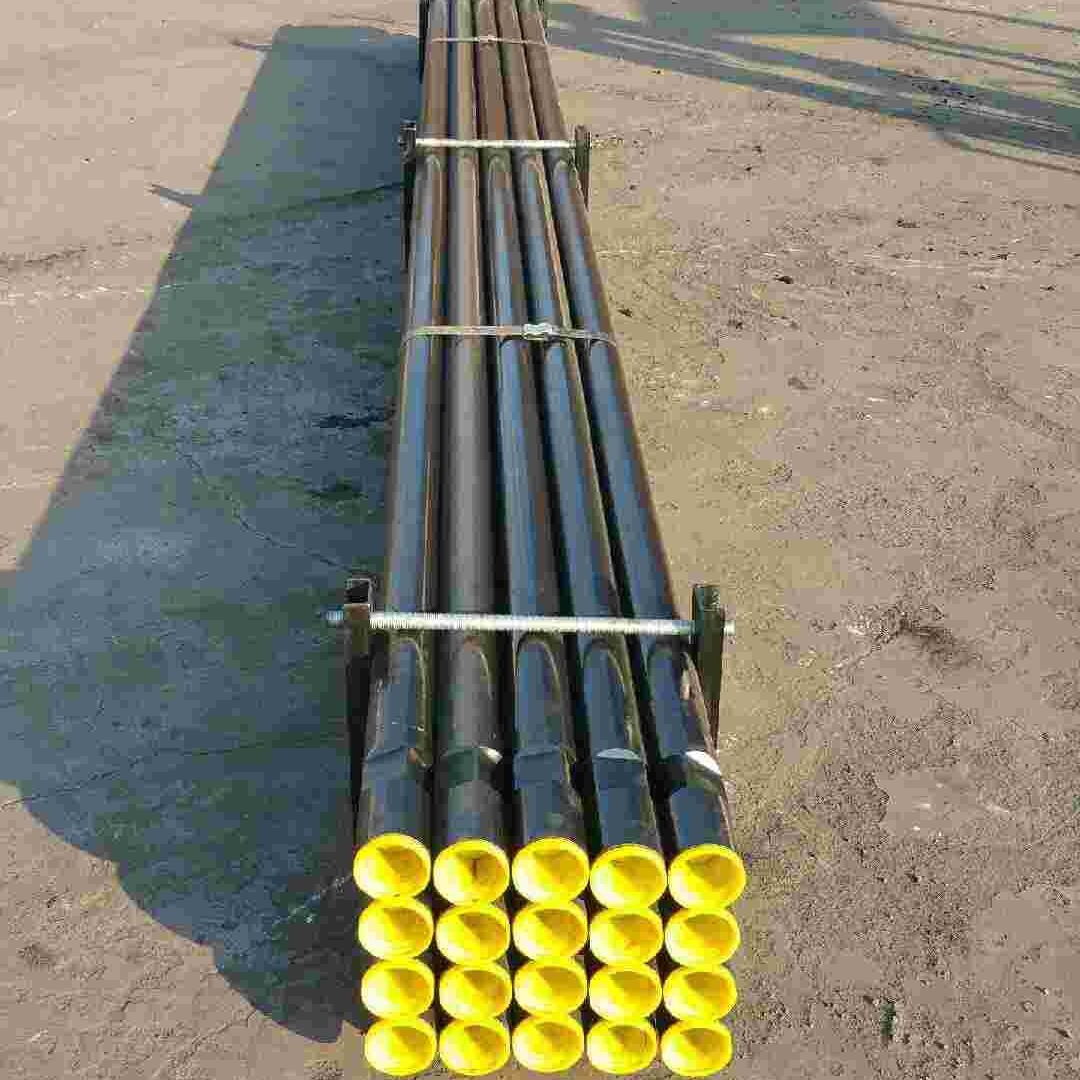

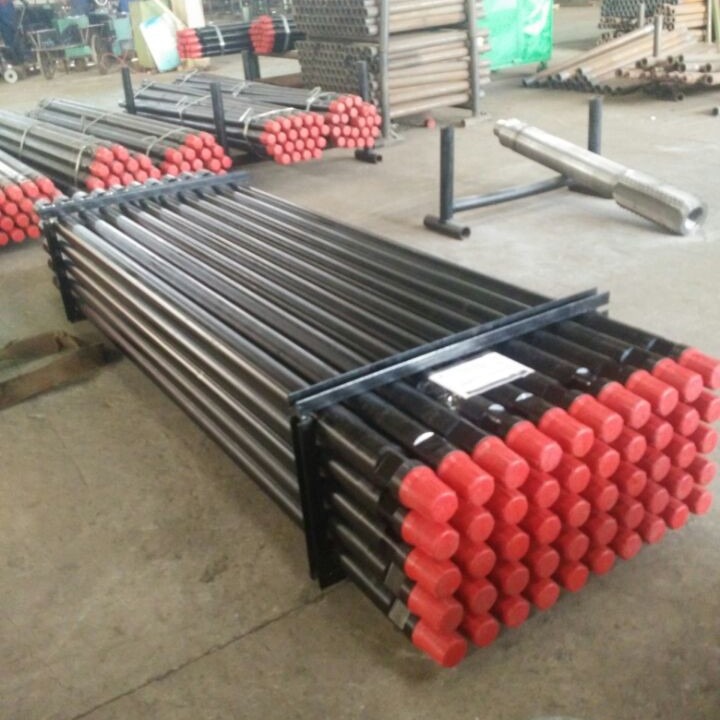

Packing: The Water Well Drill Rod is normally packed by wooden boxes, or steel frame.
Delivery: Normally 7-10 days after down payment.
Shipping method: by sea or by train.
All kinds of products are inspected according to API standard, ensure the product quality stable and reliable.
Glorytek has equipped with magenta test, ultrasonic test, thread test, right alignment test, hardness test and so on inspection and testing equipment, to guarantee each process under surveillance on paper.
Glorytek with advanced modern laboratory of materials, chemical composition analysis. Chemical properties test and metallographic analysis, so as to ensure the reliability of the physical-chemical properties of the product
Glorytek owns a professional qualifications, deepen the product quality inspection team with API standard.
