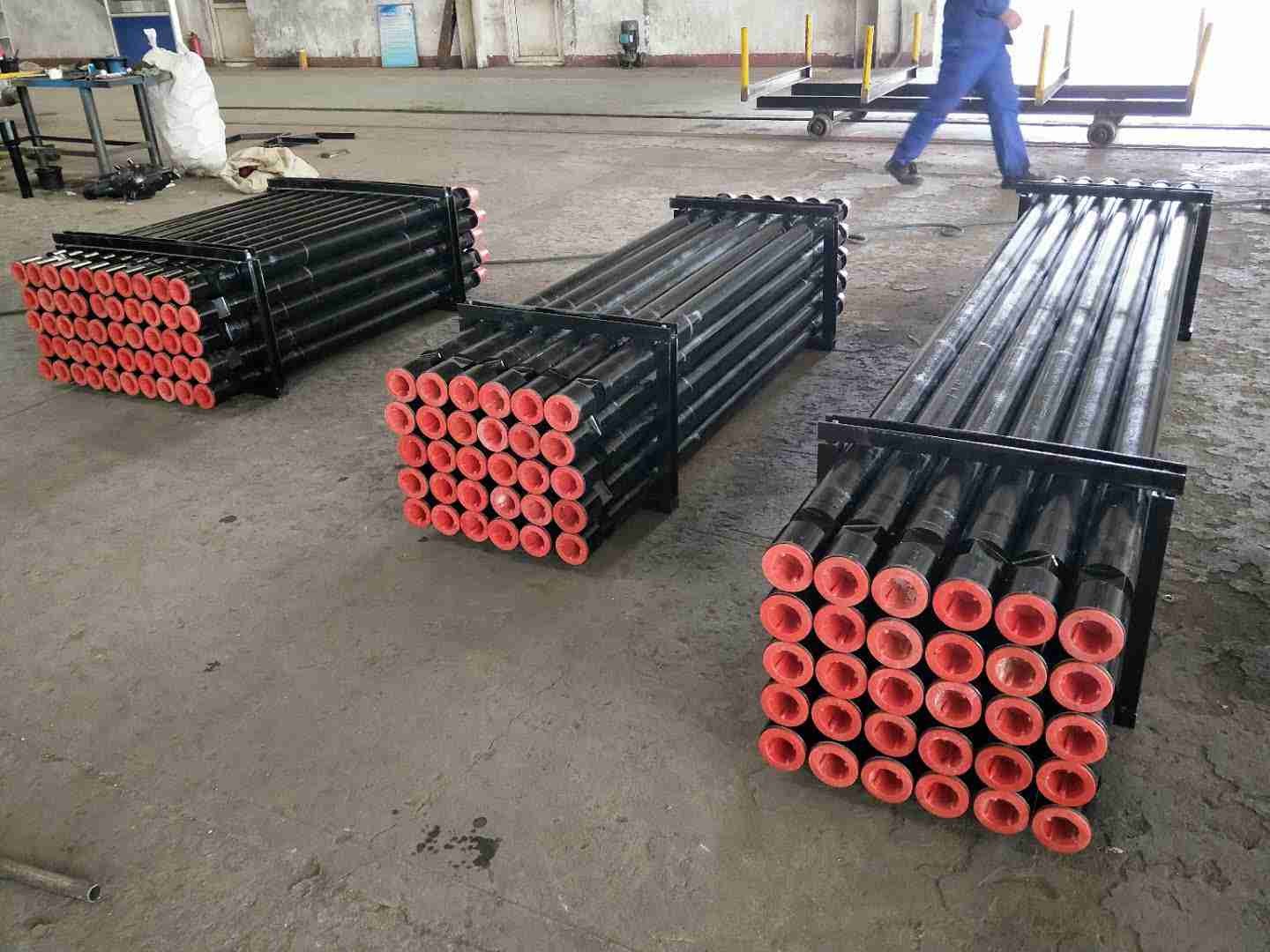

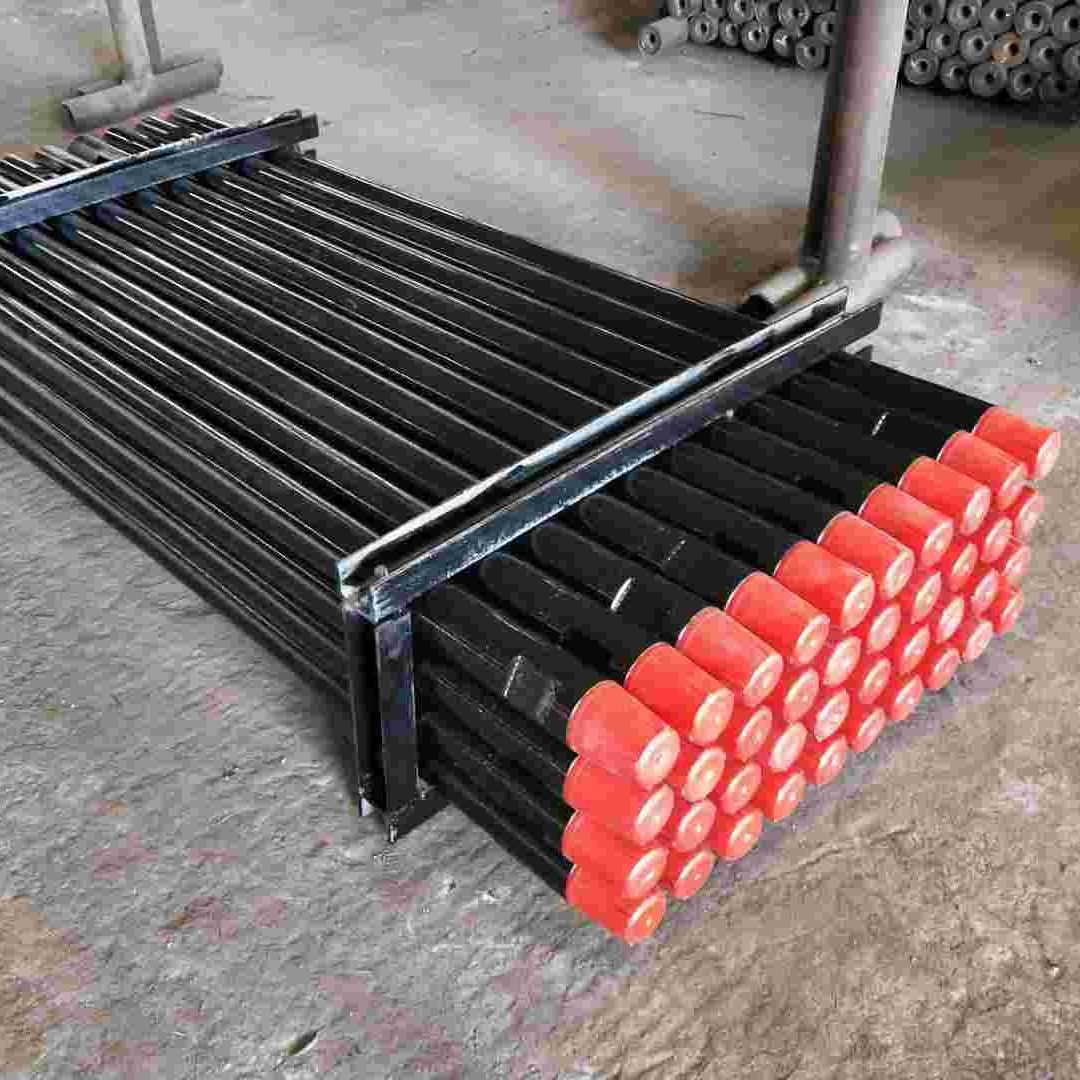

3m 76mm 6.5mm Wall Thickness Water Well Drill Rod With 2-3/8 API REG Thread
Water Well Drill Rods basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of Water Well Drill Rods are needed, basically, smaller borehole hole diameter need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.
| Outer Diameter | Thread | Wall Thickness | Length | Wrench Flat | Weight |
| mm | mm | mm | mm | Approx Kg | |
| 76 | 2-3/8 API REG | 5.5 | 1000 | 57 | 17 |
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
| 1000 | 65 | 17 | |||
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
| 6.5 | 3000 | 46 | |||
| 4500 | 56 | ||||
| 6000 | 73 |
Packing: Standard Exporting Packing for Water Well Drill Rod
Delivery: Normally 10-15 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our company has advanced friction welding, drill pipe thickening equipment and a variety of molding technology and processing equipment. According to the customer's requirements, we can produce various specifications of the drill pipe and connecting parts of the United States standards. At the same time, we are also equipped with a set of physical and chemical testing machine on the hydraulic pressure, heat treatment, no damage, etc. to ensure the quality of products. At the beginning of the establishment, we passed the certification of CQC and ISO9001.
Through years of manufacturing experience and customer's use of reflection, the application, safety and reliability of the domestic industry of our products have reached a leading level. We adhere to the "quality first, reputation first" business philosophy. We do our best to meet the customers' need .We are very pleased to establish a long-term business relationship with you on the basis of mutual benefit. We believe that we will be your best partner in China.
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
