Directional Drilling Equipment 73mm 5 Stages Downhole Mud Motor with Fix Bend

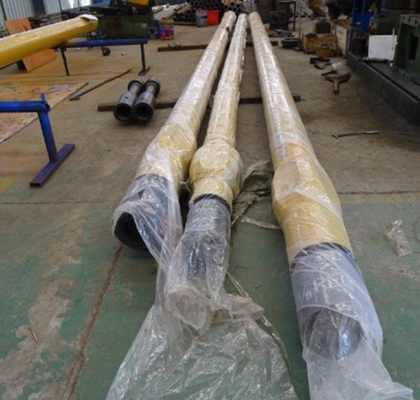

Downhole motor is composed of five assemblies of bearing, power section, coupling, anti-drop and bypass valve. Our company has realized the mass production and large-scale application of screw drilling tools with equal wall thickness.
The Downhole Mud Motor produced by our company can meet different working conditions such as high temperature resistance and oil resistance. For directional and horizontal well drilling in medium-hard formations, the screw drilling tool with equal wall thickness can withstand greater WOB and provide greater output power. It has the characteristics of high power, large torque, strong directional ability, and strong adaptability to high temperature wells.
Features of Extended Down-hole Motor
The torque is increased by 30% to 60% compared with standard down-hole motors; the transmission shaft is lubricated by drilling fluid; available in vertical, single- bend and double-bend types; maximum working temperature: 120°C.
Features of High Deflection Down-hole Motor
The unique structure makes the motor shorter, the bending point closer to drill bit, and higher build-up rate.
| 钻具型号 | 4LZ73×7.0Ⅳ | 5LZ73×7.0Ⅲ | 5LZ73×7.0Ⅳ | 5LZ73×7.0V | |
| Model | 2874540 | 2875630 | 2875640 | 2875650 | |
| 适合井眼 | in | 3 3/8– 4 3/8 85.7-111.1 | 3 3/8– 4 3/8 85.7-111.1 | 3 3/8– 4 3/8 85.7-111.1 | 3 3/8– 4 3/8 85.7-111.1 |
| Bit Size | mm | ||||
| 外径 | in | 2 7/8 76 | 2 7/8 74 | 2 7/8 74 | 2 7/8 74 |
| OD | mm | ||||
| 可调角度 | ° | 0-3 | 0-3 | 0-3 | 0-3 |
| ABH | |||||
| 马达头数 | 4:05 | 5:06 | 5:06 | 5:06 | |
| Lobe | |||||
| 马达级数 | 4 | 3 | 4 | 5 | |
| Stages | |||||
| 马达压降 | MPa | 4.0 580 | 3.0 435 | 4 | 5 |
| Pressure | PSI | 580 | 725 | ||
| 流量范围 | L/s | 2-3.5-5 32-56-80 | 2-5-7 32-80-111 | 2.7-6.2-9.6 43-98-152 | 3-6-9 48-96-144 |
| Flow Rate | GPM | ||||
| 每转排量 | L/r | 0.68 5.6 | 0.8 4.7 | 1.2 3.2 | 1.07 3.5 |
| Flow Per Revolution | r/gal | ||||
| 钻头转速 | rpm | 176-308-441 | 148-370-518 | 135-310-480 | 168-336-505 |
| Bit Speed | |||||
| 工作扭矩 | N·m | 340 251 | 320 236 | 525 387 | 690 510 |
| Torque | Ft-lbs | ||||
| 最大扭矩 | N·m | 510 376 | 480 354 | 788 580 | 1050 775 |
| Max.torque | Ft-lbs | ||||
| 输出功率 | kw | 8-20 10.7-20.7 | 4.8-17 6.4-22.5 | 9.7-34.5 13-46 | 15-43 20.1-57.6 |
| Output Power | HP | ||||
| 推荐钻压 | KN | 15 3300 | 15 3300 | 15 3300 | 15 3300 |
| Weight on Bit | lb | ||||
| 最大钻压 | KN lb | 20 4400 | 20 4400 | 20 4400 | 20 4400 |
| Max. Weight on Bit | |||||
| 连接螺纹 | Upper(Box) | 2 3/8 TBG | 2 3/8 TBG | 2 3/8 TBG | 2 3/8 TBG |
| Connection (REG) | |||||
| Lower(Box) | 2 3/8 | 2 3/8 | 2 3/8 | 2 3/8 | |

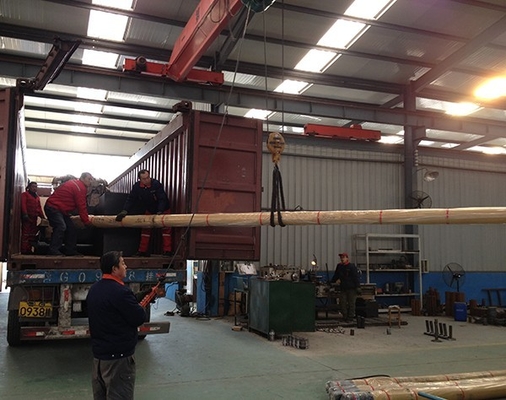

Packing: Standard Exporting Packing for Downhole Mud Motor
Delivery: Normally 10-15 days after your advanced payment.
