Name: 3nb Series Piston Well Drilling Mud Pumps For Drilling Rigs
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: 3nb Series

Screw Number: Option

Screw Suction Method: Option

Pump Shaft Position: Option

Application: Drilling Rig

MOQ: 1set

Transport Package: Seaworthy Package

Driven: Diesel Engine

Maximum Working Pressure: 5000psi

Highlight:

3nb series Piston Pump

Mud Pump Piston Pump

Well Drilling Mud Pump

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 25-35days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 700 piece per month

Gallery

3nb Series Piston Well Drilling Mud Pumps For Drilling Rigs

Product Description

3NB series mud pump for drilling rig

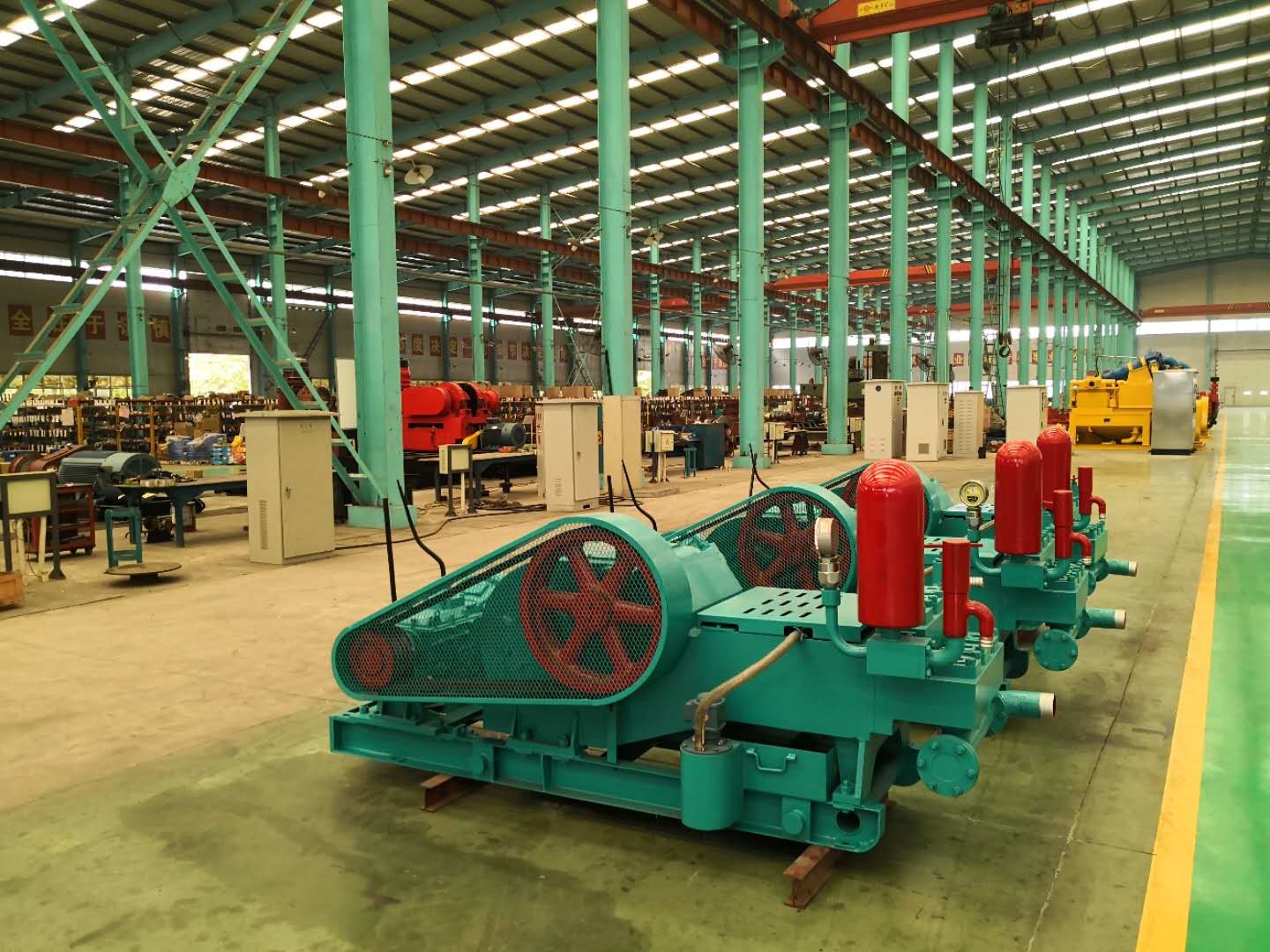

Product Picture

3nb Series Piston Well Drilling Mud Pumps For Drilling Rigs 0

Technical Parameter

Technical Specifications
Model	Type	input Power	Motive power	Rated pump speed	Stroke length	Gear Ratio
3NB-350	Single Action Triplex	350hp	6190ZC-1(diesel engine) Y400-6.28KW(motor)	120 Impact/min	180	4.483
Rated input speed(Rev/min)	Continuous speed(Rev/min)	Inhalation diameter	Discharge pipe diameter	Dimensions(mm)		Weight
582.8	540	203mm	76mm	310020802015		8.058t

Pump stroke	Bore(mm)
	90	100	110	120	130	140
Impact/min	Displacement(L/S)
130	7.44	9.18	11.1	13.23	15.52	18.01
120	6.87	8.48	10.26	12.21	14.33	16.62
110	6.29	7.77	9.4	11.19	13.14	15.23
100	5.72	7.06	8.55	10.17	11.94	13.84
Pump pressure(Mpa)	31	25	20.8	17.5	14.9	12.8
Mechanical efficiency by 90% 100% volumetric efficiency

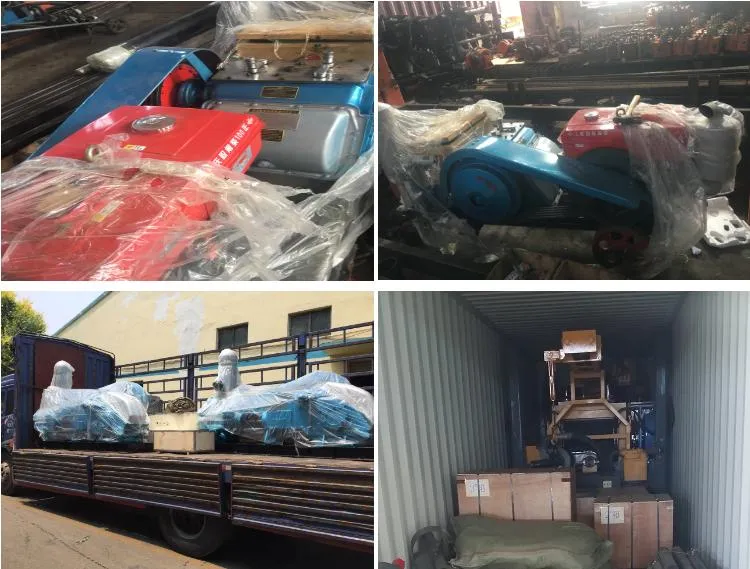

Packing and Transport

Mud Pump 3nb-350 Single Action Triplex Back and Forth Piston Pump Well Drilling Products

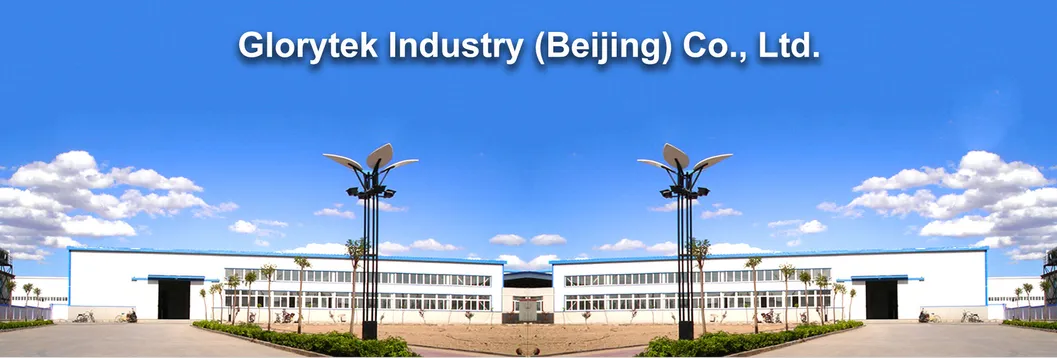

Company Profile

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Mud Pump 3nb-350 Single Action Triplex Back and Forth Piston Pump Well Drilling Products

Mud Pump 3nb-350 Single Action Triplex Back and Forth Piston Pump Well Drilling Products

After-sale Warranty

Warranty: (1)Within the period of the first year after delivery, the main parts of mud pump are guaranteed to be supplied free of charge once the problem caused by the quality issue. (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account. (3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?

A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
