Name: 80/220/320m Portable Diamond Core Drill Rig / Core Drilling Rig
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Core Drilling Rig

MOQ: 1set

Model NO.: GL300E

Condition: New

Transport Package: By Sea

Production Capacity: 500pieces Per Year

Drill Dia: BTW, NTW,HTW, PQ

Types: Portable Exploration Drilling Rigs

Drilling Depth: 300 M

Type: Full Hydraulic Exploration Drilling Rigs

Highlight:

320m diamond core drill rig

Portable diamond core drill rig

Portable Diamond Core Drilling Rig

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 25-35days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500 set per month

Gallery

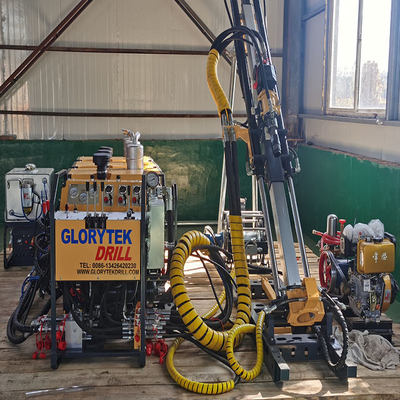

80/220/320m Portable Diamond Core Drill Rig / Core Drilling Rig

Product Description

Portable Core Drilling Rig

Product Specification

Model	GL300E	GL500E	GL800E
Drilling Depth
B	320m	580m	800m
N	220m	380m	600m
H	80m	180m	260m
Note: The drilling depth is based on the theoretical value, and the specific drilling depth capability is determined by the actual working conditions and process methods
Power System
Diesel Engine	V2410T X1	V2410T X2	V2410T X3
Power	41kw	82Kw	123Kw
Rotating Speed	3000rmp	3000rpm	3000rpm
Electrical System	12V	12V	12V
Hydraulic System
Main Pump	17MPa	21MPa	21MPa
Auxiliary Pump	15MPa	17MPa	17MPa
Hydraulic Oil Cooling	Air cooling/water cooling	Air cooling/water cooling	Air cooling/water cooling
Feeding System
Feeding Stroke	1.8m	1.8m	1.8m
Feeding Force	45kN	55kN	65kN
Lifting Force	90kN	110kN	130kN
Drilling Angle	45°-90°	45°-90°	45°-90°
Lifting Speed	114m/min	114m/min	114m/min
Drill Pipe Length	1.5m	1.5m	1.5m
Rotary Head
Power	Hydraulic Motor	Hydraulic Motor	Hydraulic Motor
Drive	Spindle Drive	Spindle Drive	Spindle Drive
Suitable Drill Pipe(max)	114mm	114mm	114mm
Max. Rotating Speed	1200rpm	1200rpm	1200rpm
Max. Torque	580Nm	680Nm	680Nm
Wireline Winch
Wire Rope Capacity	500m	800m	800m
Lifting Tension	Empty Rope Drum: 10.4kN	Empty Rope Drum: 11.9kN	Empty Rope Drum: 11.9kN
Lifting Tension	Full Rope Drum: 4kN	Full Rope Drum: 5kN	Full Rope Drum: 5kN
Lifting Speed	90m/min	114m/min	114m/min
Drill Pipe Clamp
Max. I.D	114mm	114mm	114mm
Clamping Capacity	13000kg	13000kg	13000kg
Suitable Drill Pipe(O.D)	54mm-114mm	54mm-114mm	54mm-114mm
Core Diameter(O.D)	36mm-85mm	36mm-85mm	36mm-85mm
Mud Pump Unit( Optional)
Mud Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump
Drive Type	Independent Drive	Independent Drive	Independent Drive
Flow And Pressure	100Lpm, 20bar	120Lpm, 40bar	120Lpm, 40bar
Water Supply Unit(Optional)
Water Supply Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump
Drive Form	Diesel Engine(7.3KW)	Diesel Engine(7.3KW)	Diesel Engine(7.3KW)
Flow And Pressure	100Lpm, 70bar	100Lpm, 70bar	100Lpm, 70bar
Drill Rig Weight
Power Unit	180kg *1	180kg *2	180kg *3
Operation Unit	120kg	120kg	120kg
Oil Tank Unit(Full Load)	120kg	130kg	130kg
Mud Pump Unit( Optional)	50kg	50kg	50kg
Working Weight( about)	1040kg	1200kg	1200kg
Max. Disassemble Part QTY	10	12	12

Main application

Drilling wells for urban and rural life
Drilling wells for agricultural irrigation and industries
Drilling for geotechnical survey
Drilling construction engineering holes
Drilling geothermal pump wells 80/220/320m Portable Diamond Core Drill Rig / Core Drilling Rig 0

Related Products of Geological Core Sample Drilling Rig for geotechnical survey

GL-II Truck Water Well Drill Rig

GL-II Trailer Drill Rig

YTR150 Rotary Drill Rig

DTH Hammer

DTH Drill Bit

Drill Rod

Packing and Transport

Packing: Seaworthy Packing

Delivery: about 30 days after your down payment.

Company Profile

Glorytek Industry (Beijing)Co.,Ltd.,

Glorytek Industry (Beijing) Co., Ltd. Is a professional manufacturer and supplier of top quality drilling equipment and drilling parts with over 20 years experience. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per specified requirements from our clients.
Our products are widely used in the scope of water well drilling project, geological exploration and SPT, anchor grouting project, side slope protection engineering, oil and gas engineering, rock drilling and blasting operations, hdd( horizontal directional drilling) for city construction pipeline laying project etc.
Our factory covers an area of 250,00 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. Over 200 sets and more than 600 employees.

Customer Photos

Certifications

Latest Exhibition

After-sale Warranty

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools
would be about 3-5 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?

A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
